Enterprise Flash Controller - ONFI/Toggle (Silicon Proven IP for Altera Devices)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Mobiveil Inc.

Select

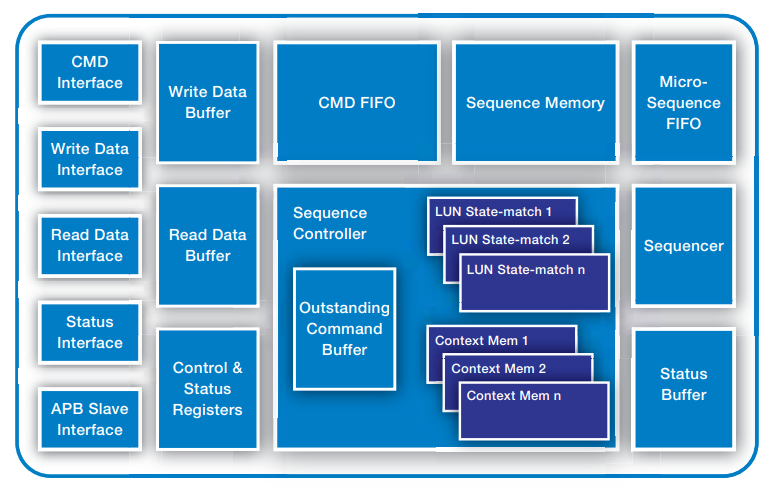

Highly configurable Enterprise Flash Controller for ONFI 5.2 and Toggle NAND with NV-LPDDR4 mode, device-independent RTL, and software-defined command sequencing for high-throughput SSD designs. EFC provides 16–256-bit datapaths (PHY 16/32-bit), supports volume addressing, suspend/resume, two-pass programming, multi-plane & async plane-read, and can run a UI asynchronous to the flash interface. Per-device or wired-OR Ready/Busy is configurable. Up to 256 LUNs/channel with virtual LUNs to right-size gate count; independent, pipelined command/data/report interfaces allow multiple in-flight commands to different CS/LUNs. Delivered as technology-independent RTL with complete HVL/UVM testbench, docs, and FPGA prototype netlist.

View Partner Website

Partner Product Page

Contact Now

Contact Mobiveil Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Data path widths support of 16 bits to 256 bits PHY Data path width - 16 bit , 32bit
Supports ONFI 5.2 specification with NV-LPDDR4 mode of operation
Device independent RTL can work with any NAND device with just software reprogramming
Configurable Ready Busy Signal Configuration (Per device or Wired OR)
Supports volume addressing, suspend/resume functions, two pass programming, multi plane and asynchronous plane read commands
Supports User Interface to be Asynchronous with Flash Interface
Supports up to 256 LUNs per channel
Supports virtual LUNs feature to limit the gate count of EFC based on maximum possible simultaneous LUN operations in the end user system.
Configurable warmup cycles through CSR register
DBI support
Support for SCA Protocol
Transaction based user interface and Software definable address scheme

Offering Brief

Device Family	Arria® II GX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, eASIC™ N3X Devices, eASIC™ N3XS Devices, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	No
Demo	No
Compliance	No
Development Language	Encrypted Verilog, Verilog
