USB 20Gbps Device Controller (USB32SF)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

System Level Solutions, Inc

Select

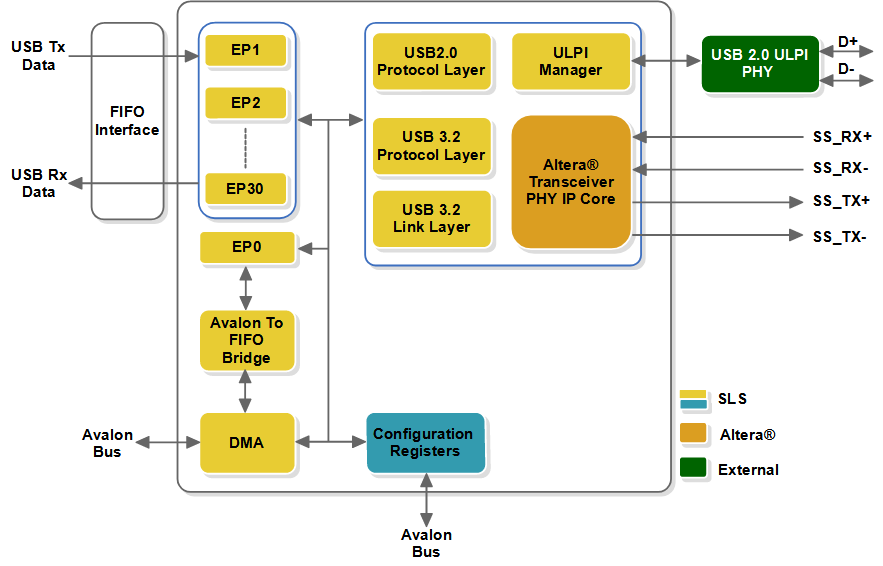

Leveraging the benefits of USB 10Gbps and 5Gbps device controller, USB 20Gbps is designed using the FPGA built-in transceiver. It is a one-stop solution for all USB requirements ranging from USB 3.2 to USB 2.0. It supports SuperSpeed+ (SSP x2/x1), SuperSpeed (SS), High Speed (HS) and Full Speed (FS) communication modes. The Core architecture allows to use minimal pins from FPGA for USB 3.2 interface with better stability. It provides USB 3.2 backward compatibility with inbuilt transceiver and USB 2.0 backward compatibility using an external USB 2.0 ULPI PHY.

It has been designed to provide simplicity and flexibility along with highest throughput i.e. >16Gbps. Avalon interface allows to manage the control transfer using software, provides flexibility, while FIFO interface allows to transfer the data over non-control endpoint ensuring highest throughput.

View Partner Website

Partner Product Page

Contact Now

Contact System Level Solutions, Inc

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports USB 20Gbps, USB 10Gbps and USB 5Gbps.
Uses Transceiver as a PHY layer and thus eliminates need for external PHY for USB 3.2.
Supports High Speed (HS) and Full Speed (FS) modes.
Provides ULPI interface to interact with external USB 2.0 PHY.
Ready to use component.
Simple FIFO interface to transfer data over non-control endpoint.
Capable to support up to 31 endpoints (1 default control endpoint, 15 IN endpoints and 15 OUT endpoints).
Allows to select number of buffers per endpoint based on the requirement.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	No
Evaluation License	Yes
Design Examples Available	Yes
Demo	Yes
Compliance	No
Latest Quartus Version Supported	25.1.0
OS Support	Windows,Linux
Development Language	Encrypted Verilog, Verilog
