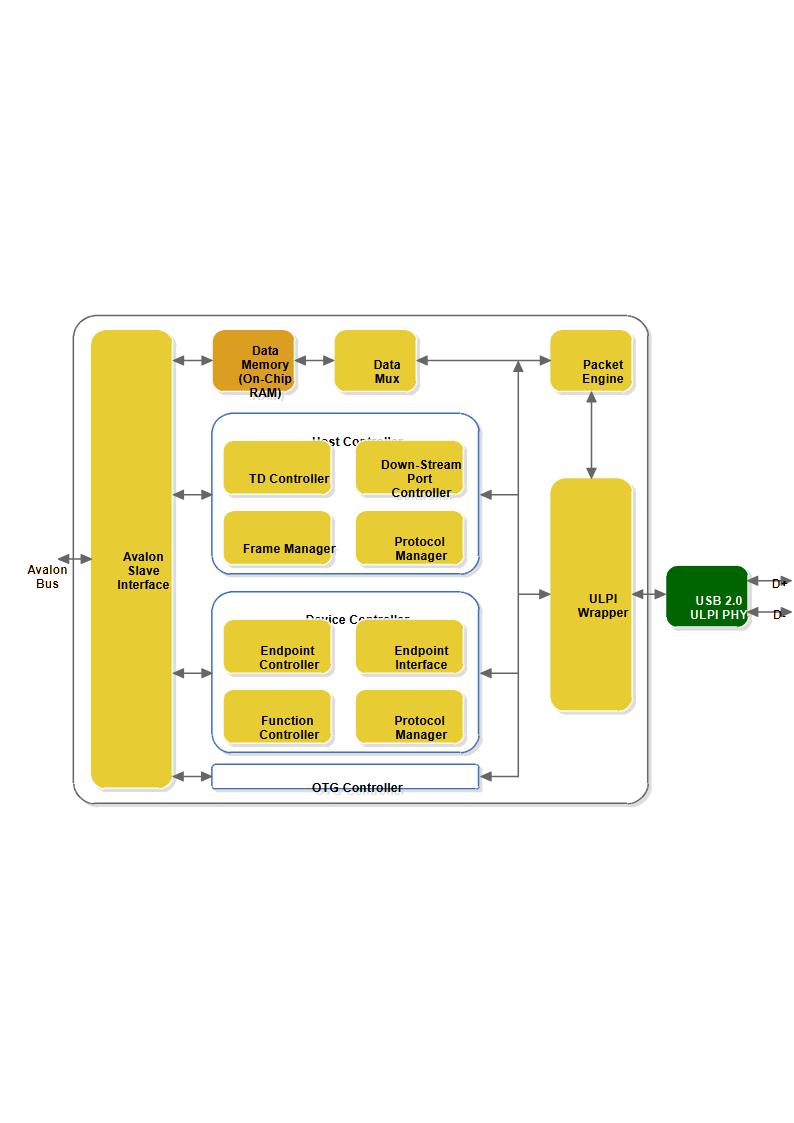

USB 2.0 On-The-Go (OTG) IP Core is a 32-bit Avalon interface compliant core and supports ULPI interface. It supports both USB Host and USB Device peripheral functionality. While acting as USB Host, it supports High Speed (HS), Full Speed (FS) and Low Speed (LS) modes. While acting as USB Device peripheral, it supports High Speed (HS) and Full Speed (FS) modes.

IP core has been implemented in Verilog HDL and its functionality has been verified using different test cases in simulation environment as well as on hardware. It is provided as Platform Designer (formerly Qsys) Ready component and hence can be easily integrated in Platform Designer system.

View Partner Website

Partner Product Page

Contact Now

Contact System Level Solutions, Inc

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports UTMI + Low Pin interface (ULPI) interface.
Supports Asynchronous Avalon clock interface
Configurable Memory depth.
Supports software controlled PHY register access.
Configurable to use as HOST only mode or DEVICE only mode.
Ready to use component for Platform Designer.
Meets Design Assistant guidelines.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	Yes
Compliance	Yes
Latest Quartus Version Supported	25.1.0
OS Support	Windows,Linux
Development Language	Encrypted Verilog, Verilog
