FLIK FPGA Client Innovation Kit

Terasic Inc.

Select

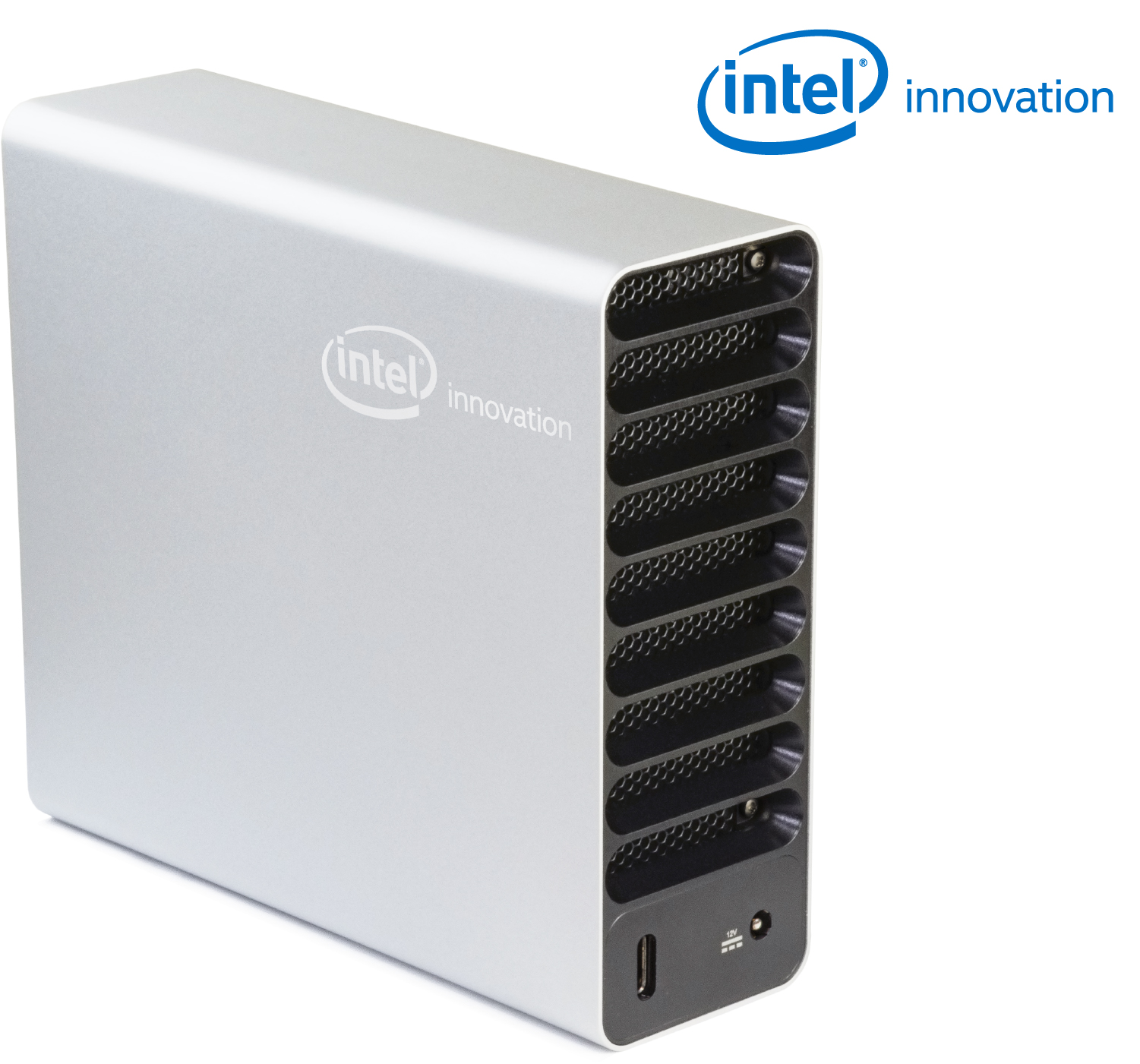

FLIK takes advantage of the powerful Intel® Arria ® 10 FPGA to enable higher speed data processing. The kit is armed with 8GB DDR4-2133 on-board memory, providing around 4GB data transfer via PCIe Gen 3 interface between FPGA and laptops or Host PC via Thunderbolt™ 3 port. Also, closely packed in an aluminum body with advanced thermal solution, FLIK takes care of the heat dissipation dynamically.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • High-Performance Arria 10 GX FPGA
  • High-Speed Thunderbolt™ 3 Connectivity
  • High-Bandwidth DDR4 Memory
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 10AX115N3F40E2SG
Form Factor 120x40.1x106.6mm
Power 12V
Interfaces PCIe Gen3x4 via Thunderbolt 3 Port
Memory 4GB DDR4 x2
Connectors Thunderbolt 3 Port x1
Switches & LEDs None
Latest Quartus Version Supported 19.2.0

User Manual

Desgin Examples

Ordering Information

P0642

from Direct

$3250.00

Order Now
