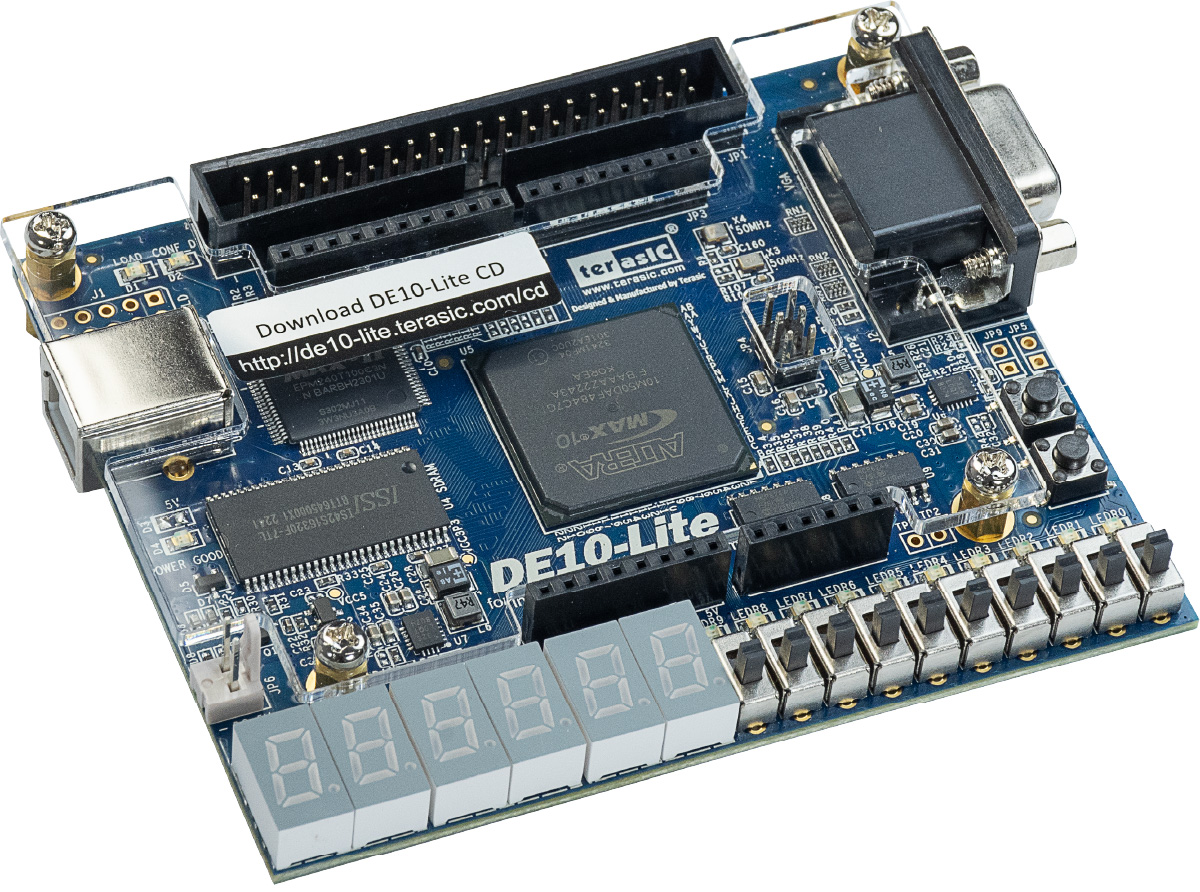

MAX® 10 Device Family - DE10-Lite Board

Terasic Inc.

Select

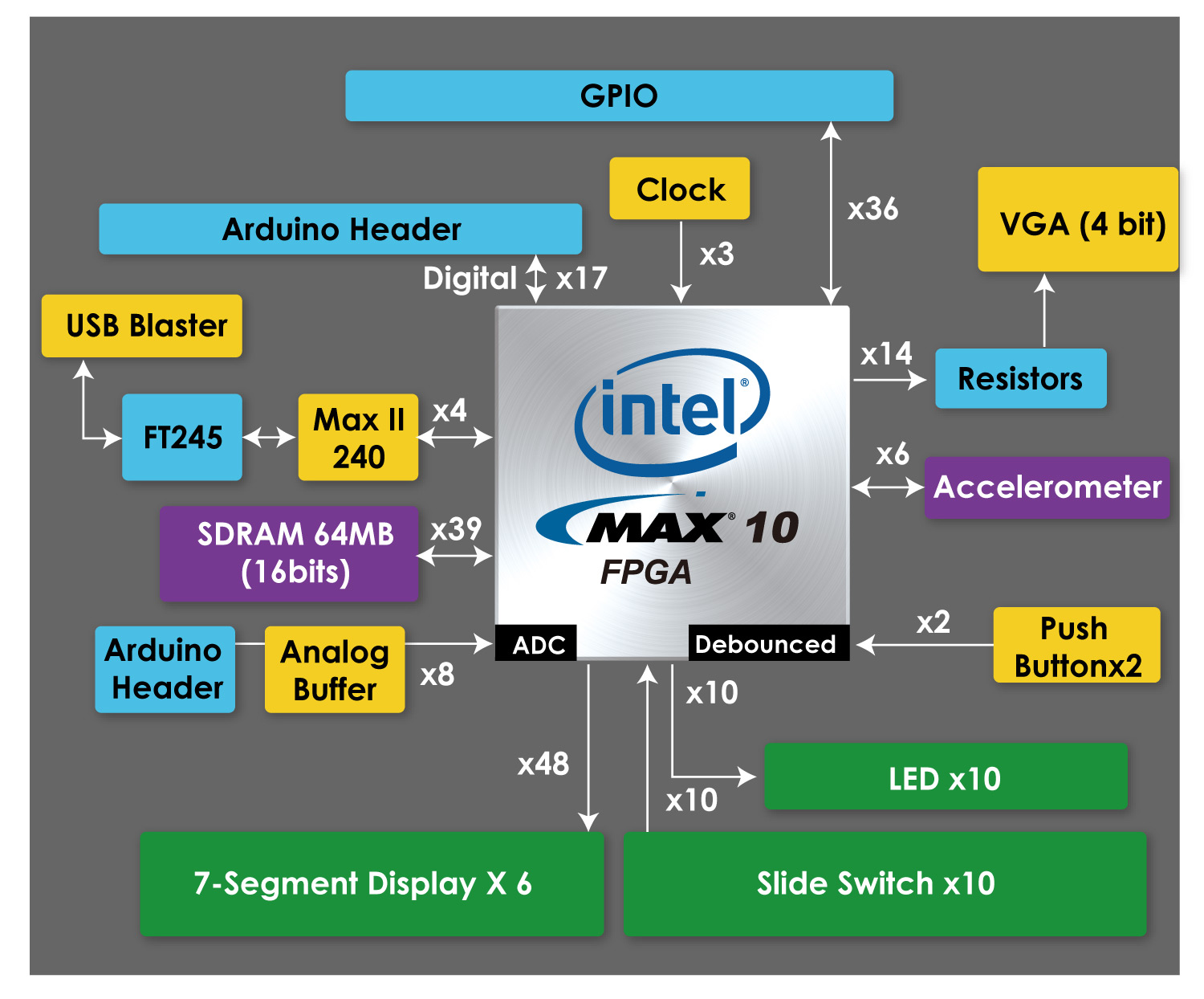

The board utilizes the maximum capacity MAX 10 FPGA, which has around 50K logic elements(LEs) and on-die analog-to-digital converter (ADC). It features on-board USB-Blaster, SDRAM, accelerometer, VGA output, 2x20 GPIO expansion connector, and an Arduino UNO R3 expansion connector in a compact size.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Powerful Intel MAX 10 FPGA
  • Rich On-Board Peripherals
  • Integrated Memory
  • Flexible Expansion Capabilities
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA
Offering Status Production
Device OPN(s) on Board 10M50DAF484C7G
Form Factor 97.5*80.0 mm
Power 5V
Interfaces VGA, Accelerometer
Memory 64MB SDRAM
Connectors 2x20 GPIO, Arduino Uno R3
Switches & LEDs LED x10, KEY x2, Switch x10, 7-Segment x6
Latest Quartus Version Supported 16.0.2

User Manual

Desgin Examples

Ordering Information

P0466

from Digikey

$140.00

Order Now

Documentation & Resources

design hub icon DE10-Lite User Manual
