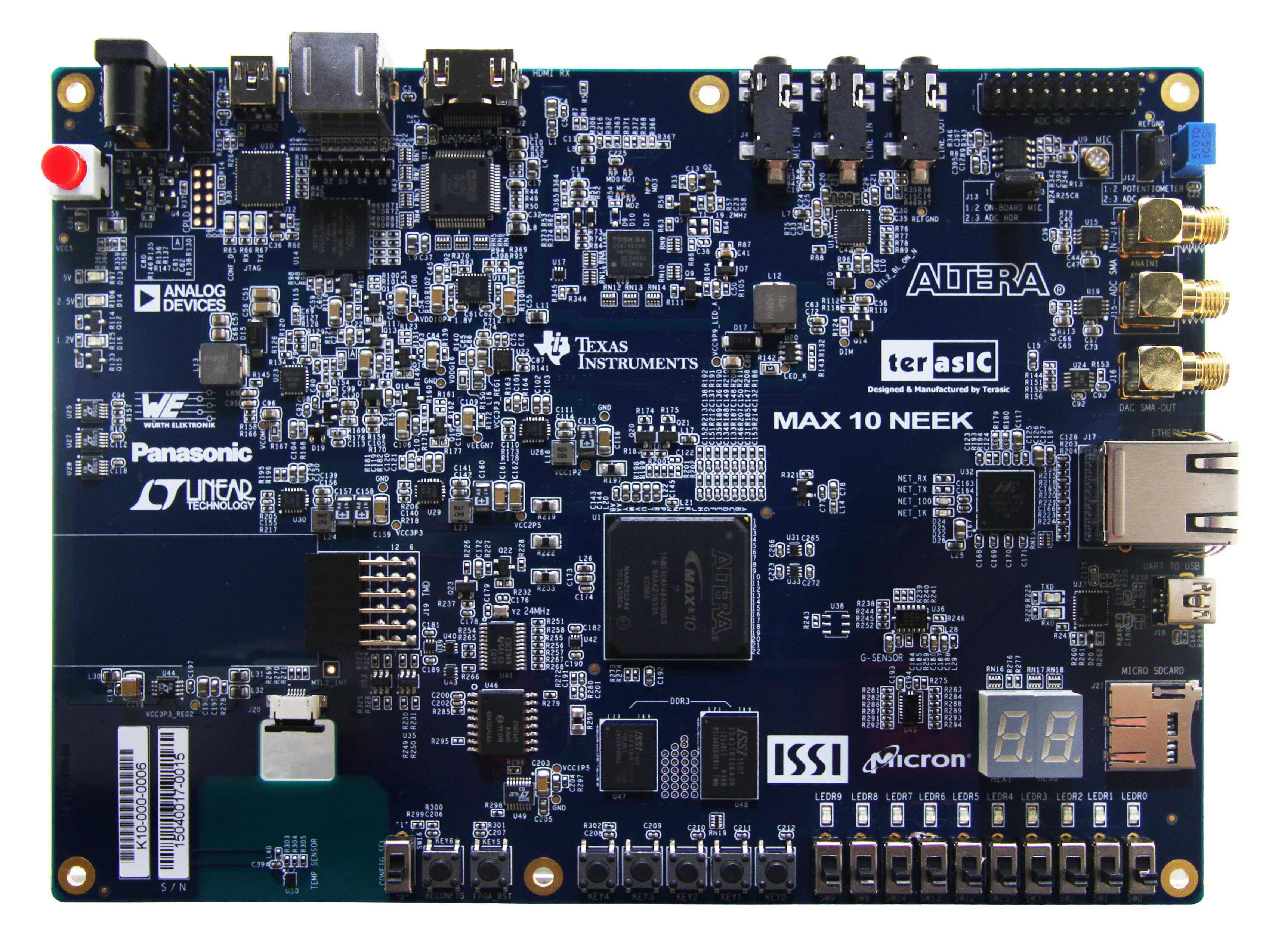

MAX® 10 Neek

Terasic Inc.

Select

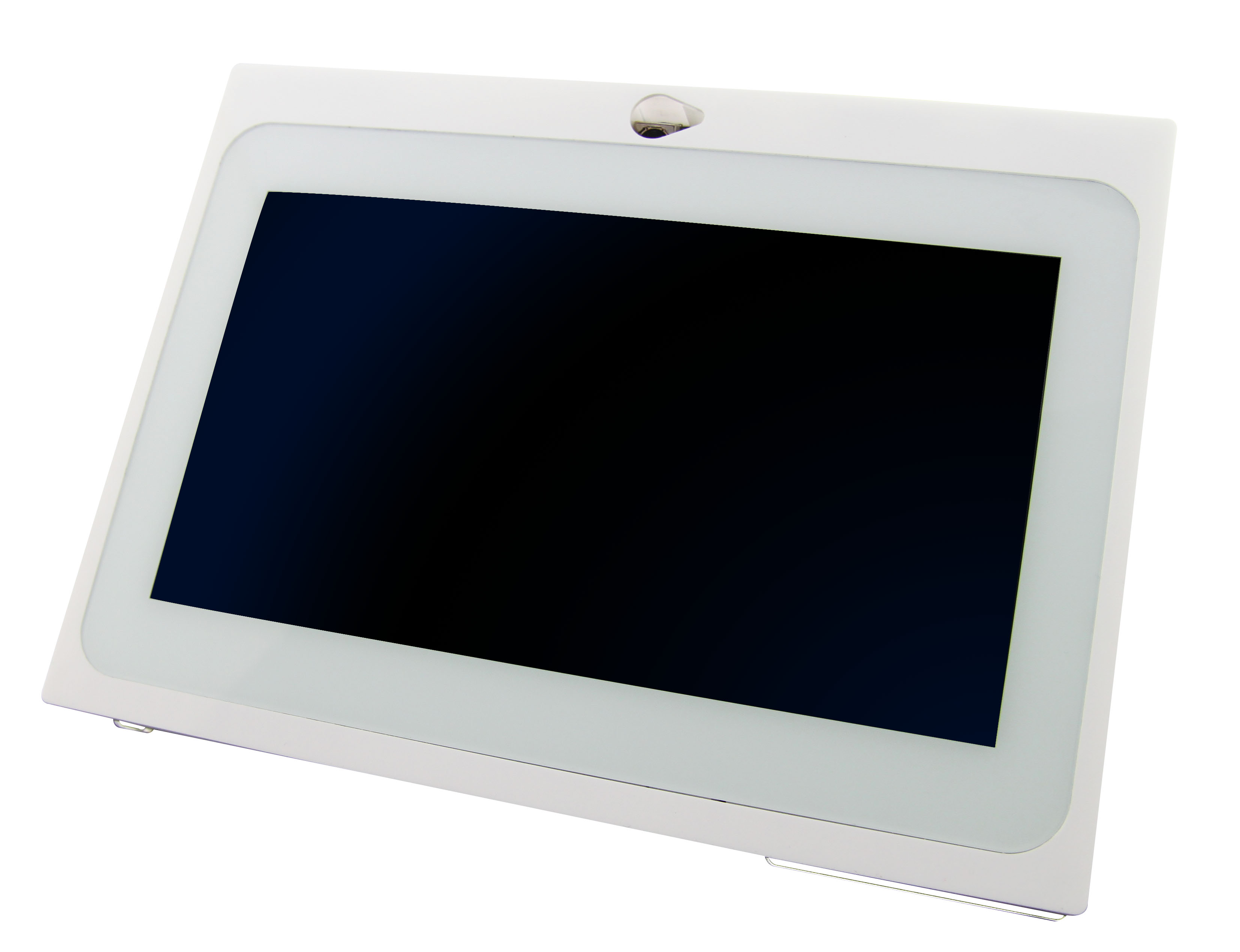

he fully integrated kit allows developers to rapidly customize their processor and IP to suit their specific needs, rather than constraining their software around the fixed feature set of the processor. The all-in-one embedded solution, the MAX 10 NEEK, combines a 5-point LCD touch panel and digital image module that provides developers an ideal platform for multimedia applications, making the best use of the parallel nature of FPGAs.

Key Features

  • Integrated Altera MAX 10 FPGA
  • Rich Multimedia Capabilities
  • Versatile On-board Sensors
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA
Offering Status Production
Device OPN(s) on Board 10M50DAF484C7G
Form Factor 190x140x20 mm
Power 5V

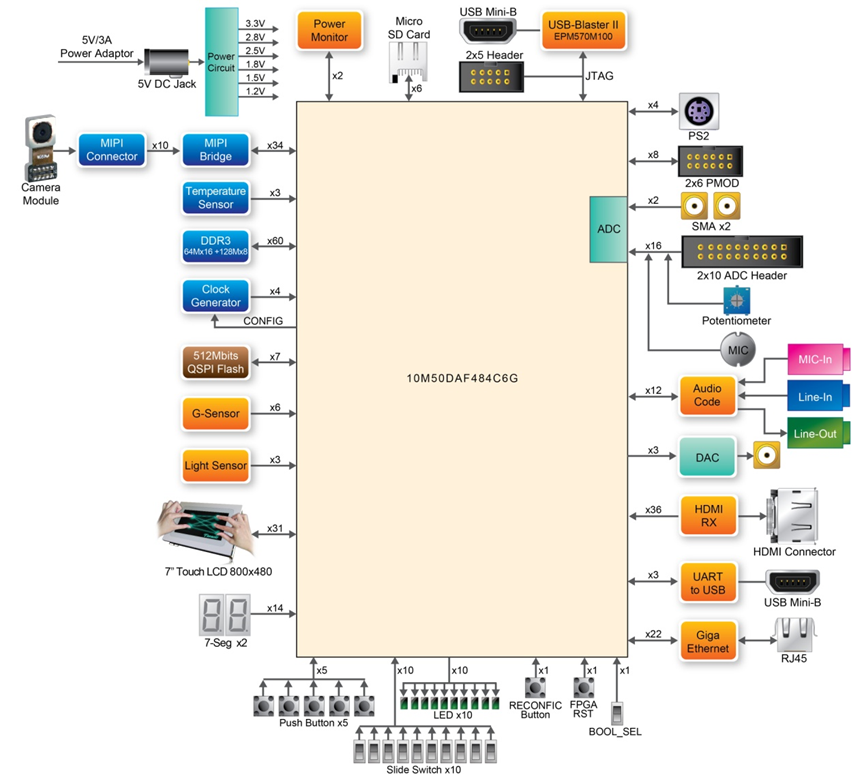

Interfaces Gigabit Ethernet、UART to USB、PS/2、mic-in, line-in, line-out jacks、HDMI Output、ADC SMA input x2、DAC Output、MIPI CSI-2 color camera
Memory 1Gb DDR3 SDRAM x2、512Mb QSPI、MicroSD card
Connectors 2x6 TMD GPIO、2x10 ADC Header
Switches & LEDs LED x10 , KEY x5 , Switch x10 , 7-Segment x2
Latest Quartus Version Supported 15.0.0
