MAX® 10 Device Family - T-Core

Terasic Inc.

Select

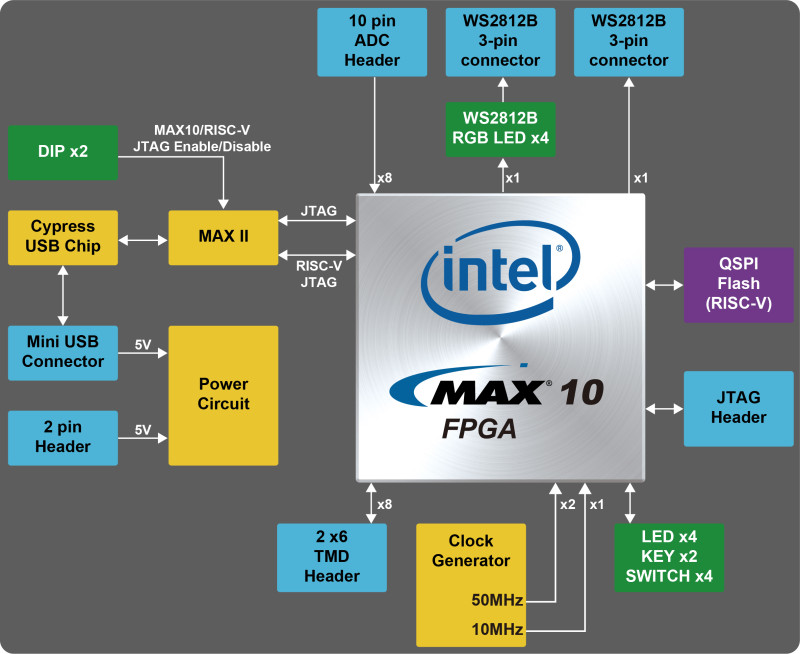

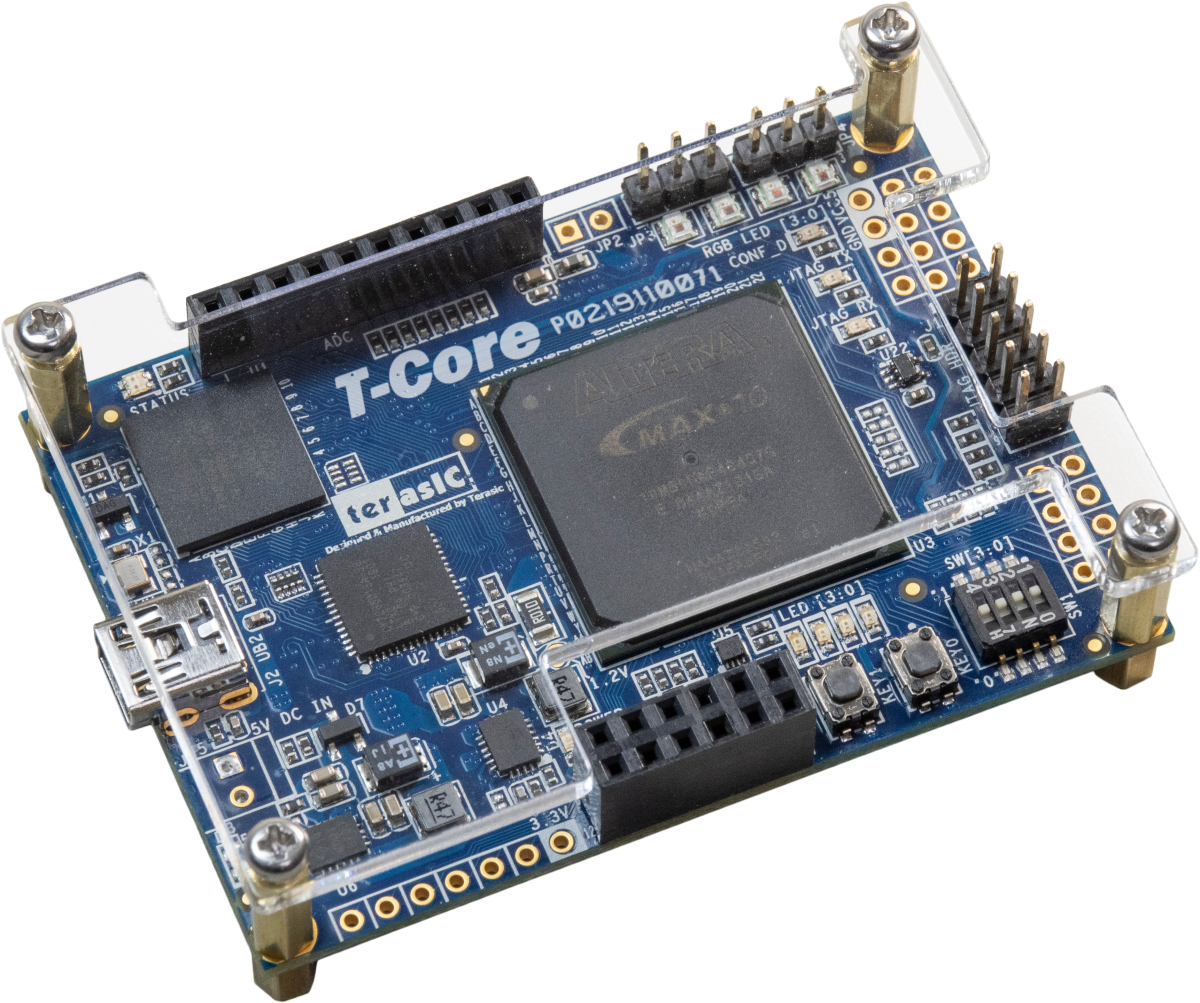

The T-Core development board includes hardware such as on-board USB-Blaster II, QSPI Flash, ADC header, WS2812B RGB LED and 2x6 TMD expansion header. By leveraging all of these capabilities, the T-Core is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Intel MAX 10 FPGA.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Powerful Altera MAX 10 FPGA
  • Flexible Expansion Headers
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family MAX® 10 FPGA
Offering Status Production
Device OPN(s) on Board 10M50DAF484C7G
Form Factor 47x67.4 mm
Power 5V
Interfaces ADC,
Memory 64Mb QSPI
Connectors 2x6 TMD GPIO、1x10 ADC Header、1x3 RGB LED connector x2
Switches & LEDs LED x4, KEY x2, Switch x4
Latest Quartus Version Supported 18.1.0

User Manual

Desgin Examples

Ordering Information

P0633

from Direct

$140.00

Order Now
