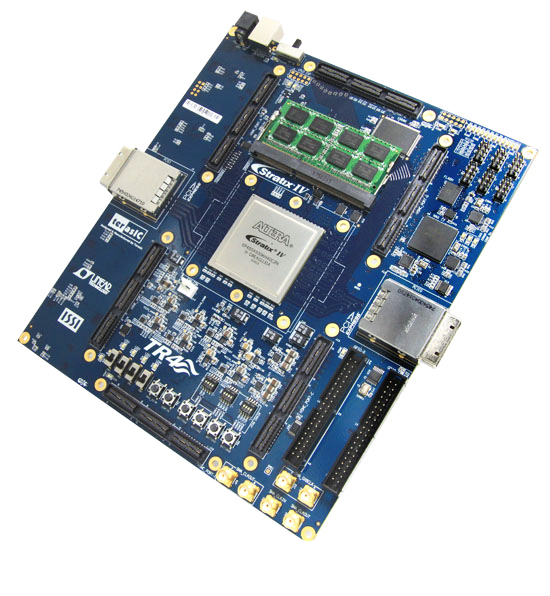

Stratix® IV GX Device Family - Terasic TR4 FPGA Development Kit

Overview Key Features Offering Brief What's Included Ordering Information Markets

Terasic Inc.

Select

The TR4 is supported by multiple reference designs and six High-Speed Mezzanine Card (HSMC) connectors that allow scaling and customization with mezzanine daughter cards. For large-scale ASIC prototype development, multiple TR4s can be stacked together to create an easily-customizable multi-FPGA system.

View Partner Website

Partner Product Page

Contact Now

Contact Terasic Inc.

LeadSource

ASAP Account ID

Record Type Name

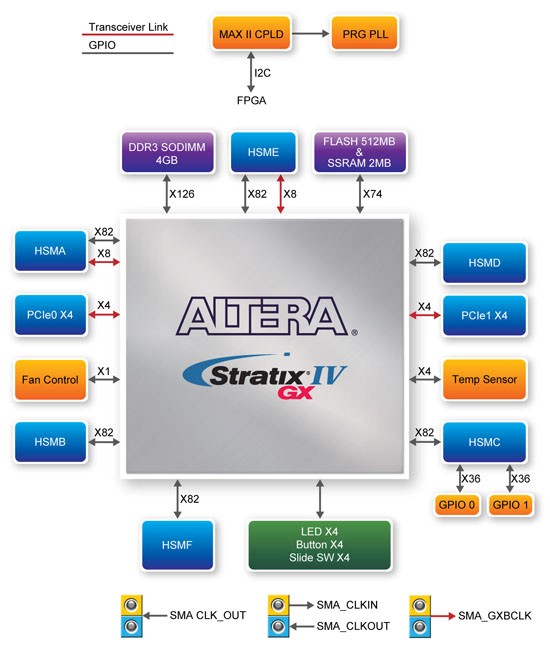

Key Features

High-Capacity Stratix IV FPGA
Massive I/O Expansion
High-Performance Memory
Scalability for Multi-FPGA Systems

Offering Brief

Device Family	Stratix® IV GX FPGA
Offering Status	Production
Device OPN(s) on Board	EP4SGX230KF40C2N;EP4SGX530KH40C2N
Form Factor	182.36 x 210.82 mm
Power	19V
Interfaces	PCIe
Memory	64MB Flash , 2MB SSRAM, DDR3 SO-DIMM Socket
Connectors	PCI Express x4 Connectors x2, HSMC connectors x6 , 40-pin Expansion Headers x2, SMA Connector x6
Switches & LEDs	LED x 4, Key x 4, Switch x 4
Latest Quartus Version Supported	20.1.1
