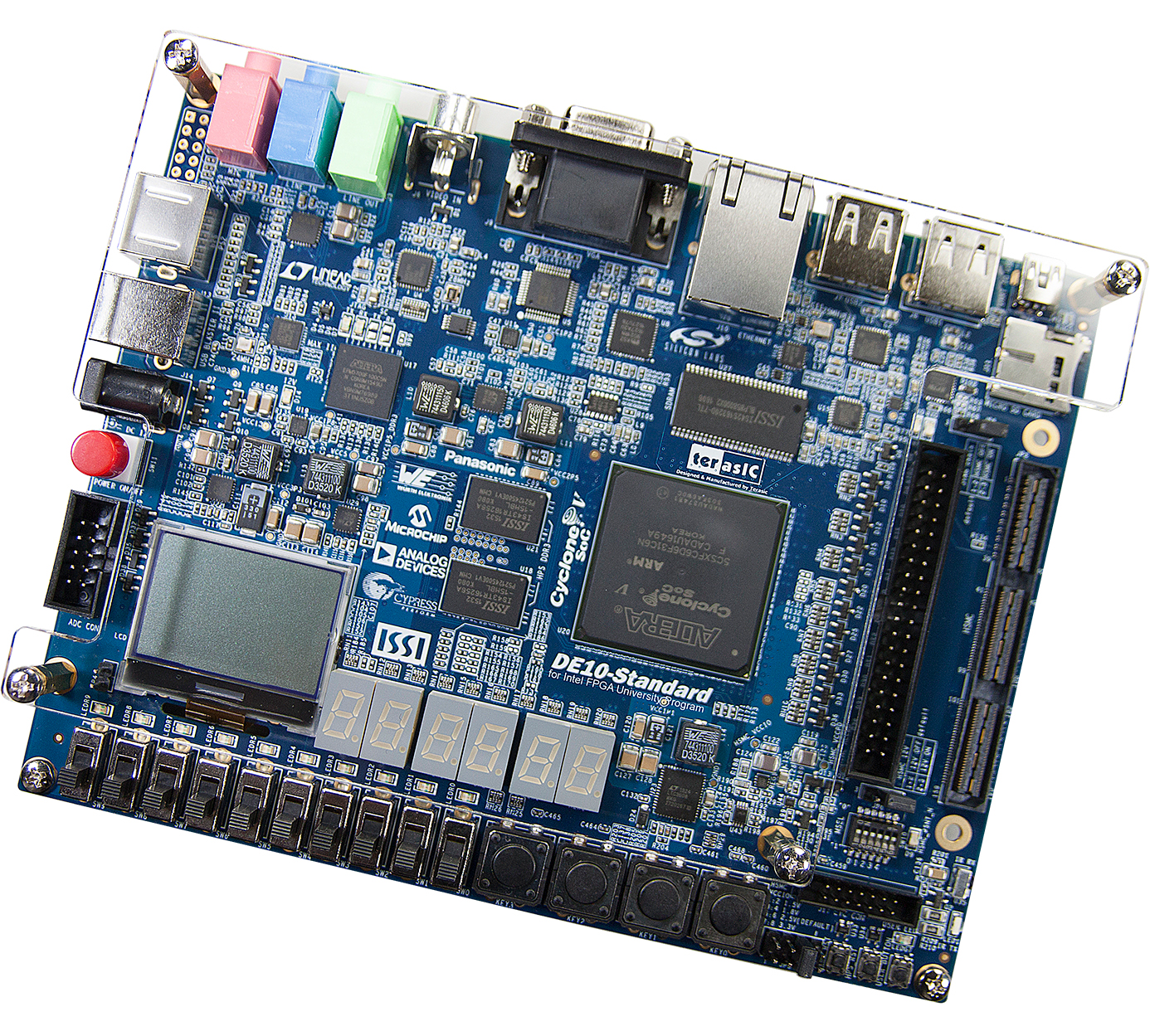

Terasic Cyclone® V SoC Development Kit with HSMC Connector (DE10-Standard)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Terasic Inc.

Select

Built around the Altera SoC FPGA, the DE10-Standard Development Kit combines a dual-core ARM Cortex-A9 hard processor system (HPS) with industry-leading programmable logic, connected through a high-bandwidth interconnect backbone. The HPS integrates processors, peripherals, and memory interfaces, enabling seamless collaboration between hardware and software. The board includes high-speed DDR3 memory, video and audio interfaces, Ethernet networking, and other rich hardware resources, making it an ideal platform for advanced embedded systems, multimedia processing, and networking applications.

View Partner Website

Partner Product Page

Contact Now

Contact Terasic Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Dual-Core ARM Cortex‑A9 Hard Processor System (HPS)
Memory and Configuration
Rich Multimedia & I/O Interfaces
Expansion & Analog Features
User Controls & Indicators

Offering Brief

Device Family	Cyclone® V SX SoC FPGA
Offering Status	Production
Form Factor	166*130 mm
Power	12V
Interfaces	VGA, 128x64 Dots LCD, 24-bit CODEC, USB to UART, Gigabit Ethernet, USB 2.0 Host x2, PS/2, IR
Memory	EPCS128, 64MB SDRAM, 1GB DDR3, MicroSD Card Socket
Connectors	40-pin expansion headers, One 10-pin Analog input, LTC 2x7, HSMC
Switches & LEDs	Reset Button, Power Button, Power LED, User-Programmable LEDs, Switch and Button
Latest Quartus Version Supported	16.1.1
