FPGA Cloud Connectivity Kit 2.0

Terasic Inc.

Select

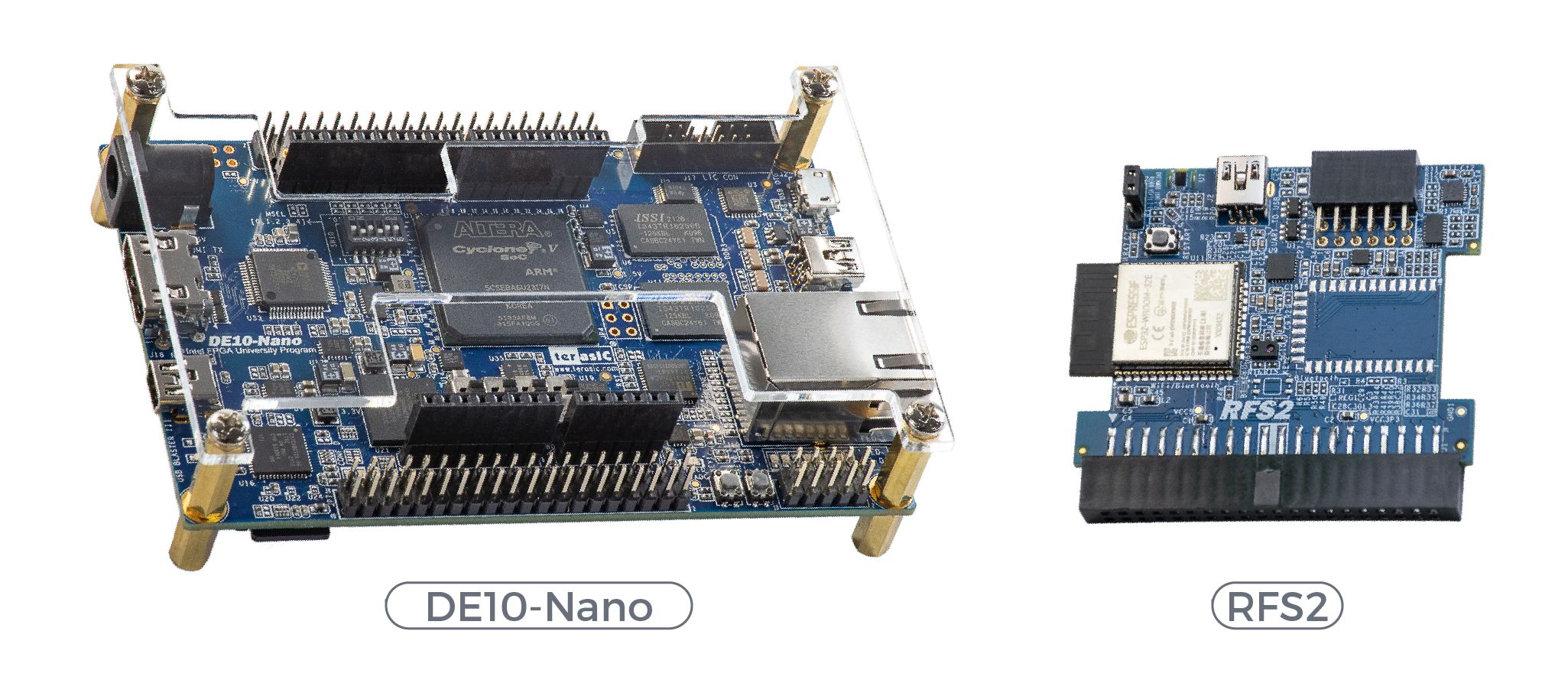

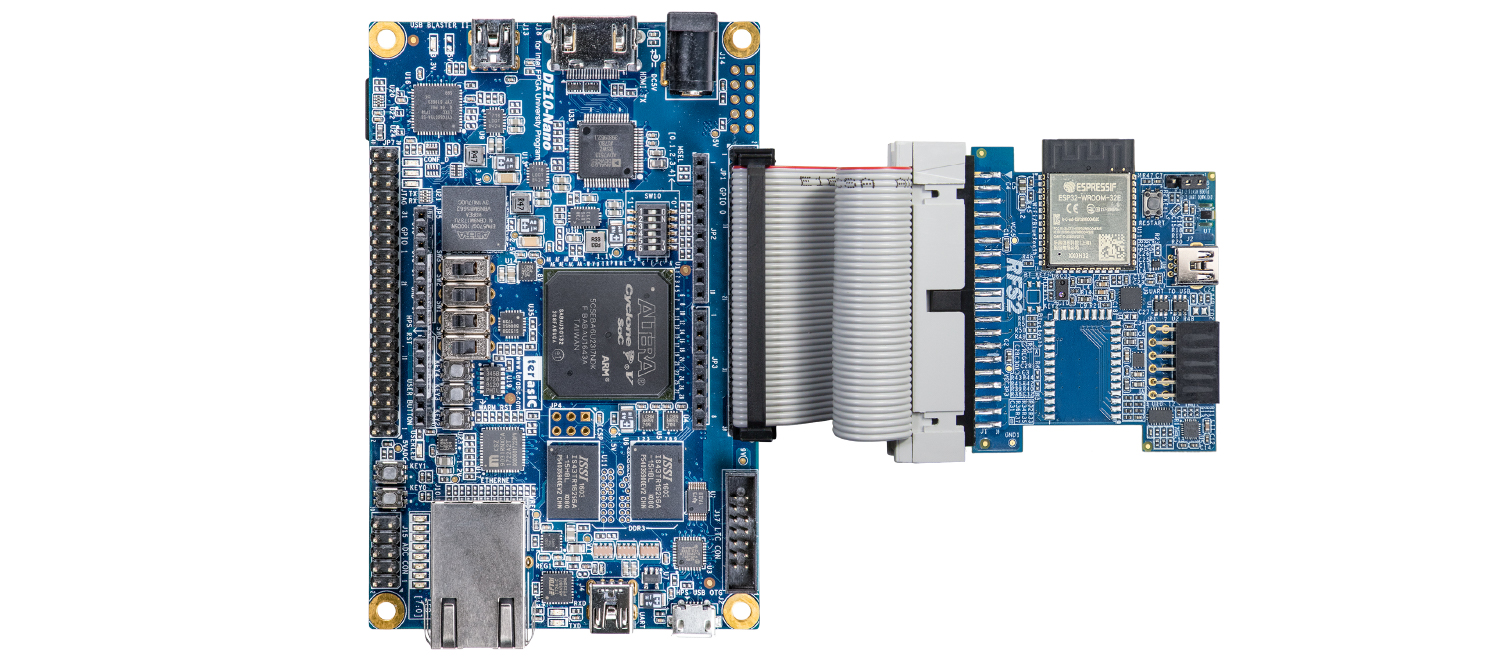

Built on the popular Terasic DE10-Nano, the FPGA Cloud Connectivity Kit combines the versatility of an Altera® Cyclone® V SoC FPGA with certified cloud connectivity to providers like Microsoft Azure. It includes wireless communication via Wi-Fi and Bluetooth, plus sensors for ambient light, temperature, humidity, acceleration, and gyroscopic motion. With open-source design examples, users can quickly learn to connect FPGA-based edge devices to the cloud, collect and analyze IoT data, and build responsive, reconfigurable smart edge solutions.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Built on DE10‑Nano with Altera® Cyclone® V SoC FPGA
  • Cloud service certification
  • Wireless connectivity via ESP32 module
  • Multi-sensor suite onboard
  • Developer-ready package
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® V SE SoC FPGA
Offering Status Production
Device OPN(s) on Board 5CSEBA6U23C7N
Form Factor 68.6x107mm
Power 5V
Interfaces HDMI TX, Gigabit Ethernet, Accelerometer, USB OTG, Wi-Fi, Classic Bluetooth (BT) and Bluetooth Low Energy(BLE), 9-axis sensor, Ambient light sensor, UART to USB
Memory 1GB DDR3, EPCS64, Micro SD card socket
Connectors 40-pin expansion headers, One 10-pin Analog input, LTC 2x7 expansion header, Arduino expansion header
Switches & LEDs Reset Button, Power Button, Power LED, User-Programmable LEDs, Switch and Button
Latest Quartus Version Supported 20.1.1

Documents

System CD

Ordering Information

P0737

from Direct

$314.00

Order Now
