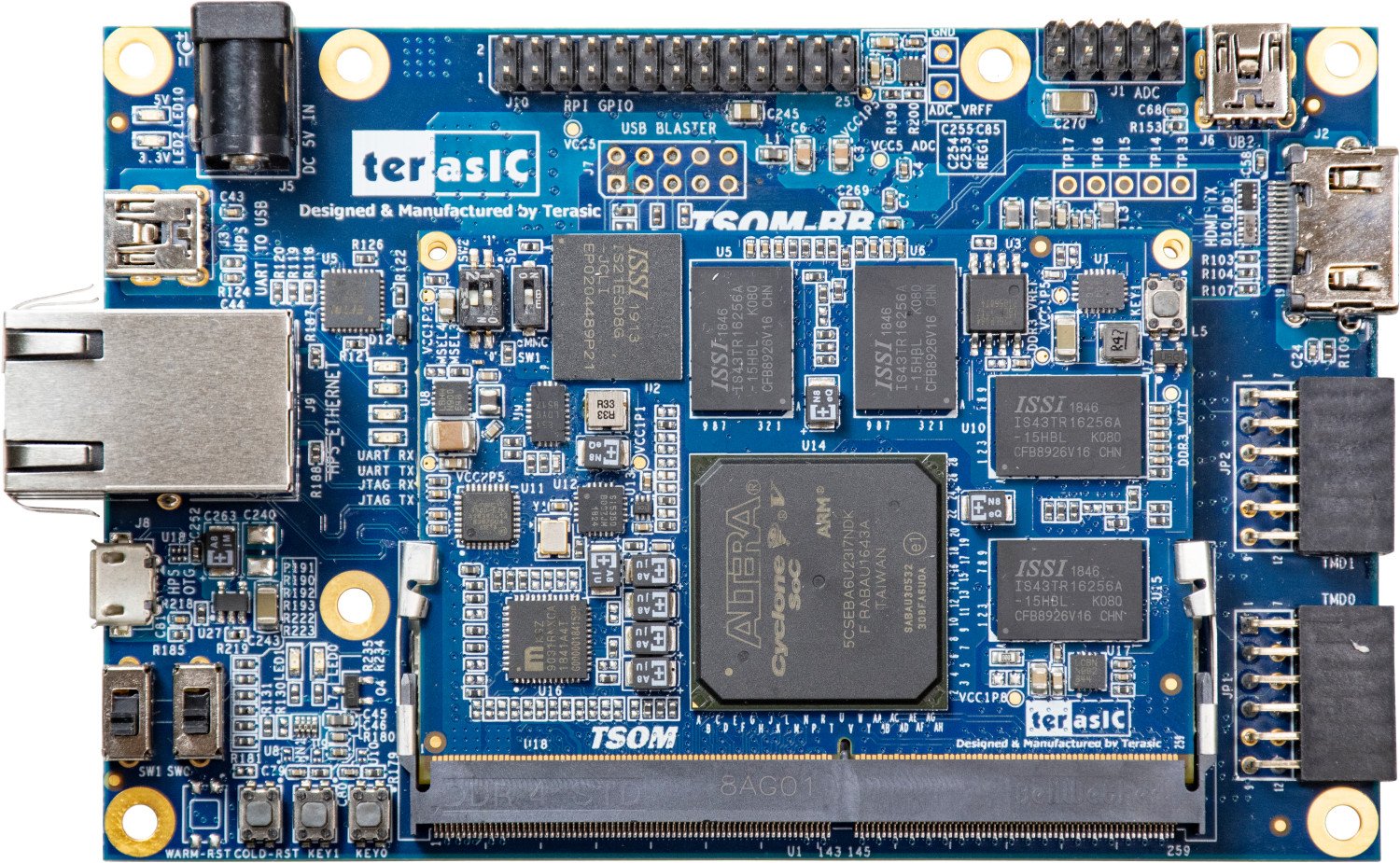

Terasic SoC System on Module Evaluation Kit

Terasic Inc.

Select

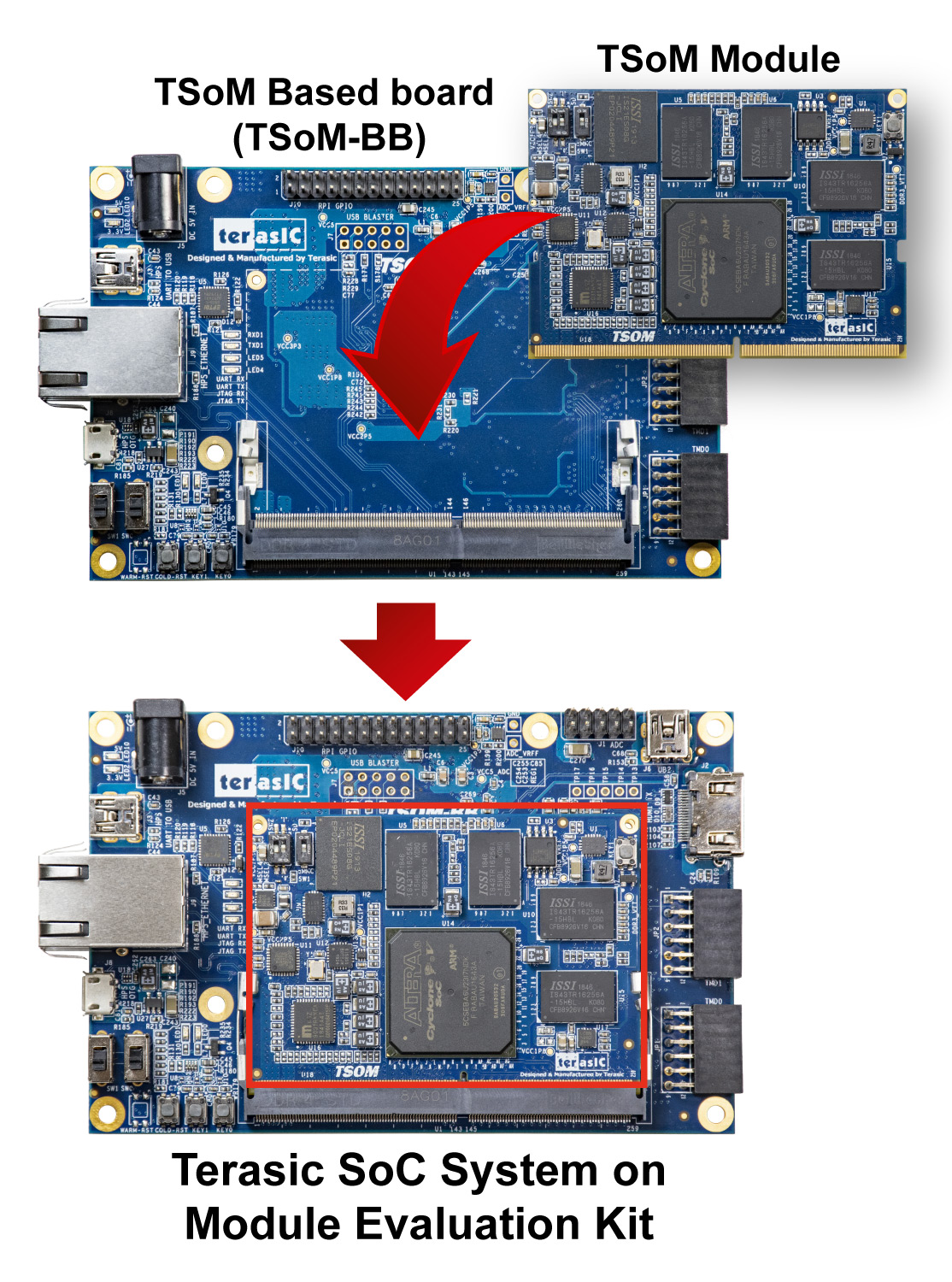

To achieve a developer friendly environment, an I/O based evaluation board is designed for users to experience the peripherals of the TSoM, to test and evaluate the I/O planned for their systems. Choose TSoM, and to improve overall equipment effectiveness with IoT data and AI.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Powerful Cyclone® V SoC FPGA
  • Compact System-on-Module (SoM) Design
  • Robust Memory and Storage
  • Comprehensive Evaluation Carrier Board
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Cyclone® V SE SoC FPGA
Offering Status Production
Device OPN(s) on Board 5CSEBA6U23I7N
Form Factor 89.5mmx 70mm
Power 5V

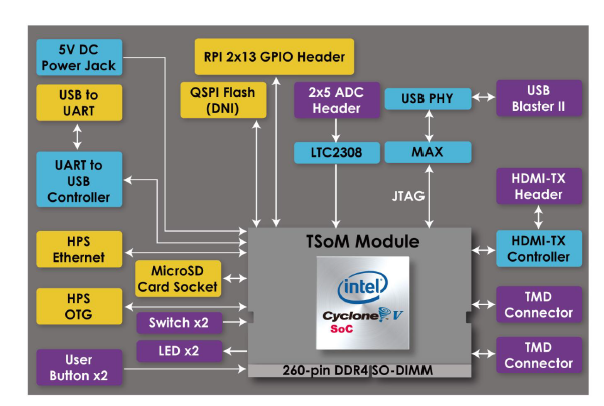

Interfaces HDMI TX, USB to UART, Ethernet, USB OTG, 2x13 GPIO, MicroSD Socket, 8-channel ADC, TMD Header x2
Memory 1GB DDR3, eMMC 8GB, 512Mb QSPI FLASH
Connectors MicroSD Socket, 2x13 GPIO, TMD Header x2, HDMI
Switches & LEDs LED x 2, Key x 2, Switch x 2
Latest Quartus Version Supported 17.1.1

User Manual

Desgin Examples

Ordering Information

P0581

from Direct

$498.00

Order Now
