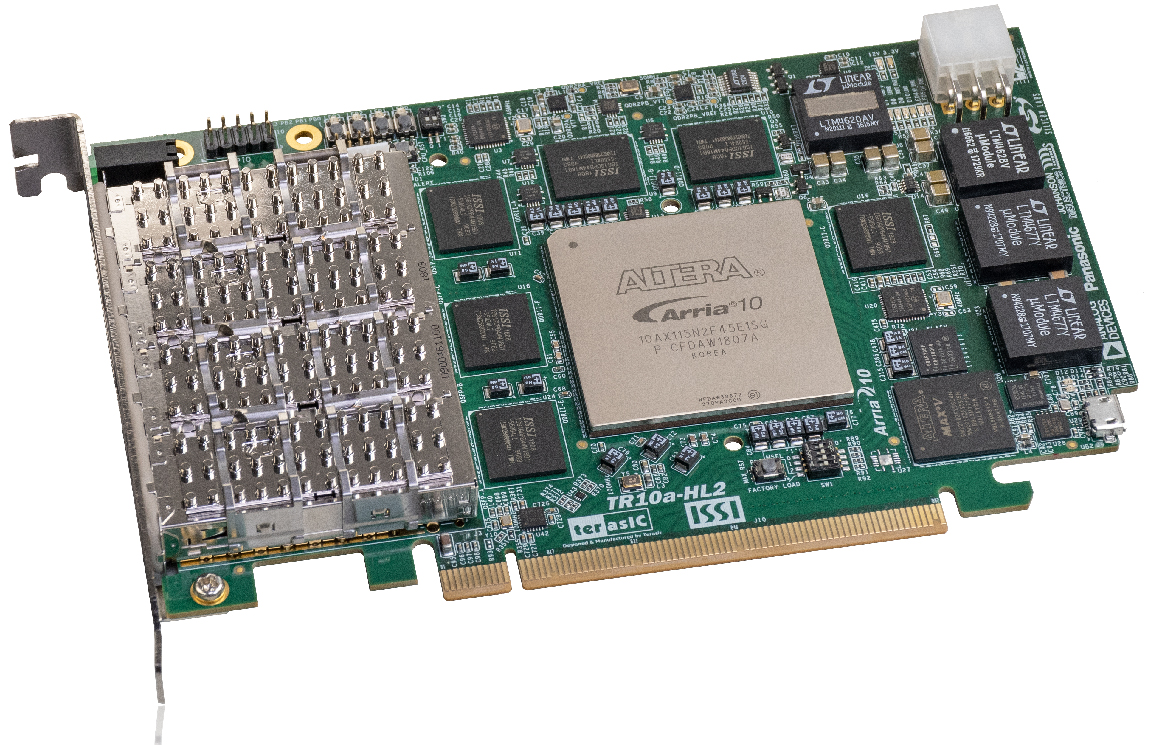

TR10a-HL2 Arria® 10 FPGA Development Kit

Terasic Inc.

Select

The TR10a-HL2 takes advantage of the powerful Intel® Arria® 10 to obtain speed and power breakthrough. The board itself features four ultra low-latency, straight connections 40Gbps QSFP+ module. Also, armed with six independent banks of QDRII+ SRAM providing over 237.6Gbps bandwidth, and the PCIe x16 edge connector consisting of two PCIe Gen3 x8 interfaces, the board delivers 2x the throughput rate of other Arria 10 acceleration cards in the market.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • High-Performance Arria 10 GX FPGA
  • Ultra Low-Latency Network I/O
  • High-Speed SRAM Memory
Expand Close

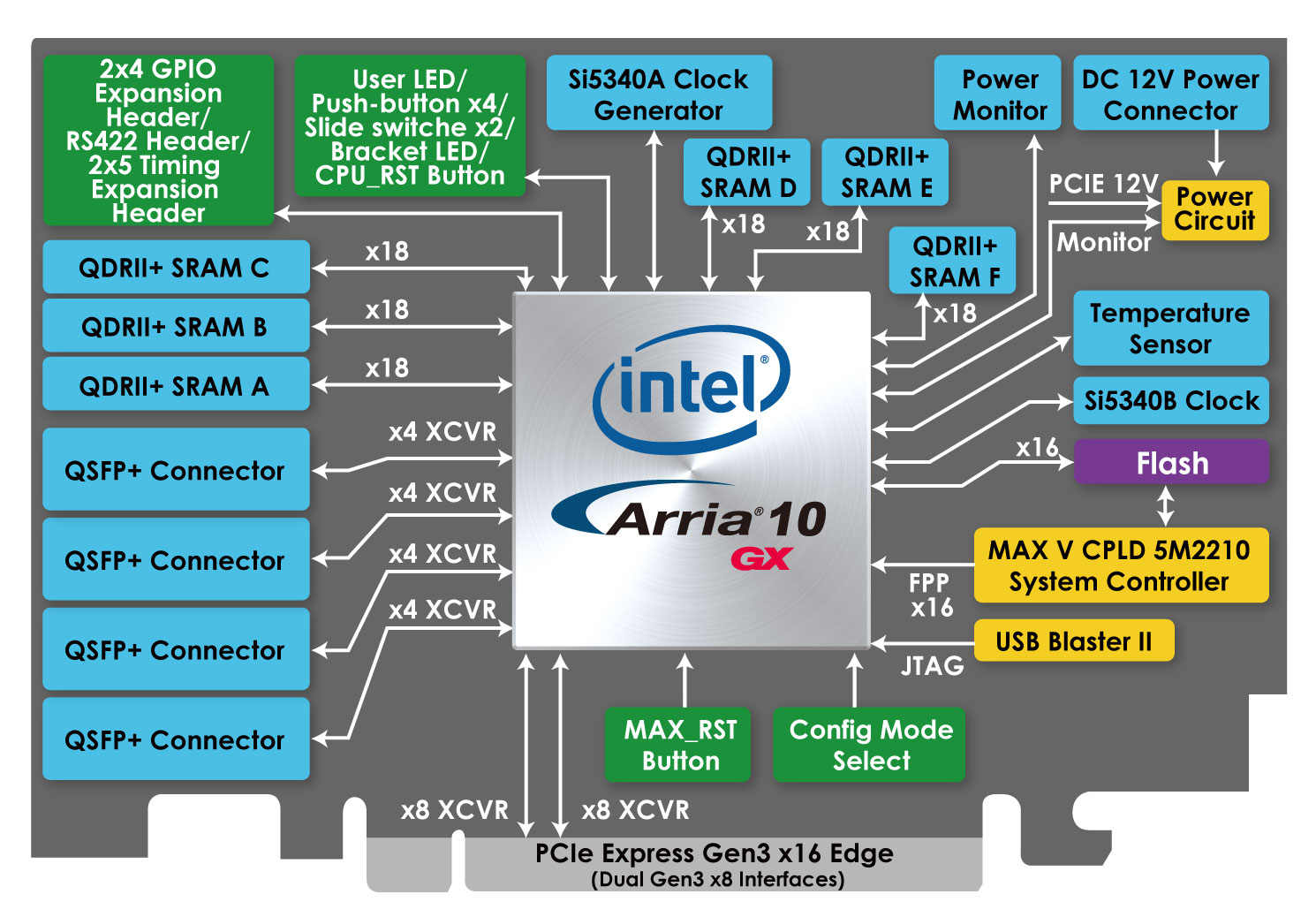

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 10AX115N2F45E1SG
Form Factor 106.65x167.64mm
Power 12V
Interfaces QSFP+, PCIe
Memory 128MB Flash、72Mbit QDRII+ SRAM x6
Connectors 2x4 GPIO connector、QSFP+ connector x4、PCI Express (PCIe) x16 edge connector
Switches & LEDs LED x4, KEY x4, Switch x2
Latest Quartus Version Supported 16.1.2

User Manual

Desgin Examples

Ordering Information

P0578

from Direct

$5000.00

Order Now
