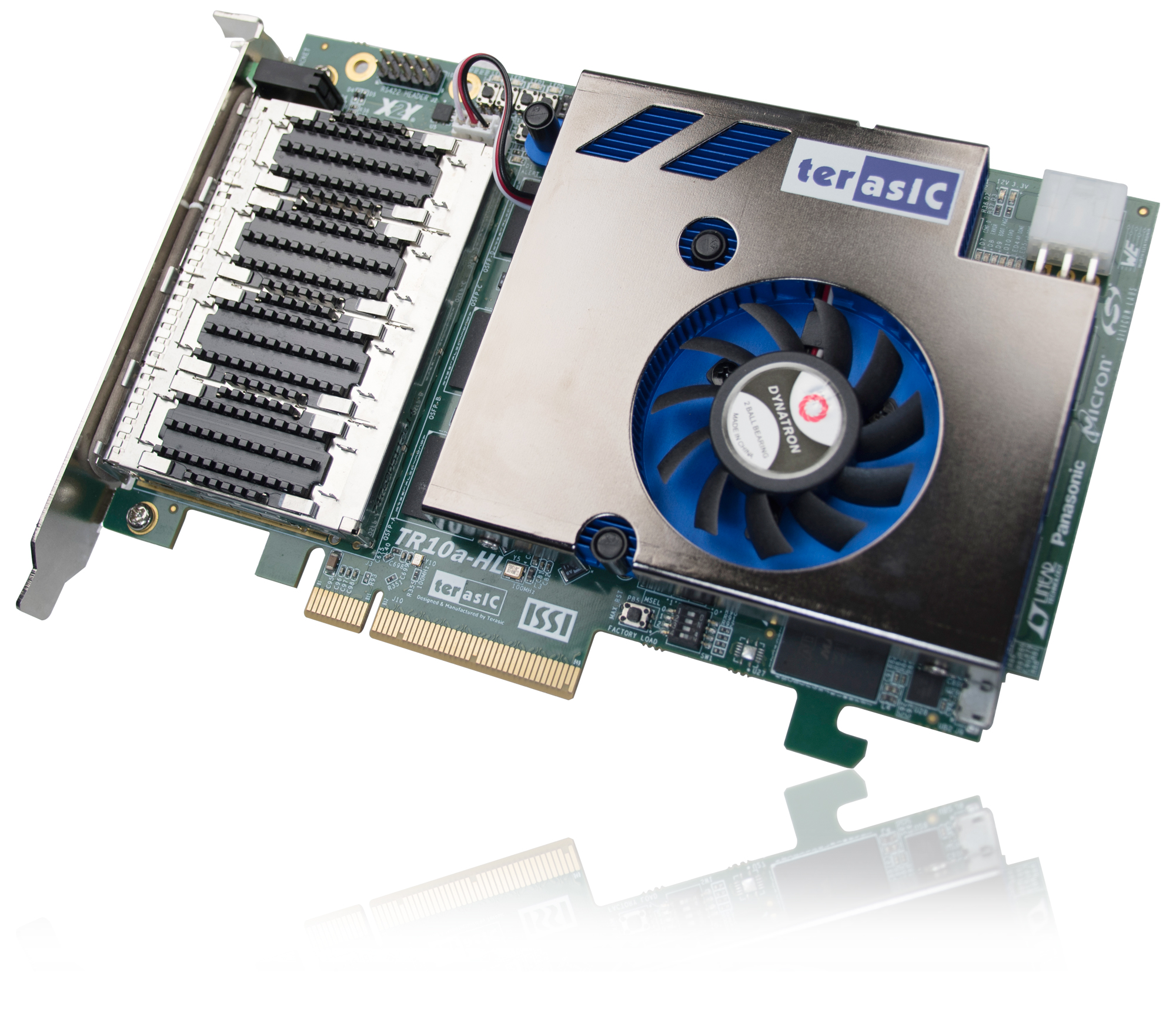

TR10a-HL Arria® 10 FPGA Development Kit

Terasic Inc.

Select

R10a-HL is fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. For designs that demand high capacity and high speed for memory and storage, the TR10a-HL delivers with six independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the TR10a-HL fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

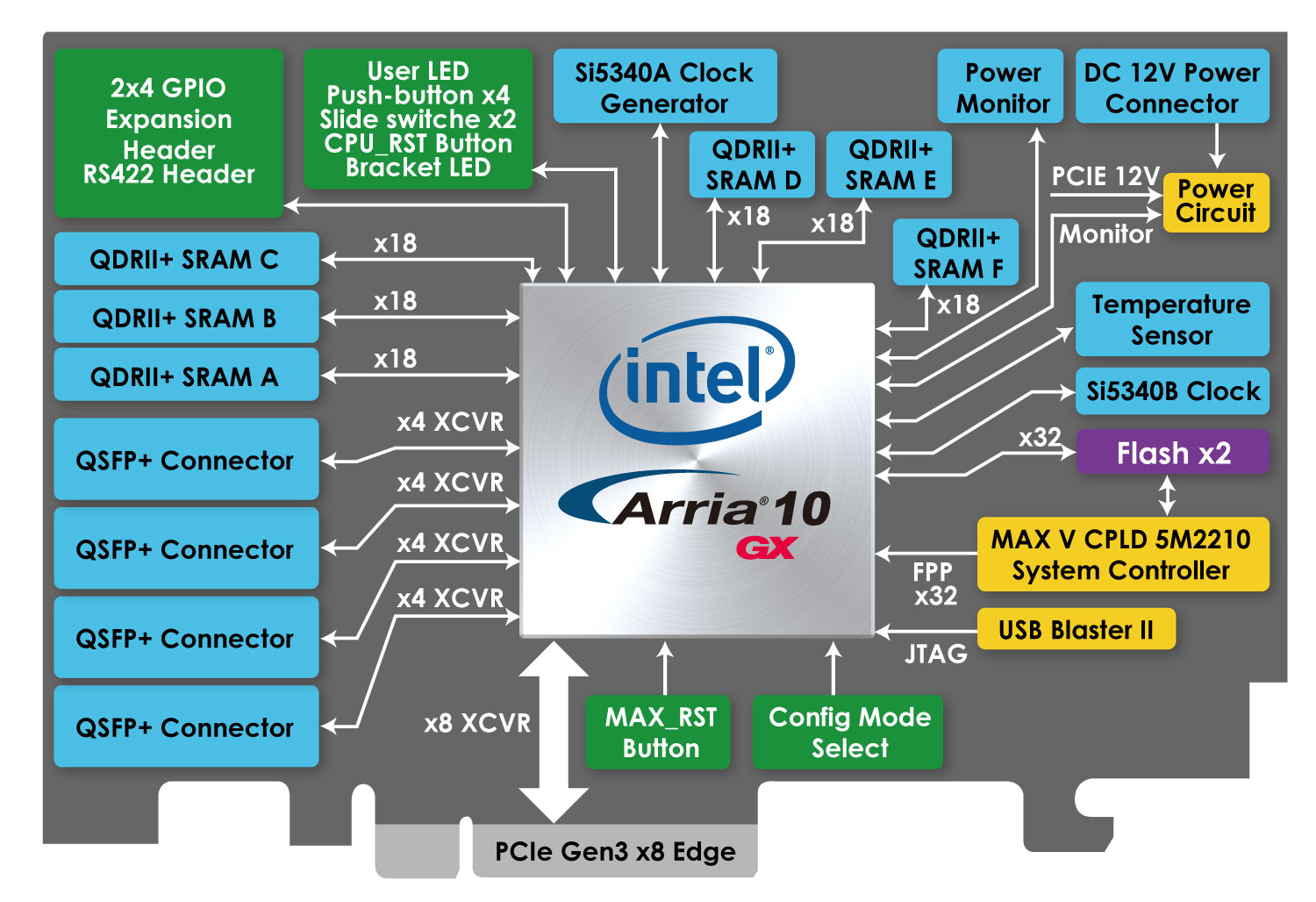

Key Features

  • High-Performance Arria 10 GX FPGA
  • Ultra Low-Latency Network I/O
  • High-Speed SRAM Memory
  • PCI Express Connectivity
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 GX FPGA
Offering Status Production
Device OPN(s) on Board 10AX115N2F45E1SG
Form Factor 106.65x167.64mm
Power 12V
Interfaces QSFP, PCIe
Memory 256MB Flash、72Mbit QDRII+ SRAM x6
Connectors 2x4 GPIO connector、QSFP+ connector x4、PCI Express (PCIe) x8 edge connector
Switches & LEDs LED x4, KEY x4, Switch x2
Latest Quartus Version Supported 16.0.0
