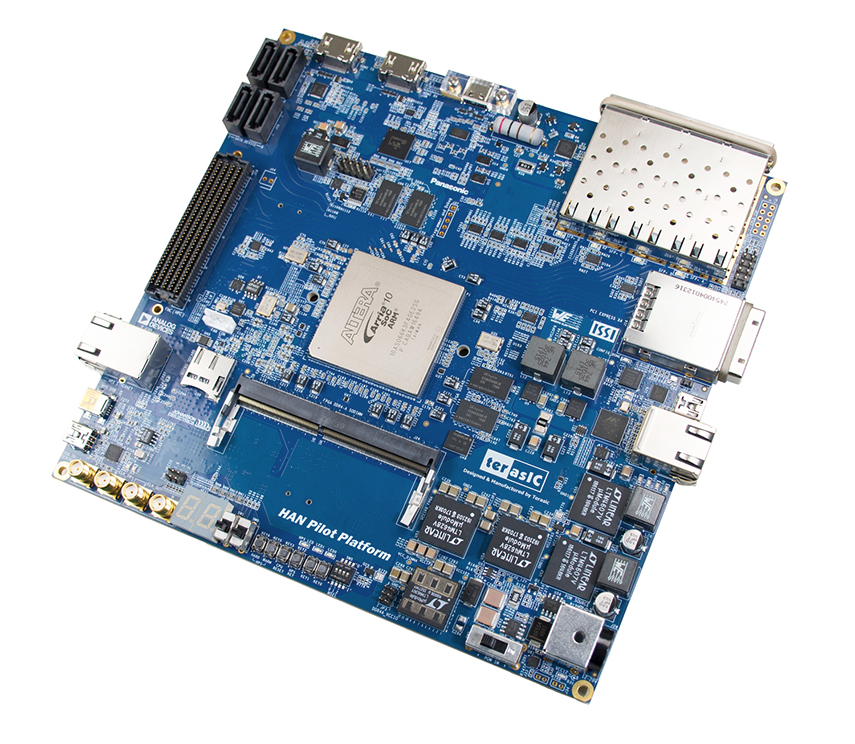

HAN Pilot Platform

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Terasic Inc.

Select

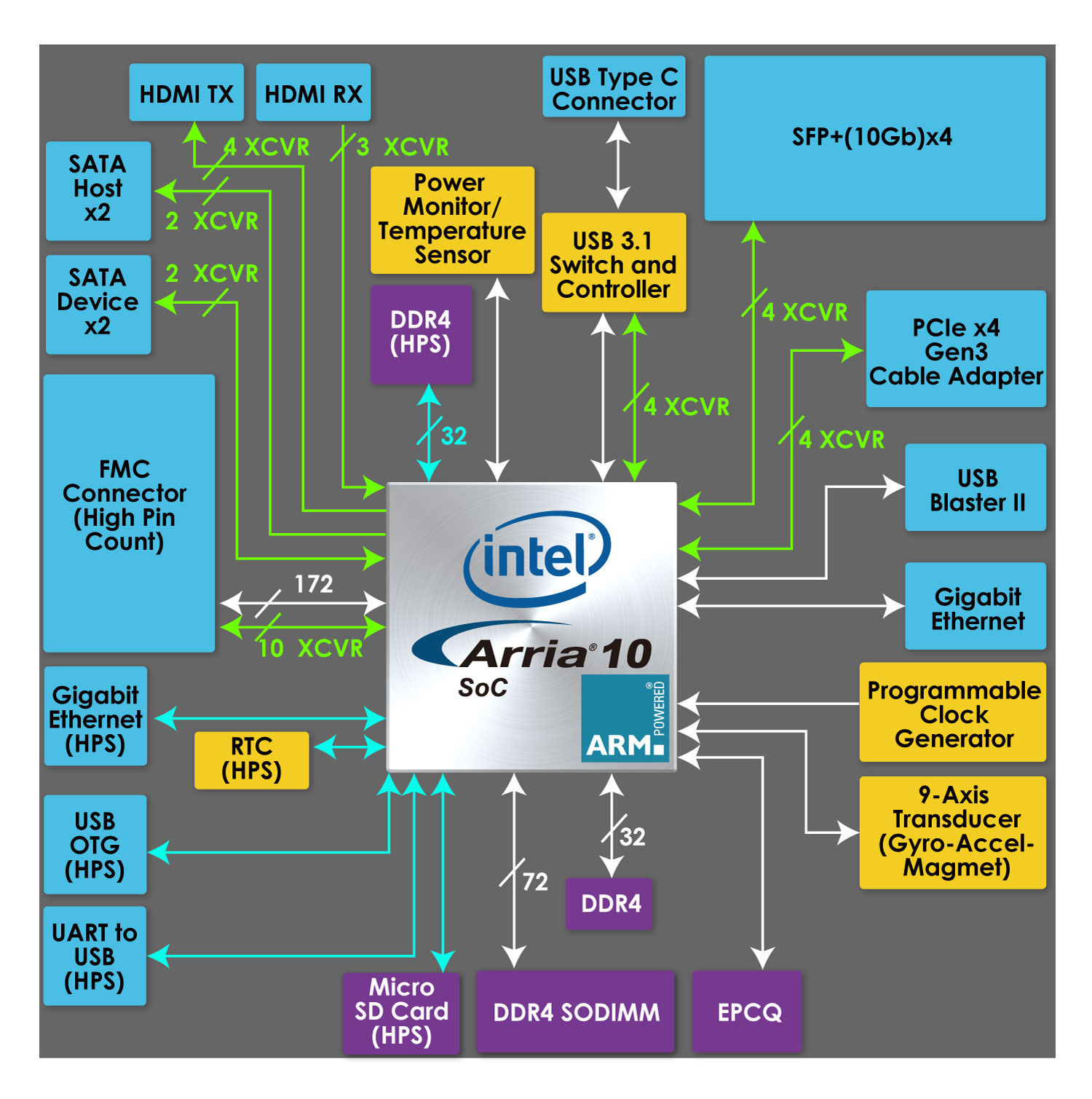

The board combines a number of high-end hardware interfaces such as high-capacity and high-bandwidth DDR4 SDRAM (up to 8GB), 10GbE SFP+ and PCIe x4 ports for communication, and USB Type-C and HDMI interfaces for video and data processing, FMC connectors for I/O expansion.

View Partner Website

Partner Product Page

Contact Now

Contact Terasic Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Powerful FPGA with Integrated High-Performance Processor
High-Speed Memory and Communication Interfaces
Versatile I/O and Expansion Options
Comprehensive Sensors and System Monitoring

Offering Brief

Device Family	Arria® 10 SX SoC FPGA
Offering Status	Production
Device OPN(s) on Board	10AS066K3F40E2SG
Form Factor	188.5mm x 190mm
Power	12V
Interfaces	HDMI -TX、HDMI-RX、SATA Device x2、SATA Host x2、Type-C USB、Gigabit Ethernet x2、PCIe Cabling Socket、SMA Clock-In and Clock-Out、SFP+ Socket x4
Memory	1GB DDR4 x2、4GB DDR4 ECC SO-DIMM Module
Connectors	FMC, PCIe Cabling Socket, SATAx2, HDMI, SFP+x4
Switches & LEDs	LED, KEY, Switch, 7-Segment
Latest Quartus Version Supported	18.1.0
