XIP1213H, High-speed MACSEC AES-GCM IP Core targeting 10G/25G/40G linerates

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

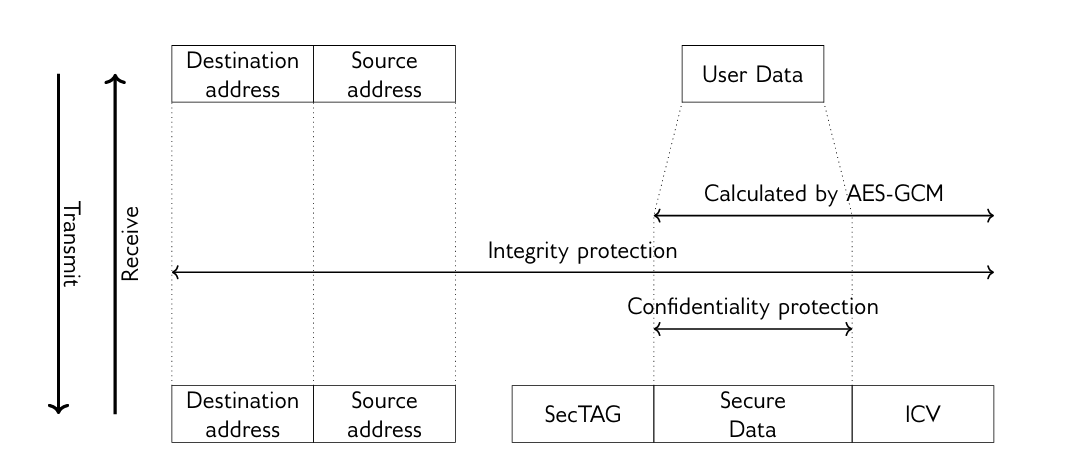

MACsec is a point-to-point protocol located on layer two (Data Link) of the OSI model. Xiphera’s high speed MACsec solution safeguards the confidentiality and integrity of data transmitted over point-to-point communication links up to 40G, assured by the Advanced Encryption Standard (AES) in Galois Counter Mode (GCM) with runtime configurable key lengths.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Moderate resource requirements: The entire XIP1213H requires 54665 Adaptive Lookup Modules (ALMs) (Altera® Stratix® 10 GX), and does not require any multipliers or DSPBlocks in a typical FPGA implementation.
Performance: XIP1213H achieves a throughput in the tens of Gbps range4, for example 27.66 Gbps in AMD® Zynq® MPSoC.
Standard Compliance: XIP1213H is fully compliant with the MACsec protocol as standardized in IEEE Std 802.1AE-2018 [2]. The cipher suite (GCM-AES-128 or GCM-AES-XPN-128) is fully compliant with the Advanced Encryption Algorithm (AES) standard [1], as well as with the Galois Counter Mode (GCM) standard [3].
Test Vector Compliance: XIP1213H passes the relevant test vectors specified in Annex C of IEEE Std 802.1AE-2018 [2].

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
