XIP3322B: HKDF/HMAC/SHA-256 IP core

Overview Key Features Offering Brief What's Included Ordering Information Markets

Xiphera Ltd.

Select

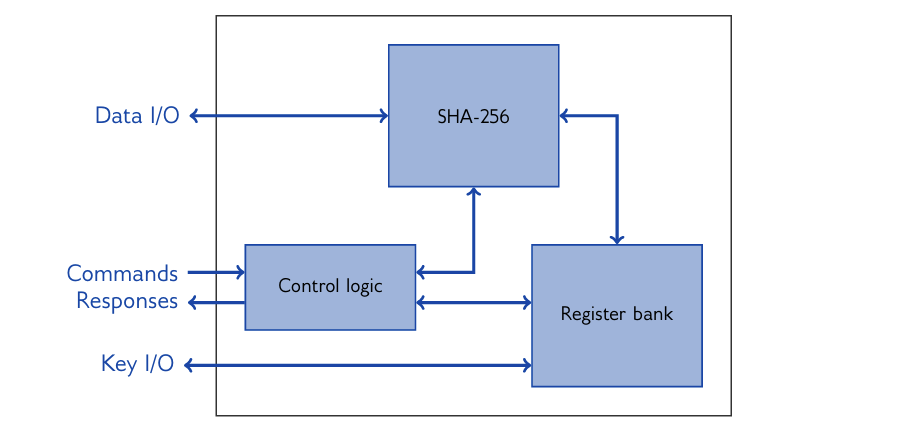

XIP3322B from Xiphera is a versatile Intellectual Property (IP) core designed for SHA-256 cryptographic hash function with extended support for HMAC message authentication code and HKDF key derivation function that are based on using SHA-256. SHA-256 is one of the most commonly used hash functions and is used in numerous cryptographic applications. XIP3322B offers a good balance between performance and resource requirements. XIP3322B has been designed for easy integration with FPGA- and ASIC-based designs in a vendor-agnostic design methodology, and the functionality of XIP3322B does not rely on any FPGA manufacturer-specific features.

View Partner Website

Partner Product Page

Contact Now

Contact Xiphera Ltd.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Versatility: XIP3322B supports the widely used cryptographic hash function SHA-256. It also has native support for commonly used message authentication code (HMAC) based on SHA-256 and key derivation function (HKDF) based on HMAC. This allows using XIP3322B for multiple cryptographic functions —for example, TLS 1.3 [4] —more easily and efficiently than an IP core that supports only SHA-256.
Constant Latency: The execution time of XIP3322B is independent of the message and key values (apart from message length), and consequently provides protection against timingbased side-channel attacks.
Performance: XIP3322B provides high performance and reaches hashing speeds of several hundreds of Mbps.
Compact Size: XIP3322B has compact size (for example, 1322 ALMs and, 3 M20K blocks in Intel® Cyclone® 10 GX family) permitting integration into resource constrained FPGA designs.

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Latest Quartus Version Supported	25.1.1
Development Language	Encrypted VHDL, VHDL
