The HawkEye-CL Frame Grabber is Camera Link Rev. 2.0 compliant, offering a number of options, from plug-and-play grabbers to a full system solution that includes acquisition and on-FPGA processing. The card is supported by off-the-shelf modular building blocks for embedding in the acquisition pipeline, including HDR, white balance, gamma correction, compression (JPG, lossless, Quality+), and more. It is also supported by Gidel's InfiniVision acquisition architecture, optimized for grabbing from 100+ cameras.
Gidel
Key Features
- Camera Link modes: Base, Medium, Full, 80-bit (Deca)\ Dual-Base cameras
- Camera Link Rev. 2.0
- Ideal for Recording & Streaming solutions
- Inline Image Processing option
- On-FPGA real-time Compression (Quality+, .jpg, lossless) option
- Real-Time High Dynamic Range (HDR) correction option
- Supports 100+ synchronized cameras using the InfiniVision
- On Board Memory: up to 17 GB
- Passive cooling | Active cooling (fan)
Offering Brief
Offering Brief
| Device Family | Arria® 10 GX FPGA |
|---|---|
| Offering Status | Production |
| Demo | No |
| Form Factor | Low-profile PCIe card (Gen. 3x 8) |
| Power | 5-32W: Depends on user application and FPGA Type |
| Interfaces |
1x 80-bit (Deca), Full, Medium or Base Camera Link 2x Base Camera Links with option for PoCL |
| Memory | 256MB |
| Connectors | 2x SDR26 | JTAG | VGA15-pin for connecting GPIO's to the bracket | 16-pin board-to-board header |
| Switches & LEDs | power, status LEDs |
| Latest Quartus Version Supported | 20.4.0 |

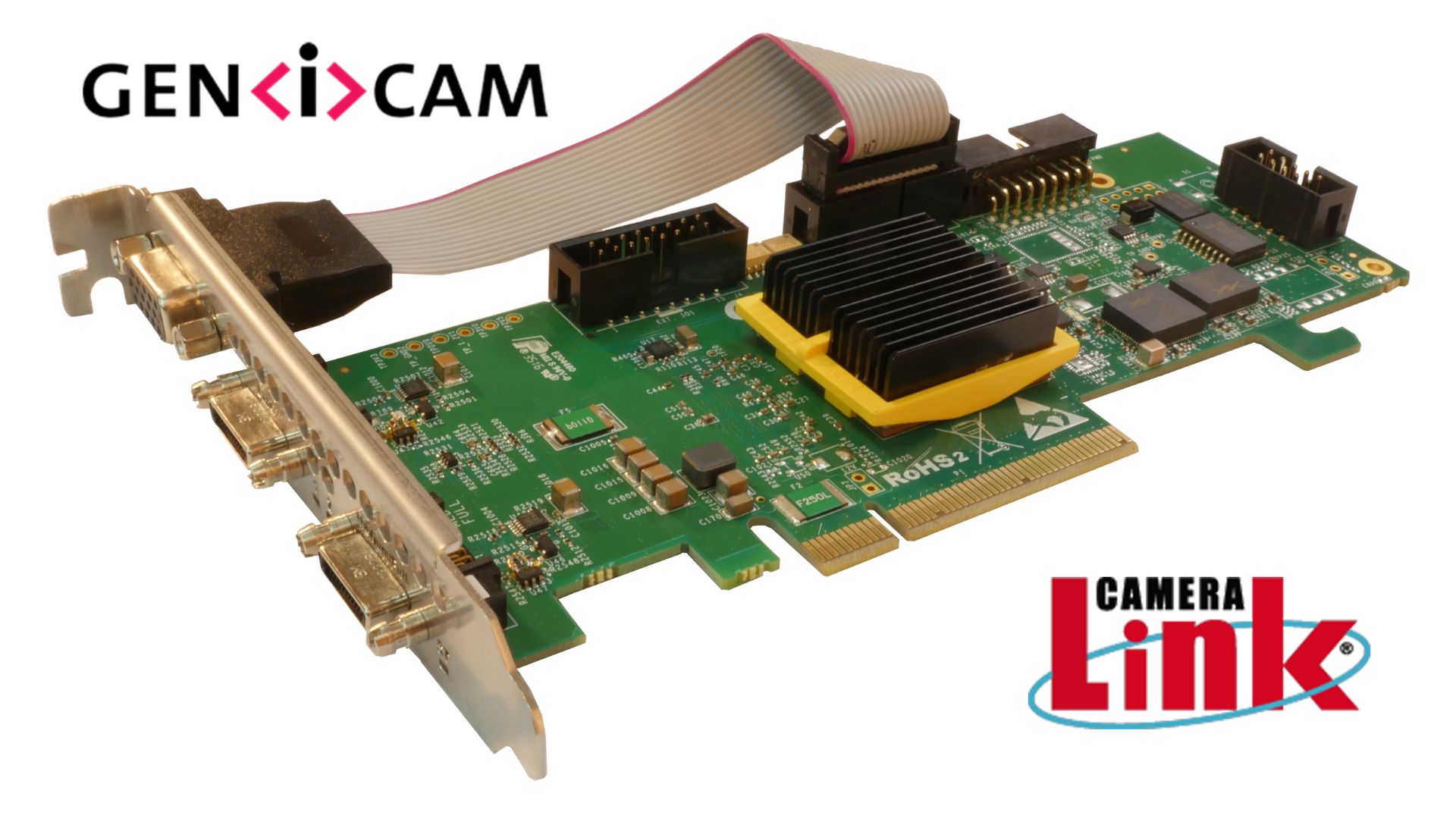

Low-Profile PCIe Frame Grabber card
Passive/Active cooling
1 Year Warranty
SDK
Advanced tools for developing on FPGA
Ordering Information
HawkEye-CL
from Direct
