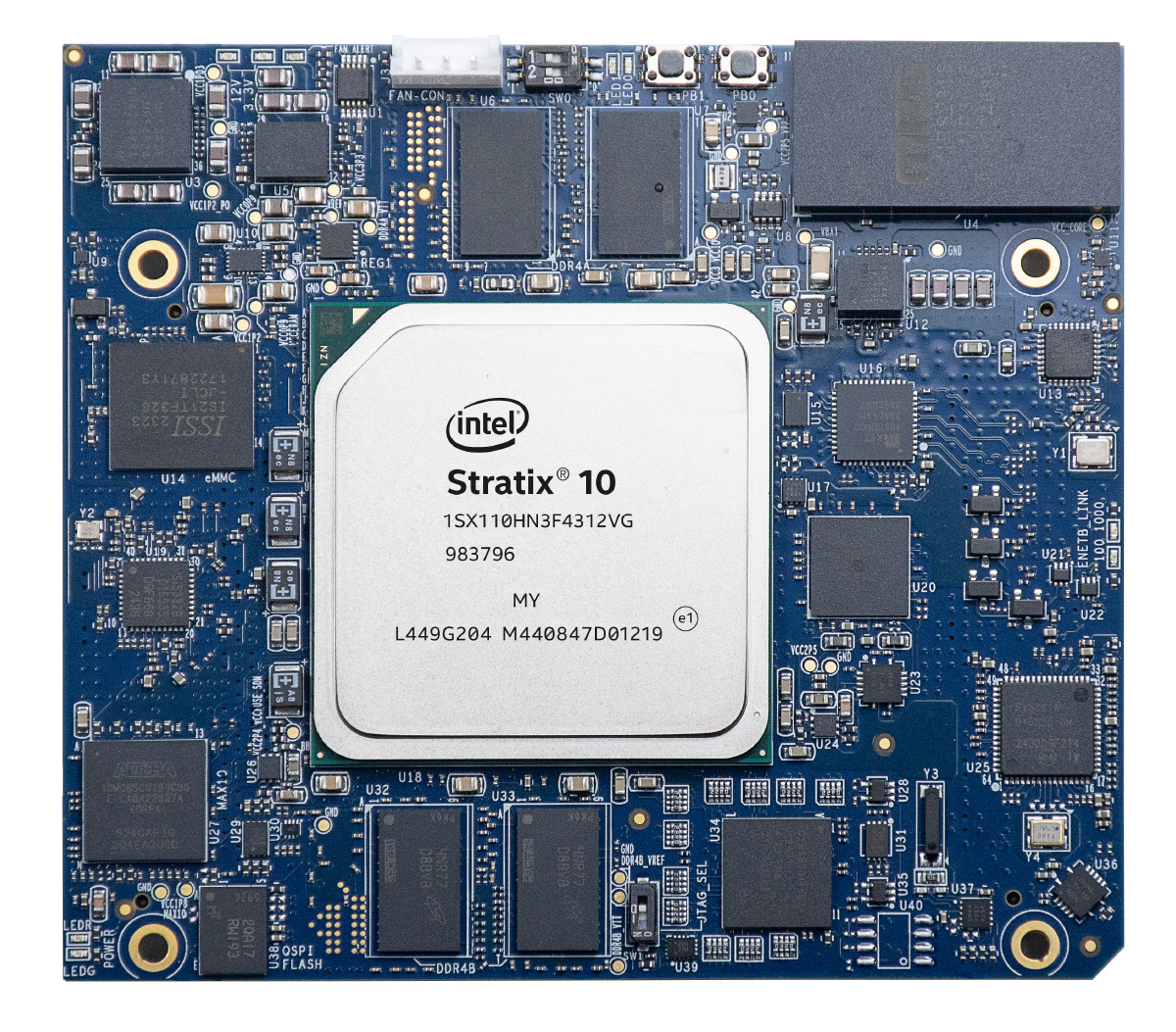

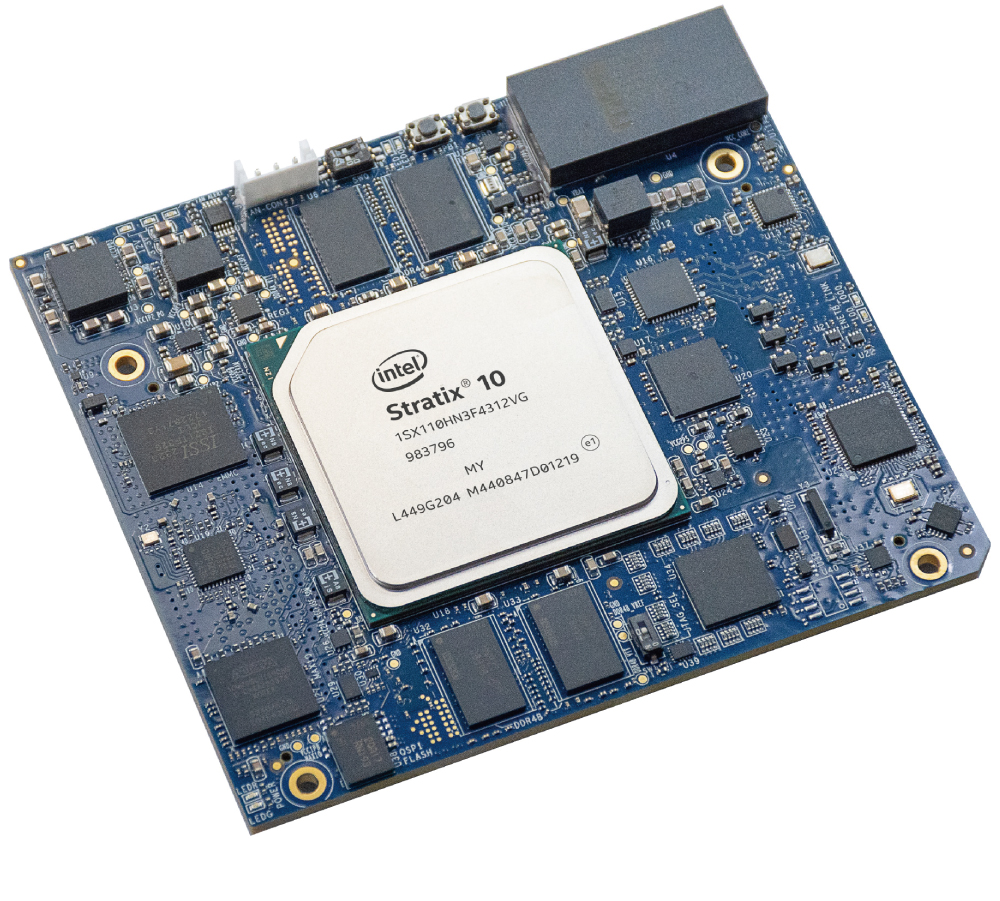

Measuring just 98 mm × 86 mm, the Titan S10 SOM integrates dual 64-bit 4 GB DDR4 memory, USB 3.1, and transceivers up to 12.5 Gbps, offering exceptional bandwidth for demanding workloads. It features up to 154 LVDS channels, 32 transceivers, and a 64-bit quad-core ARM HPS subsystem with onboard eMMC, dual Gigabit Ethernet PHYs, and USB-UART—enabling seamless integration of hardware acceleration with embedded software programmability. Available in FMC and FMC+ interface versions, the SOM provides flexible I/O expansion to suit different system needs. A cost-effective development kit supports evaluation and early development, while industrial-grade certification ensures reliability in applications such as industrial automation, medical devices, military/aerospace systems, test equipment, and advanced embedded platforms. Competitively priced, it delivers significantly more performance and features compared to mid-range Arria 10 FPGA SOMs.

View Partner Website

Partner Product Page

Contact Now

Contact Terasic Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Altera® Stratix® 10 SoC FPGA – Up to 1.1M logic elements
Quad-core ARM Cortex-A53 HPS subsystem
Dual 64-bit 4 GB DDR4 (total 8 GB) memory banks for high-bandwidth processing.
High-speed transceivers – Up to 32 channels, each supporting 12.5 Gbps data rates.
LVDS I/O – Up to 154 LVDS channels for flexible parallel interface connectivity.
USB – USB 3.1 interface for high-speed peripheral connectivity.

Offering Brief

Device Family	Stratix® 10 SX SoC FPGA
Offering Status	Production
Form Factor	98mm x 86mm
Power	12V
Interfaces	USB 3.1, Gigabit Ethernet PHY x2, USB PHY x1, UART
Memory	8GB DDR4, 2GB eMMC,
Connectors	FMC x2 or FMC+ x2,
Switches & LEDs	Reset Button, Power Button, Power LED, User-Programmable LEDs, Switch and Button
Latest Quartus Version Supported	24.3.0
