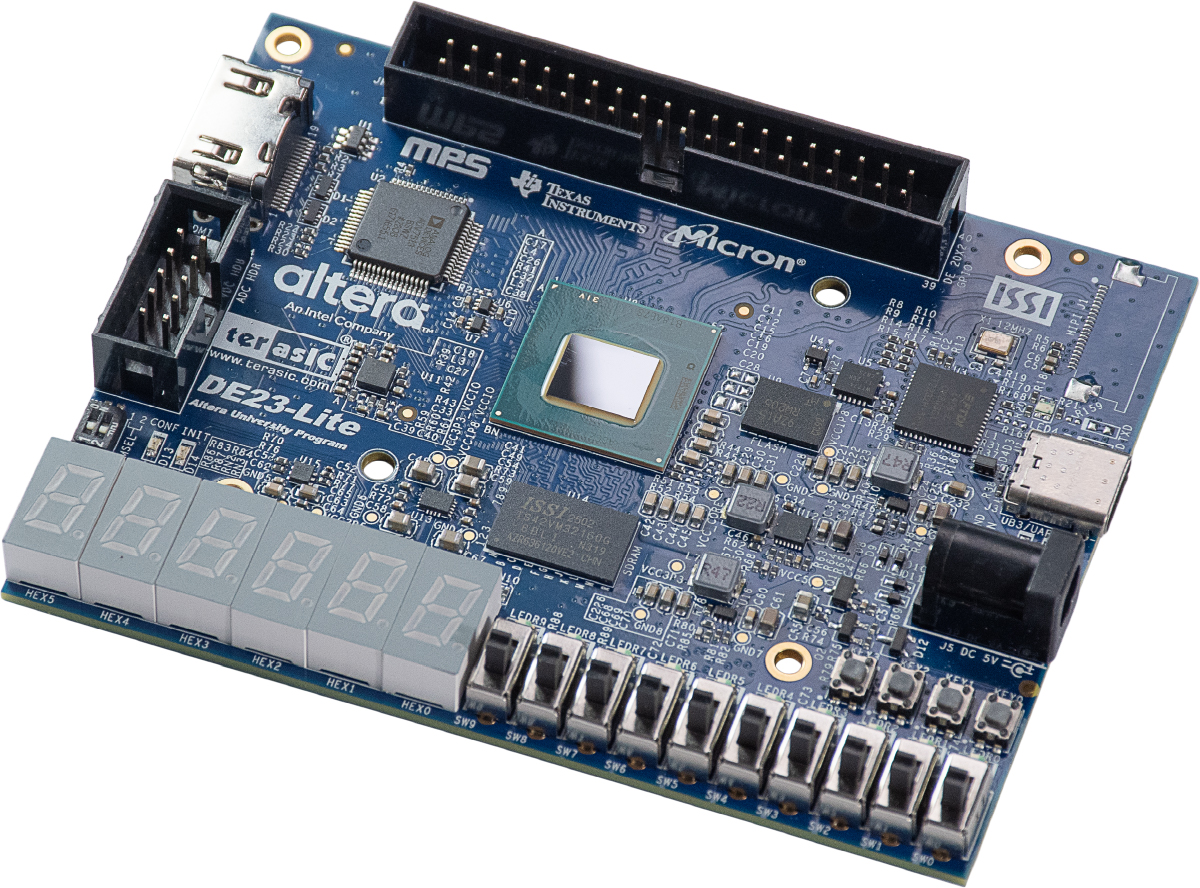

Designed for digital logic and embedded system projects, the DE23-Lite combines the modern Agilex™ 3 FPGA architecture with essential connectivity such as USB Type-C, GPIO, switches, LEDs, and 7-segment displays. It delivers an ideal balance of simplicity, performance, and power efficiency for applications like image and video processing, classroom instruction, and FPGA edge computing. Compared to the DE10-Lite, it enhances I/O flexibility, integrates more peripherals, and leverages Agilex 3’s scalability—making it a forward-looking platform for next-generation educational and prototyping needs.
Terasic Inc.
Key Features
- Altera Agilex™ 3 FPGA (A3CZ135BB18AE7S)
- On-board USB Blaster III
- 64 MB SDRAM with a 32-bit data bus for FPGA applications
- HDMI output (with audio) for multimedia and display capabilities
Offering Brief
Offering Brief
| Device Family | Agilex® 3 FPGAs and SoC FPGAs C-Series |
|---|---|
| Offering Status | Production |
| Form Factor | 75mm x 98mm |
| Power | 5V |
| Interfaces | UART, HDMI Output |
| Memory | 64MB SDRAM, 128Mbit QSPI Flash |
| Connectors | One 2x20 GPIO, 2x5 ADC Header |
| Switches & LEDs | Reset Button, Power Button, Power LED, User-Programmable LEDs, Switch, 7-segment display and Button |
| Latest Quartus Version Supported | 25.1.0 |
Documents
System CD
Ordering Information
P0807
from Direct
$169.00
