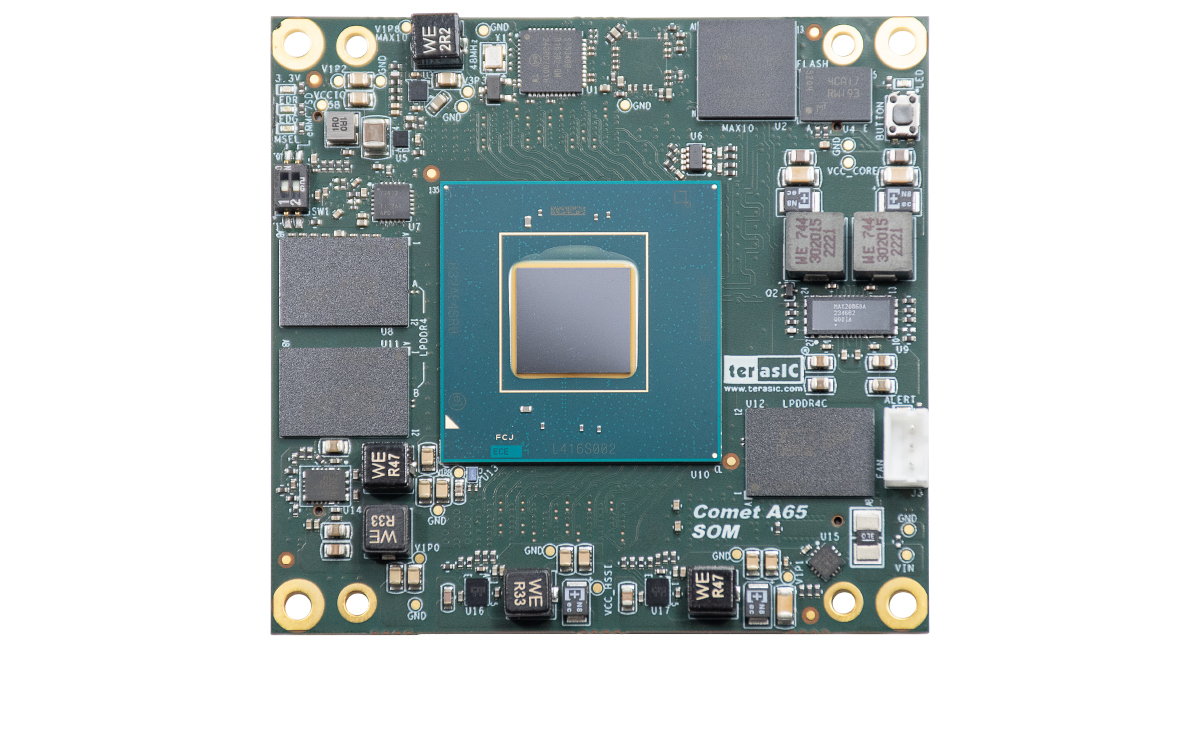

The Comet A65 SOM integrates Altera’s largest Agilex™ 5 SoC FPGA with 656K logic elements, an HPS/ARM subsystem, three 4GB high-throughput LPDDR4 memories, and two high-speed SEAM8 connectors supporting 71 LVDS, 245 LVCMOS, and 24 transceivers. This design enables embedded system developers—even without FPGA expertise—to create advanced industrial solutions in areas such as medical equipment, robotics, industrial communication and control, machine vision, smart cameras, and smart city applications. Available in production-qualified and certified commercial grade, it is purpose-built for volume edge deployment and ruggedized for long life cycle operation.

View Partner Website

Partner Product Page

Contact Now

Contact Terasic Inc.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Powered by Altera® Agilex™ 5 SoC FPGA (A5E2 series) with up to 656K Logic Elements
3 × 4GB LPDDR4 high-throughput memory (total 12GB)
2 × SEAM8 high-speed expansion connectors supporting: 71 × LVDS pairs 245 × single-ended LVCMOS I/Os 24 × high-speed transceivers (up to 25Gbps per channel)
Compact form factor optimized for industrial, vision, robotics, and smart city applications

Offering Brief

Device Family	Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Form Factor	75mm x 75mm
Power	12V
Interfaces	102-pin HVIO, 143 HSIO48, HPS IO
Memory	12GB DDR4, 8GB eMMC
Connectors	SEAM8 Connector x2
Switches & LEDs	Power LED
Latest Quartus Version Supported	25.1.0
