DVB-Satellite FEC Decoder

Overview Key Features Offering Brief What's Included Ordering Information Markets

Commsonic Ltd

Select

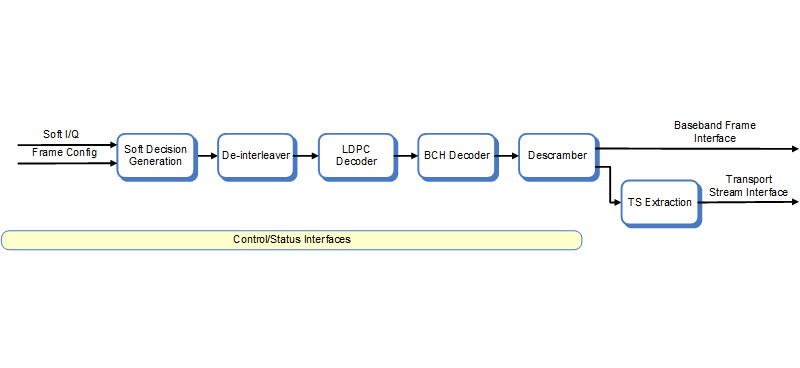

The Commsonic CMS0077 Satellite FEC Decoder has been designed specifically to meet the requirements of the DVB-S2, DVB-S2X and ISDB-S3 advanced wide-band digital satellite standards. The core integrates seamlessly with the Commsonic CMS0059 DVB-S2 / DVB-S2X / ISDB-S3 physical layer demodulator core to provide a complete satellite decoding solution. The core provides all the necessary processing steps to convert a demodulated complex I/Q signal into a standard TS output stream. If configured for ACM operation, the FEC mode can dynamically change on a frame-by-frame basis.

View Partner Website

Partner Product Page

Contact Now

Contact Commsonic Ltd

LeadSource

ASAP Account ID

Record Type Name

Key Features

Supports DVB-S2: QPSK, 8-PSK, 16/32 APSK
Supports DVB-S2X: 64/128/256-APSK
Integrated soft-decision slicing
Integrated LDPC and BCH decoding

Offering Brief

Device Family	Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	No
Latest Quartus Version Supported	23.0.0
Development Language	C/C++, Encrypted VHDL
