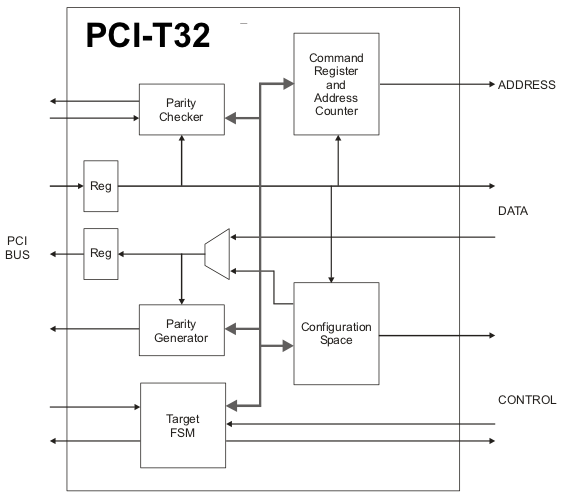

The PCI-T32 implements a target PCI interface compliant with the PCI 2.3 specification. It supports a 32-bit address/data bus and operates up to 33 MHz PCI clock.
The interface core implements 64 bytes of PCI Configuration Space registers. It is possible to extend the Configuration Space up to 256 bytes if required.
The Target supports up to six Base Address Registers with both I/O and Memory space decoding from 16 bytes up to 4 GB.
The Target supported commands are:
• Configuration Read, Configuration Write
• Memory Read, Memory Write, Memory Read Multiple (MRM), Memory Read Line (MRL), Memory Write and Invalidate (MWI)
• I/O Read, I/O Write
The PCI-T32 builds on more than 20 years of CAST PCI IP expertise and has been designed for straightforward reuse, with proven design practices that ensure easy integration and smooth technology mapping. The core is available in synthesizable RTL or as a targeted FPGA netlist, and is delivered with e...
The PCI-T32 implements a target PCI interface compliant with the PCI 2.3 specification. It supports a 32-bit address/data bus and operates up to 33 MHz PCI clock.
The interface core implements 64 bytes of PCI Configuration Space registers. It is possible to extend the Configuration Space up to 256 bytes if required.
The Target supports up to six Base Address Registers with both I/O and Memory space decoding from 16 bytes up to 4 GB.
The Target supported commands are:
• Configuration Read, Configuration Write
• Memory Read, Memory Write, Memory Read Multiple (MRM), Memory Read Line (MRL), Memory Write and Invalidate (MWI)
• I/O Read, I/O Write
The PCI-T32 builds on more than 20 years of CAST PCI IP expertise and has been designed for straightforward reuse, with proven design practices that ensure easy integration and smooth technology mapping. The core is available in synthesizable RTL or as a targeted FPGA netlist, and is delivered with everything required for rapid and successful integration and implementation.
