H16450S: UART with Synchronous CPU Interface

Computer Aided Software Technologies, Inc (dba CAST)

Member

The H16450S is a standard UART providing 100% software compatibility with the popular Texas Instruments 16450 device. It performs serial-to-parallel conversion on data originating from modems or other serial devices, and performs parallel-to-serial conversion on data from a CPU to these devices. Developed for easy reuse in ASIC and FPGA applications, the H16450S is available optimized for several technologies with competitive utilization and performance characteristics.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Capable of running all existing 16450 software
  • Fully Synchronous design. All inputs and outputs are based on rising edge of clock
  • Adds or deletes standard asynchronous communication bits (start, stop and parity) to or from the serial data
  • Independently controlled transmit, receive, line status and data set interrupts
  • Programmable baud generator divides any input clock by 1 to (2^16 - 1) and generates the 16x clock
  • Modem control functions (CTSn, RTSn, DSRn, DTRn, RIn, and DCDn)
  • Modem control functions (CTSn, RTSn, DSRn, DTRn, RIn, and DCDn)
  • False start bit detection; complete status register
Expand Close

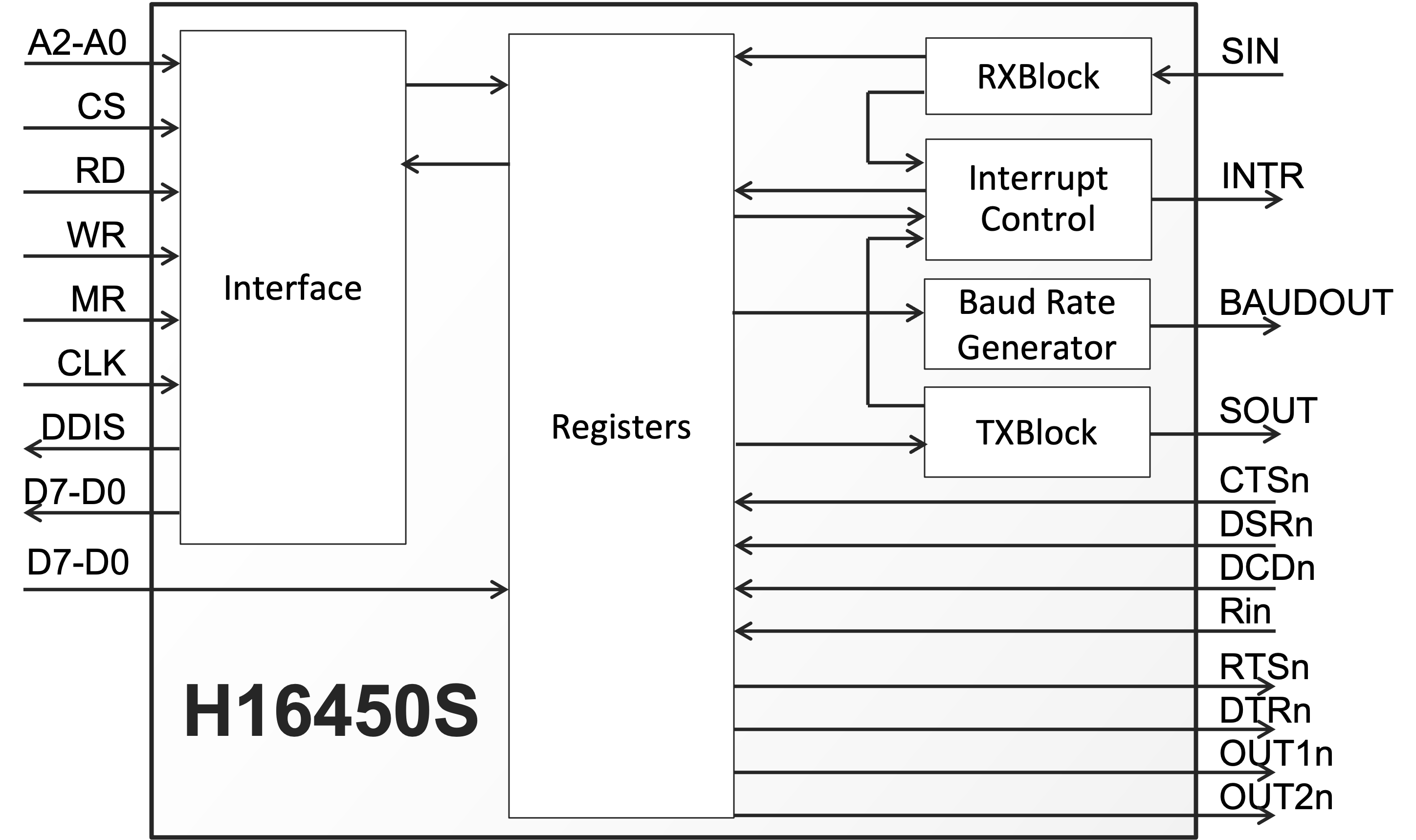

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance Yes
Latest Quartus Version Supported 24.3.1
Development Language Encrypted Verilog, Encrypted VHDL, Verilog, VHDL

Verilog/System Verilog, Encrypted Verilog/System Verilog, VHDL, Encrypted VHDL, or FPGA netlist

Ordering Information

H16450S

from Direct

$0.00

Order Now

Documentation & Resources

design hub icon H16450S datasheet
