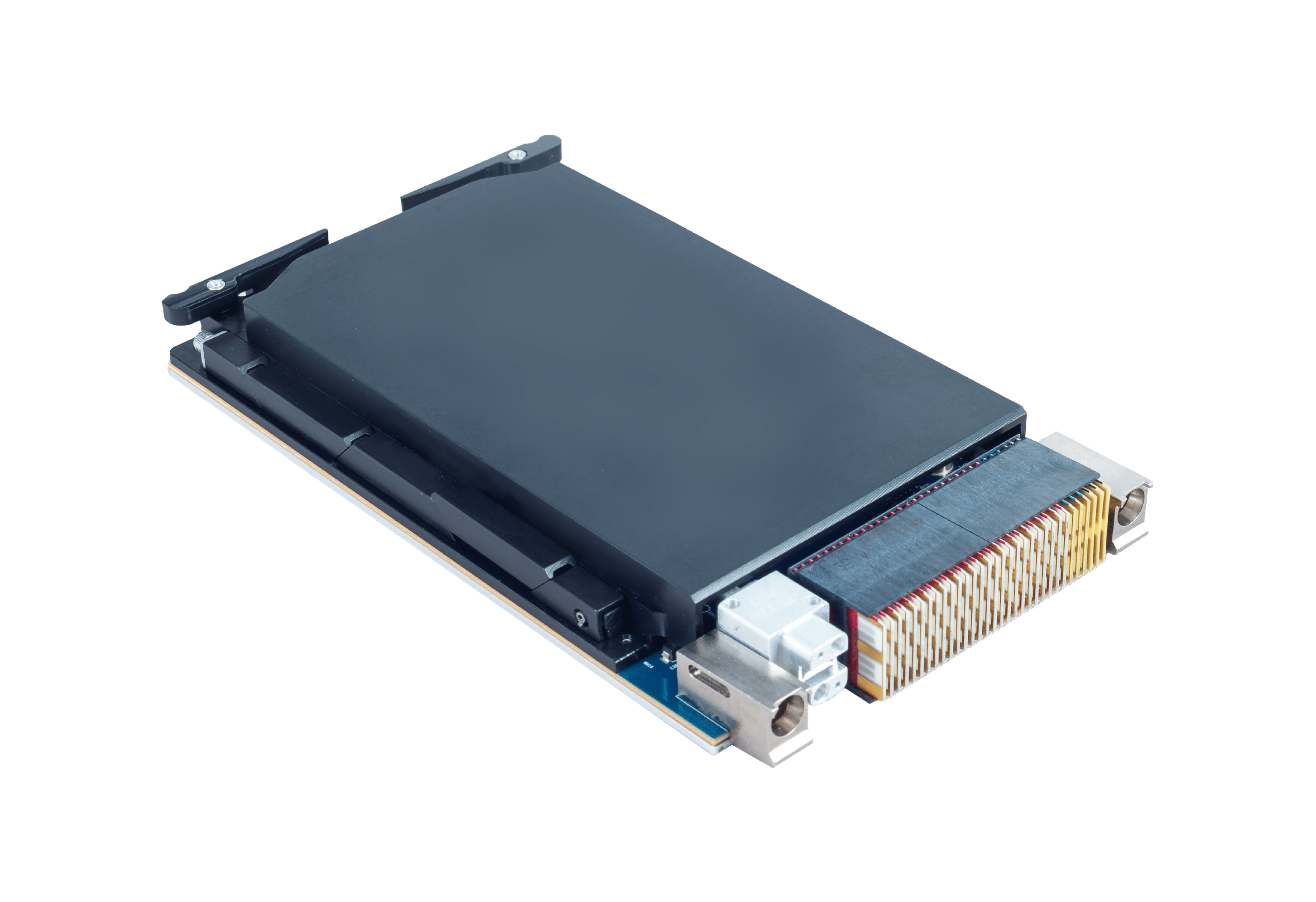

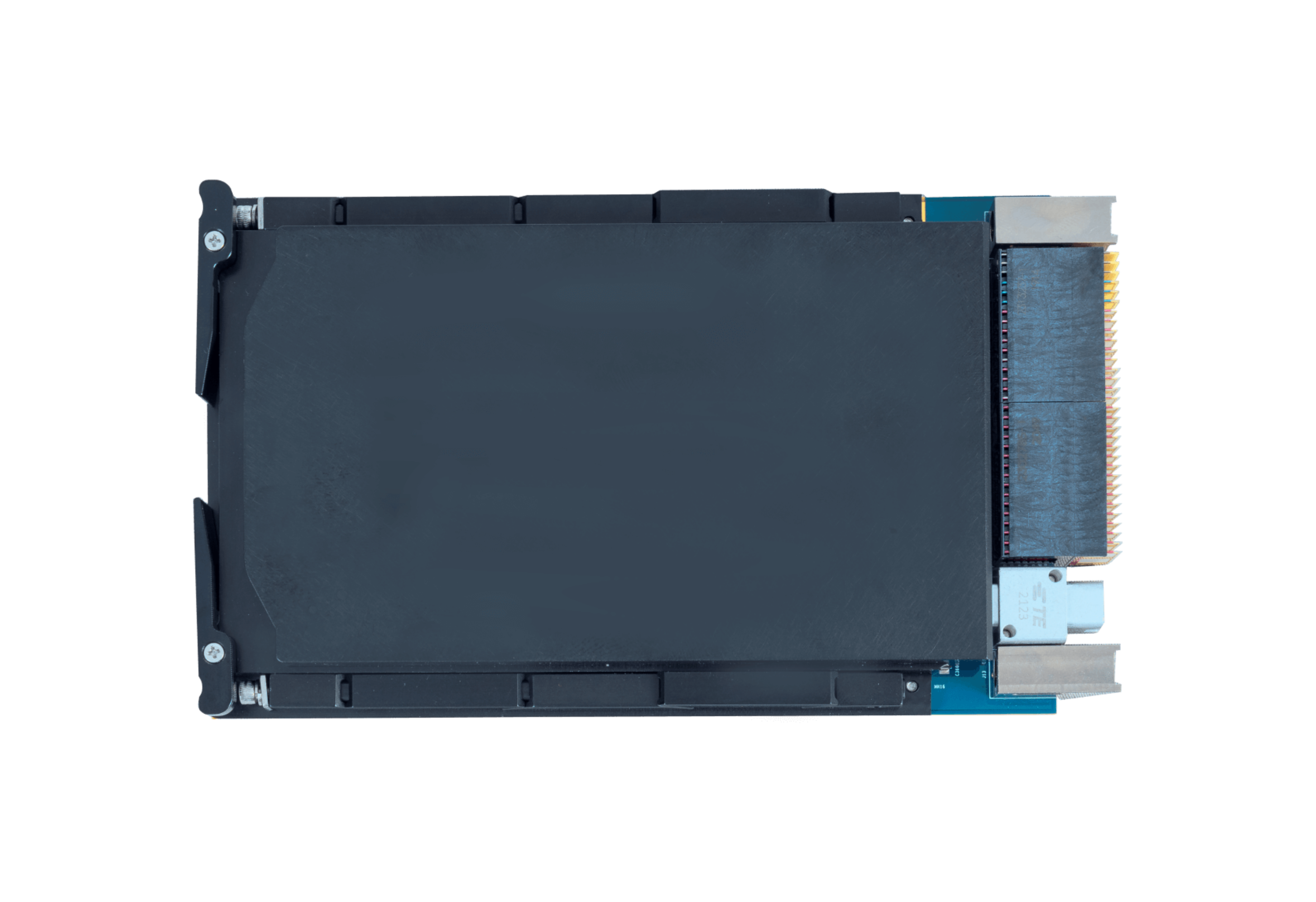

Agilex™ 9 Direct RF 3U VPX Card: iG-G67V

iWave Global

Select

The Agilex™ 9 3U-VPX Module is a compact, rugged computing solution featuring Altera’s high-performance FPGA and quad-core ARM Cortex-A53 processor. Designed for military and defense, it supports high-speed connectivity including Direct RF, 40G/10G/1G Etherent, PCIe Gen4 and up to 25G Ethernet with optical transceivers, delivering powerful performance for real-time edge computing.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • Agilex™ 9 SoC FPGA R17B Package – AGRW014 Device
  • Quad-core 64-bit ARM® Cortex®-A53 up to 1.4GHz
  • 8GB DDR4 for HPS, 8GB DDR4 for FPGA
  • 32GB eMMC Flash and 256MB QSPI Flash
  • ADC x 4 & DAC x 4 with sampling rate up to 64Gsps
  • Up to 1,437,240 Logic elements
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series
Offering Status Sampling
Device OPN(s) on Board AGRW014R17B2I2V
Form Factor 3U VPX (160mm X 100mm)
Power 12V
Interfaces DP01[3:0] 40G, DPutp01/CPutp01 1G, Utility Plane: SYSRESET, NVMRO, SM Bus, JTAG, REF_CLK, AUX_CLK, GPIO, 12V/3.3V/VBAT; Dual QSFP-DD-800, EP0-7 PCIe Gen3x8, EP8-15 FPGA IO x32, 4 Firefly fiber, 4 ADC/4 DAC @64Gsps, trigger & 10MHz sync
Memory 8GB DDR4 for HPS, 8GB DDR4 for FPGA, 32GB eMMC Flash (Upgradable), 2Kb EEPROM (Upgradable), 1Gb QSPI Flash (Upgradable)
Connectors 3 x 3U VPX Backplane Connectors
Switches & LEDs Boot switch and Statues LED
Latest Quartus Version Supported 25.1.1

3U VPX Card

System on module

Ordering Information

iG-G67V

from Direct

Order Now

iG-G67V

from EDA/IDE/Software

Order Now
