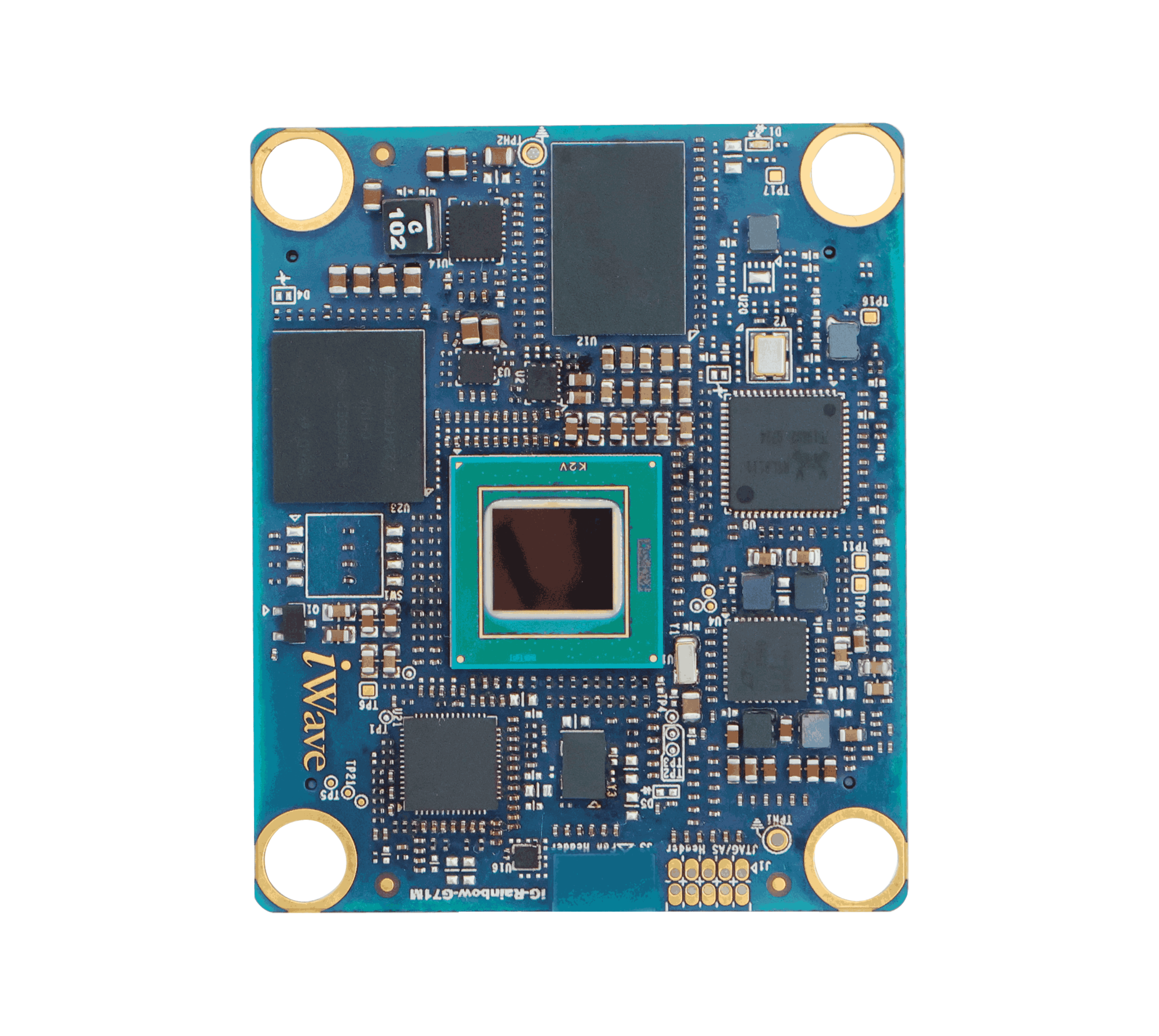

The Agilex™ 3 is a compact, power-efficient System on Module (SoM) built on Agilex™ 3 C-Series FPGA architecture, featuring the M16A package and supporting Group C devices such as A3C100 and A3C135. With a dual-core Arm® Cortex®-A55 processor operating at up to 800 MHz, the SoM provides up to 135K logic elements and integrates 4 GTS transceivers supporting up to 12.5Gbps for high-speed connectivity. Designed for performance at the edge, it comes equipped with 2GB LPDDR4 (expandable up to 8GB), 32GB eMMC (expandable to 128GB), and onboard QSPI Flash, making it an ideal platform for industrial, embedded vision, and low-power computing applications.

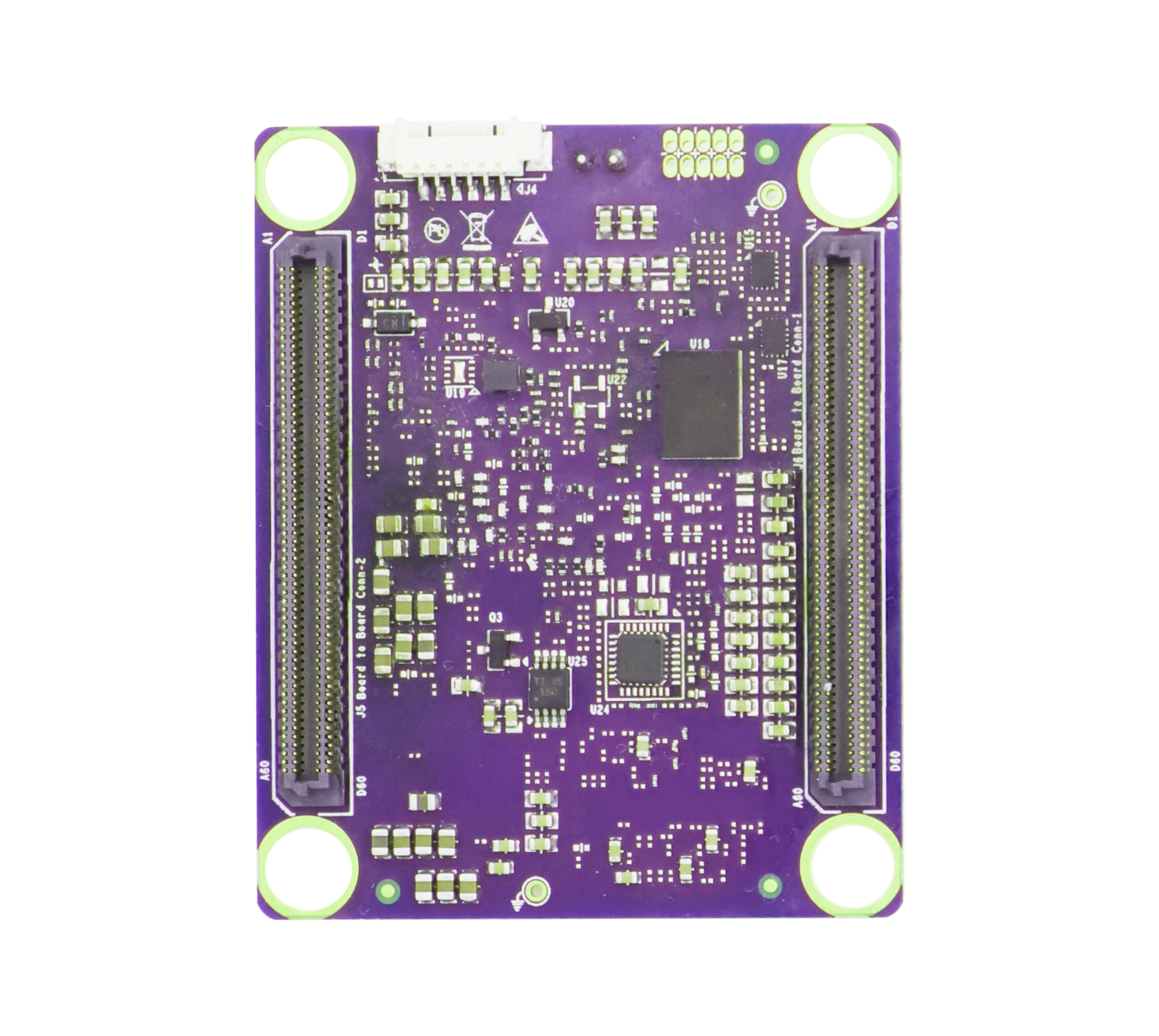

The module features a rich set of interfaces including USB 3.1, RGMII Ethernet, USB 2.0 OTG, I2C, UART, and SD, along with 60 pairs of FPGA high-speed I/Os, 32 HVIOs, and dual 240-pin board-to-board connectors for flexible system integration. With integrated 2.5G Ethernet PHY, USB ULPI transceiver, and clock synthesizer, the G71M ensures a complete solution for next-generation edge designs. Measuring just 50mm x 60mm, and supporting Linux BSP, the SoM is REACH and RoHS3 compliant and rated for extended temperature operation (0°C to +85°C), making it an ideal choice for space-constrained, compute-intensive industrial environments.
