MitySOM-C10L - Cyclone® 10 LP System on Module

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Critical Link LLC

Select

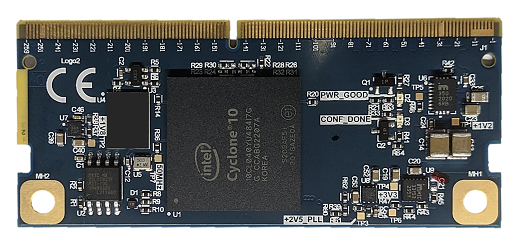

The MitySOM-C10L series of highly configurable, small form-factor System-on-Modules features an Altera Cyclone 10 LP (Low Power) field programmable gate array (FPGA) and include on-board power supplies, NOR FLASH and a HyperRAM memory subsystem, and memory controller IP and reference designs from Synaptic Labs LLC. The MitySOM-C10L delivers a low power, flexible, low cost FPGA solution for rapid development and deployment of new designs. Using a NIOS II Softcore processor, the MitySOM-C10L provides a complete and flexible CPU infrastructure for a low cost integrated embedded system.

The MitySOM-C10L has been designed to support several upgrade options. These include various FPGA densities, speed grades, and operating temperature specifications (including commercial and industrial temperature ranges).

View Partner Website

Partner Product Page

Contact Now

Contact Critical Link LLC

LeadSource

ASAP Account ID

Record Type Name

Key Features

Production-ready SOM featuring a range of FPGA densities, memory configurations, and operating temperature ranges
Long term availability and product support
US-based engineering and production
Lifetime access to our technical support site, as well as access to application engineering resources and other services
Customers get access to Critical Link's development kit base board design files to jump start their own design
ISO 9001:2015 certified

Offering Brief

Device Family	Cyclone® 10 LP FPGA
Offering Status	Production
Device OPN(s) on Board	10CL016YU484C8G;10CL080YU484C8G

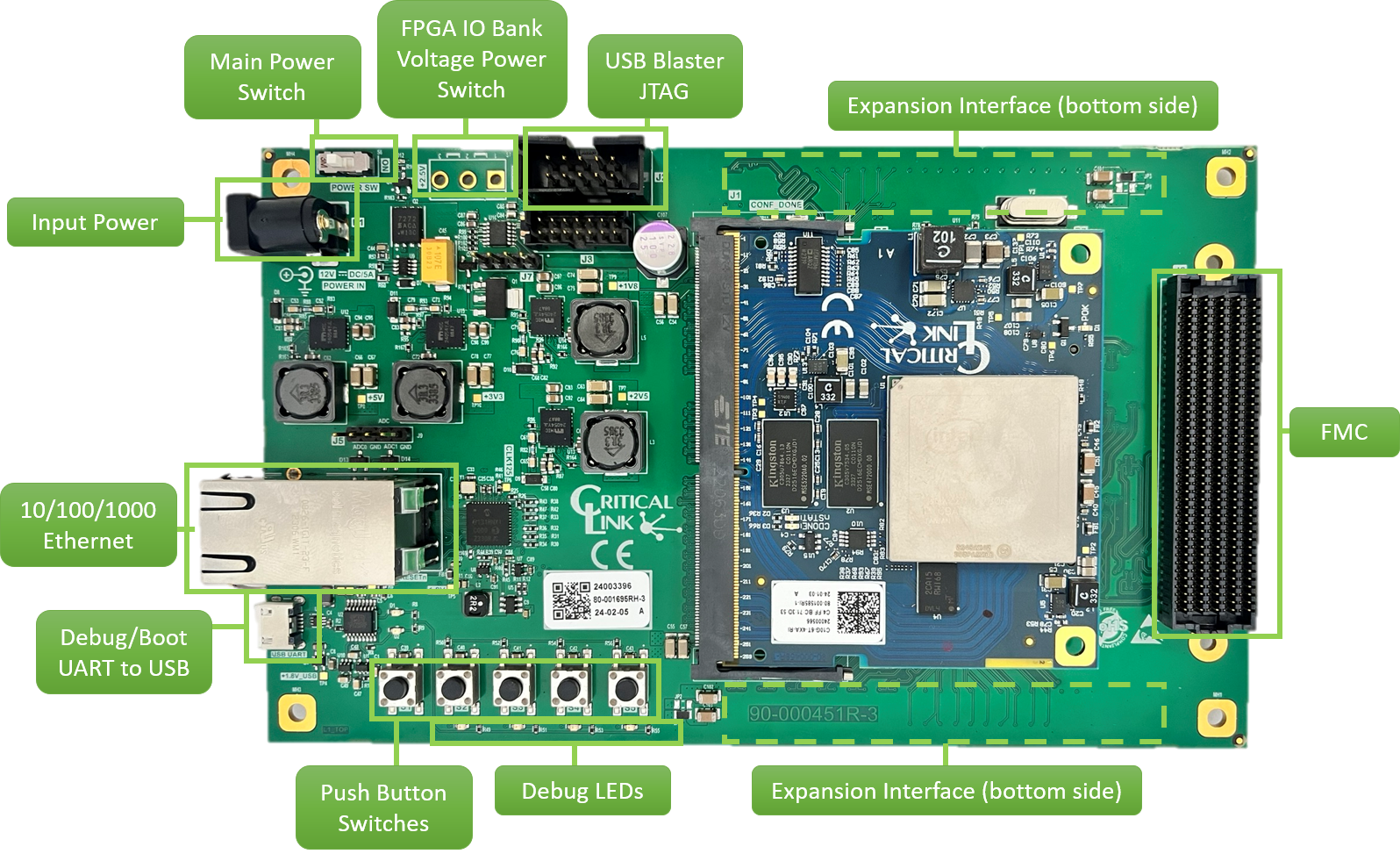

Hardware Platforms Supported	Cyclone® 10 LP FPGA Development Kit
Demo	No
Form Factor	2.74" x 1.18"
Power	Integrated Power Management: Single +5V Input for on-board needs; User defined Bank IO Voltage
Interfaces	180 FPGA IO pins; 38 True & 28 Emulated LVDS pairs; 3 groups of FPGA banks, each providing 64 pins with configurable VCCIO; 3 PLL clock output pairs; 12 FPGA clock input pins; 1.2, 1.8, 2.5, 3.3 LVCMOS, LVDS, various SSTL & HSTL standards supported
Memory	Up To 32MB HyperRAM at 200 MB; Up To 32MB QPSI NOR FLASH; Includes memory controller IP and reference designs from Synaptic Labs LLC specifically targeted to the MitySOM-C10L
Connectors	260-pin SODIMM edge connector
Switches & LEDs	yes
Latest Quartus Version Supported	22.1.0
