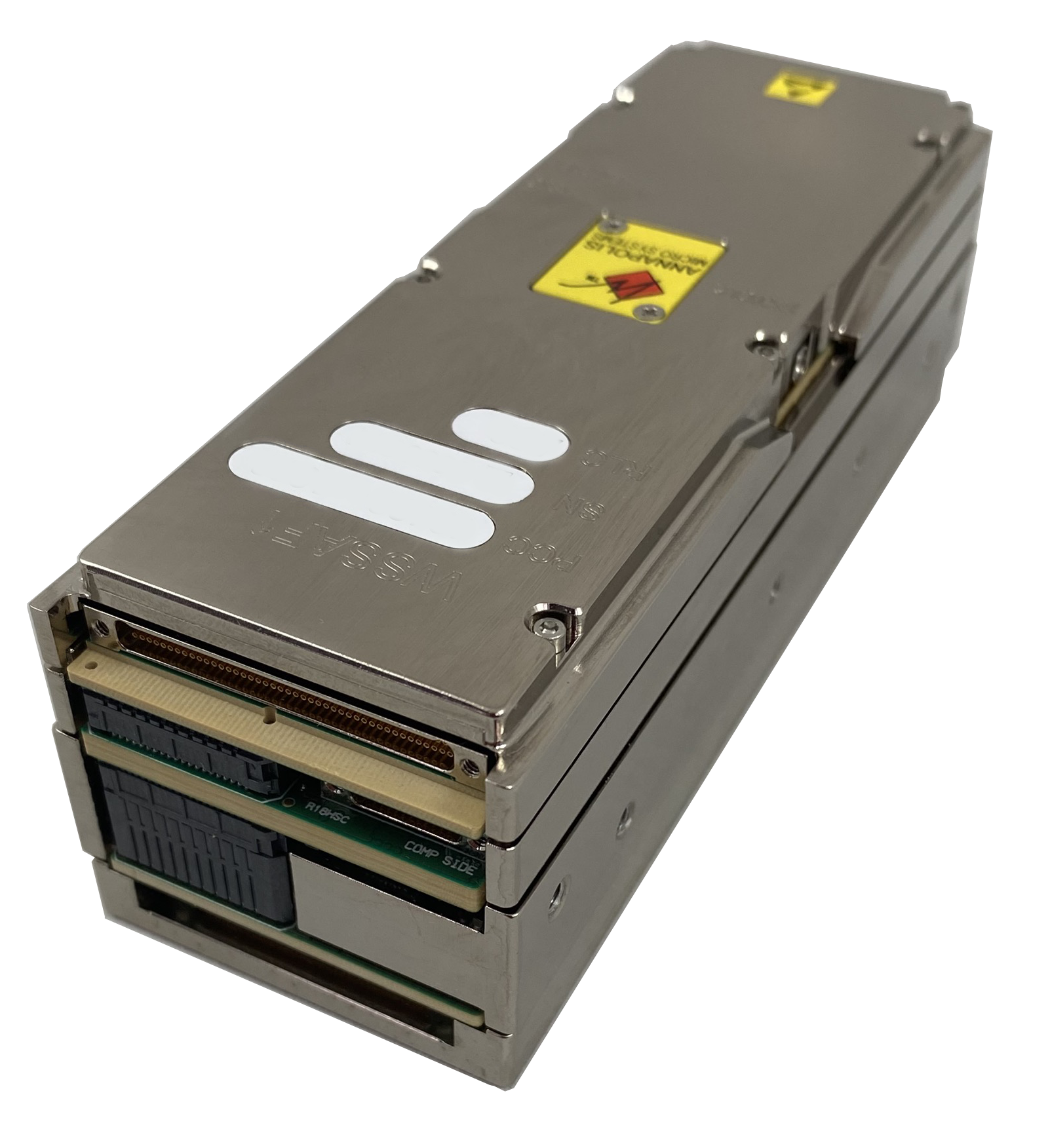

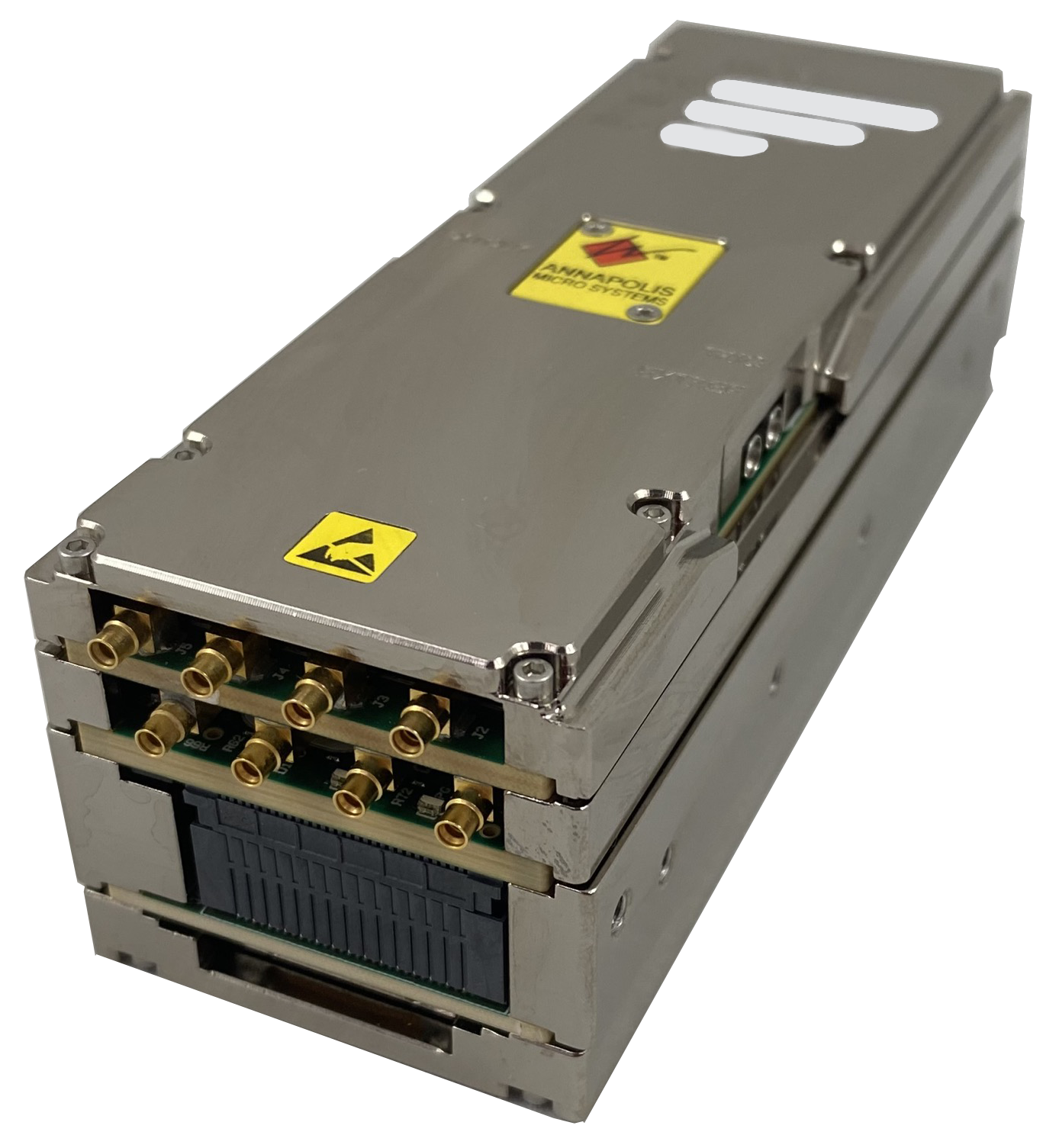

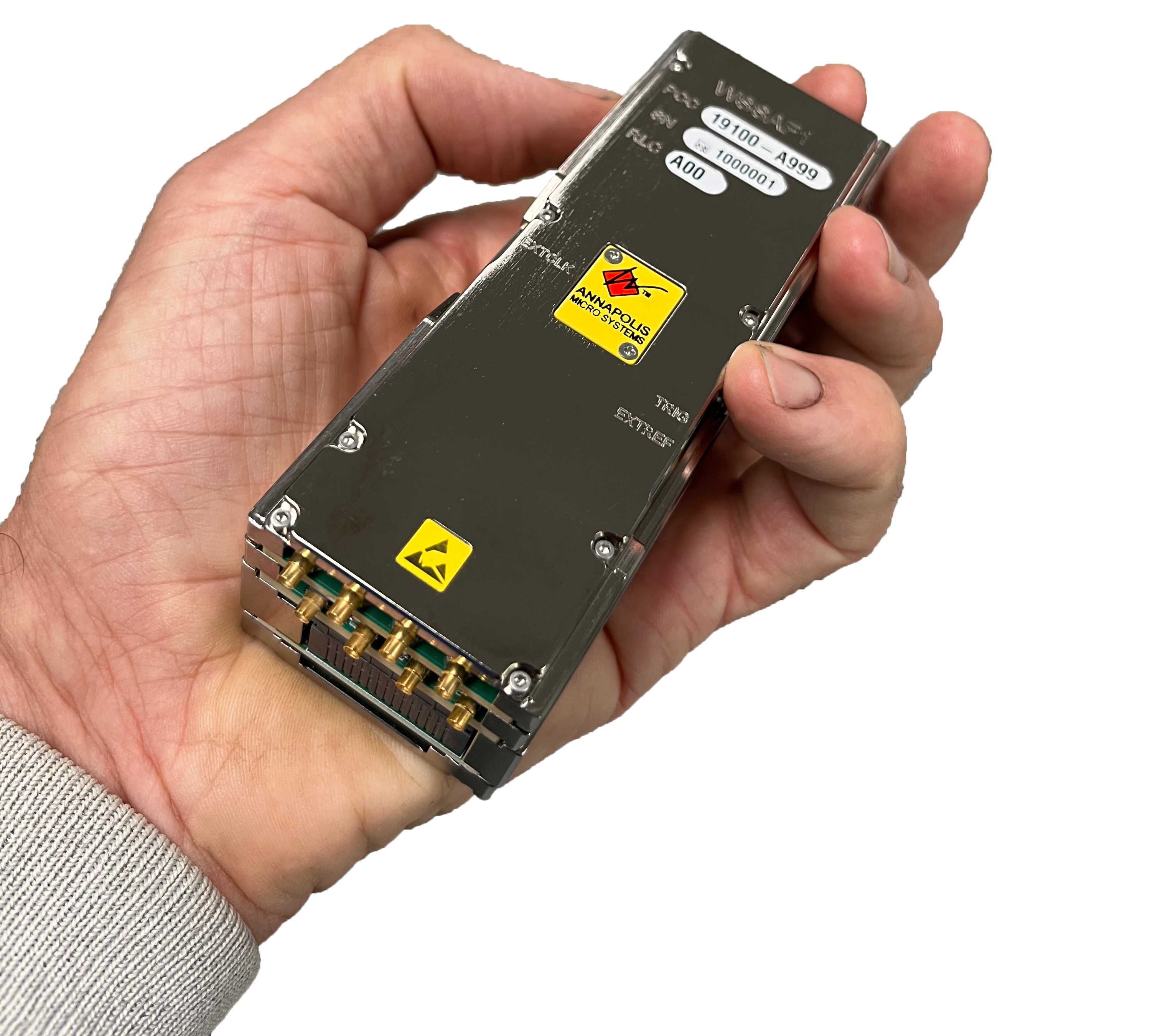

WILDSTAR SAF1 Small Form Factor Module (WSSAF1)

Annapolis Micro Systems, Inc.

Select

WSSAF1 Small Form Factor Module is a SWaP-optimized direct RF solution that delivers high-performance processing and four channels each of 64 Gsps ADC and DAC at a 10-bit resolution. It is designed to mate with modular RF and digital I/O cards and includes a development kit. Includes capability to synchronize across many units.

Typical deployments include high-performance edge applications close to the sensor and in tight-envelope man-portable environments in electronic warfare, SIGINT, radar, and other C5ISR applications.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • 64 GSps Direct RF
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series
Offering Status Production
Device OPN(s) on Board AGRW014R17B2I1V;AGRW014R17B2I2V;AGRW014R17B3I3V
Form Factor Small Form Factor
Power 100W
Interfaces 10 GBase-T Ethernet; one GBase-T Ethernet; on-board PLL/VCO sample clock; internal or external reference clock
Memory 4 GB DDR4 SDRAM; 32 GB eMMC NAND Drive
Connectors Two RS232 UARTs; eight expansion GPIO; one RS422 GPIO port; JTAG port
Switches & LEDs No LEDs
Latest Quartus Version Supported 24.2.0

Full board support package; VHDL flow supports high-level synthesis

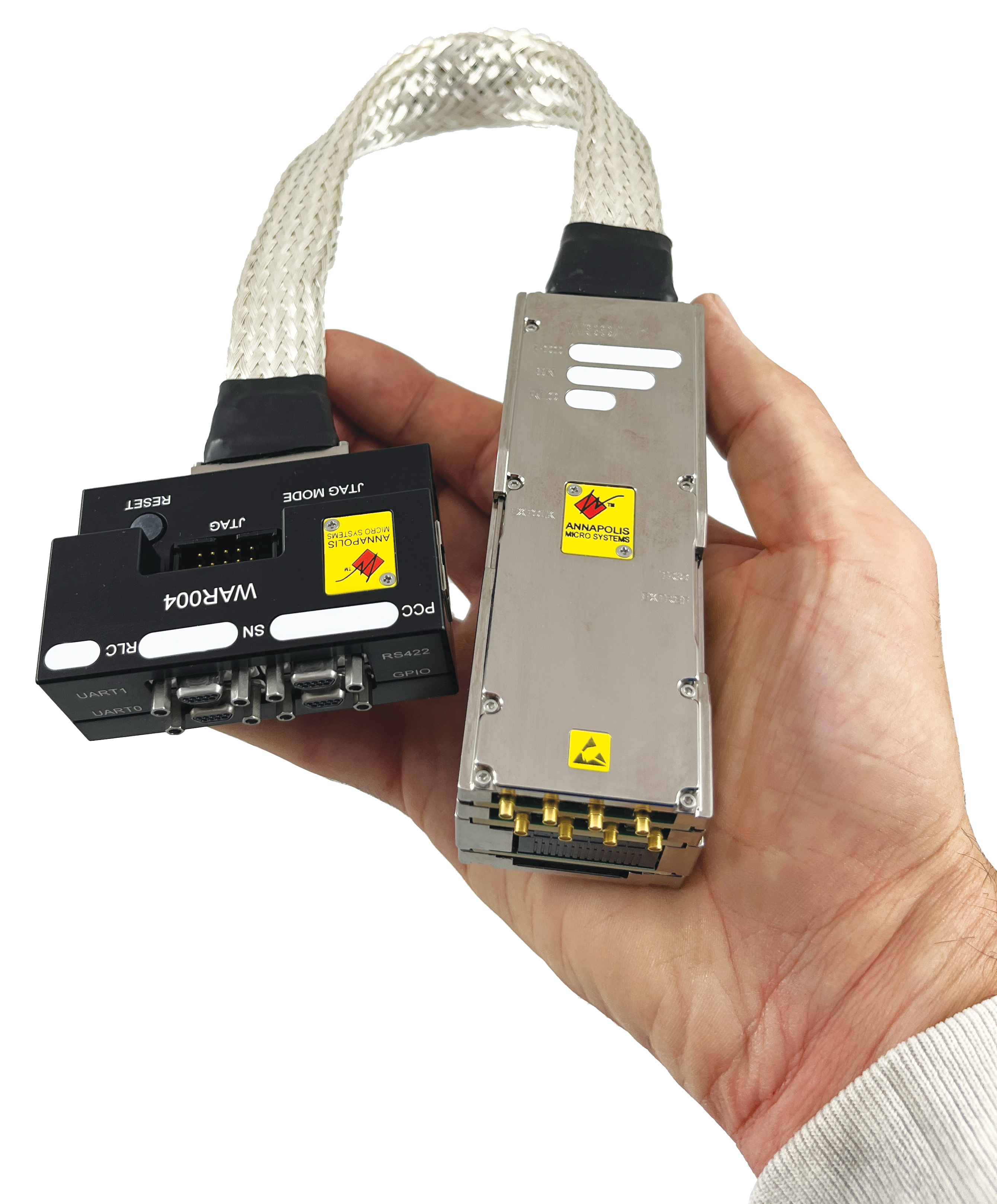

Development Kit

Options for back-end personalization

Ordering Information

WSSAF1-xxx

from Direct

$0.00

Order Now

Documentation & Resources

design hub icon WSSAF1 Datasheet
