Design Gateway’s TOE25G-IP is a fully hardware-based TCP Offload Engine designed for Altera FPGAs, enabling high-throughput communication over 25Gb Ethernet. By offloading the TCP/IP stack entirely to hardware, this IP core eliminates the need for CPU intervention, reducing latency, improving determinism, and enhancing system reliability—making it ideal for high-performance computing systems, high-speed data acquisition, and mission-critical networking.

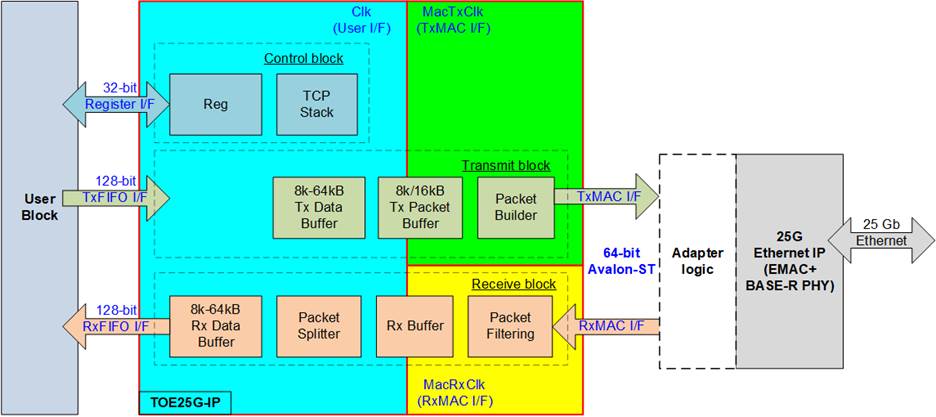

The TOE25G-IP supports key TCP functions such as connection establishment, termination, retransmission, and flow control, all handled automatically in logic. With a user-friendly interface—128-bit FIFO for data transfer and register-based control—the IP simplifies integration into a wide range of systems. It supports connection establishment/termination in both client and server modes, and reference designs are available for Altera Agilex™ and Stratix® 10 FPGA platforms, accelerating development and deployment ...
Design Gateway’s TOE25G-IP is a fully hardware-based TCP Offload Engine designed for Altera FPGAs, enabling high-throughput communication over 25Gb Ethernet. By offloading the TCP/IP stack entirely to hardware, this IP core eliminates the need for CPU intervention, reducing latency, improving determinism, and enhancing system reliability—making it ideal for high-performance computing systems, high-speed data acquisition, and mission-critical networking.
The TOE25G-IP supports key TCP functions such as connection establishment, termination, retransmission, and flow control, all handled automatically in logic. With a user-friendly interface—128-bit FIFO for data transfer and register-based control—the IP simplifies integration into a wide range of systems. It supports connection establishment/termination in both client and server modes, and reference designs are available for Altera Agilex™ and Stratix® 10 FPGA platforms, accelerating development and deployment for time-sensitive applications.
