Lossless and Lossy JPEG 2000 Encoder

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Alma Technologies S.A.

Select

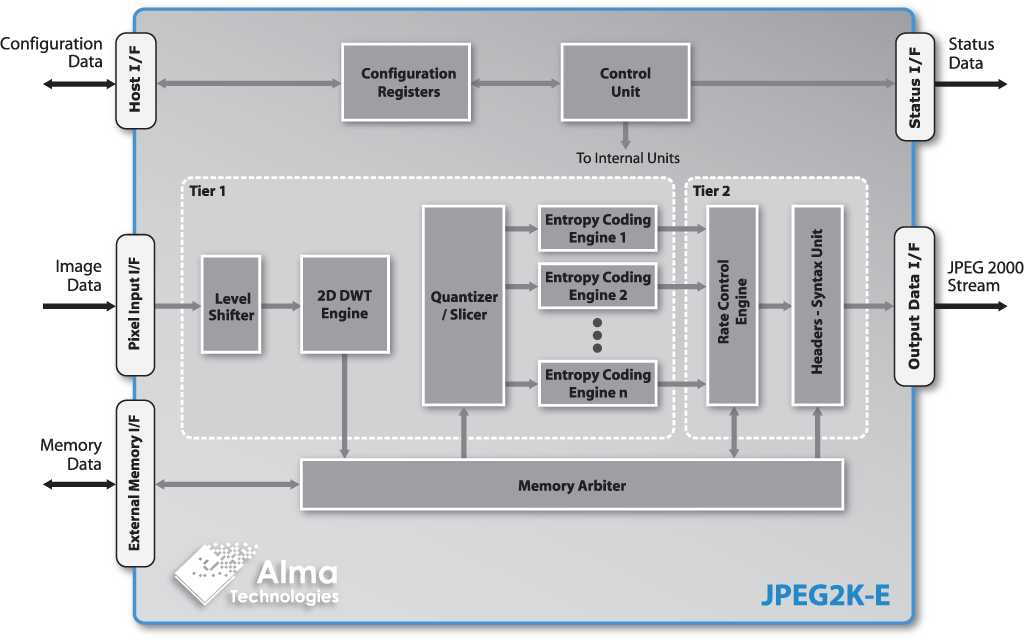

The JPEG2K-E core from Alma Technologies is a still image and video encoder that implements Part 1 of the JPEG 2000 standard. It offers up to 16-bit per component Numerically Lossless or Lossy compression, including advanced - high-quality and extremely accurate - rate control functionality. The JPEG2K-E can also optionally include support for single-component Multiple Quality Layers encoding in LRCP progression order. It is available for Altera FPGA and SoC based designs.

The JPEG 2000 compression standard offers an advanced quality and feature set, lending itself to a wide range of uses from digital cameras through to space imaging and other key sectors. Full compliance to the ISO/IEC 15444-1 JPEG 2000 standard makes the JPEG2K-E core ideal for interoperable systems and devices.

View Partner Website

Partner Product Page

Contact Now

Contact Alma Technologies S.A.

LeadSource

ASAP Account ID

Record Type Name

Key Features

Up to 65,535 x 65,535 image resolution
Up to 16,384 x 16,384 tile resolution
1, 2, 3 and 4 component images
Up to 16-bit per component
4:4:4, 4:2:2, 4:1:1 and 4:2:0 sampling formats
Numerically lossless or lossy compression
Advanced rate control engine
Single or multiple quality layers encoding
CPRL or LRCP (single component only) progression order
Error resilient encoding features
Standard compliant code stream (JPC) or file (JP2) output
No host CPU assisted, standalone operation

Offering Brief

Device Family	Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	No
Design Examples Available	No
Demo	No
Compliance	No
Latest Quartus Version Supported	24.3.1
Development Language	VHDL
