TCPIP-1G/10G: 1G/10G TCP/IP Hardware Stack

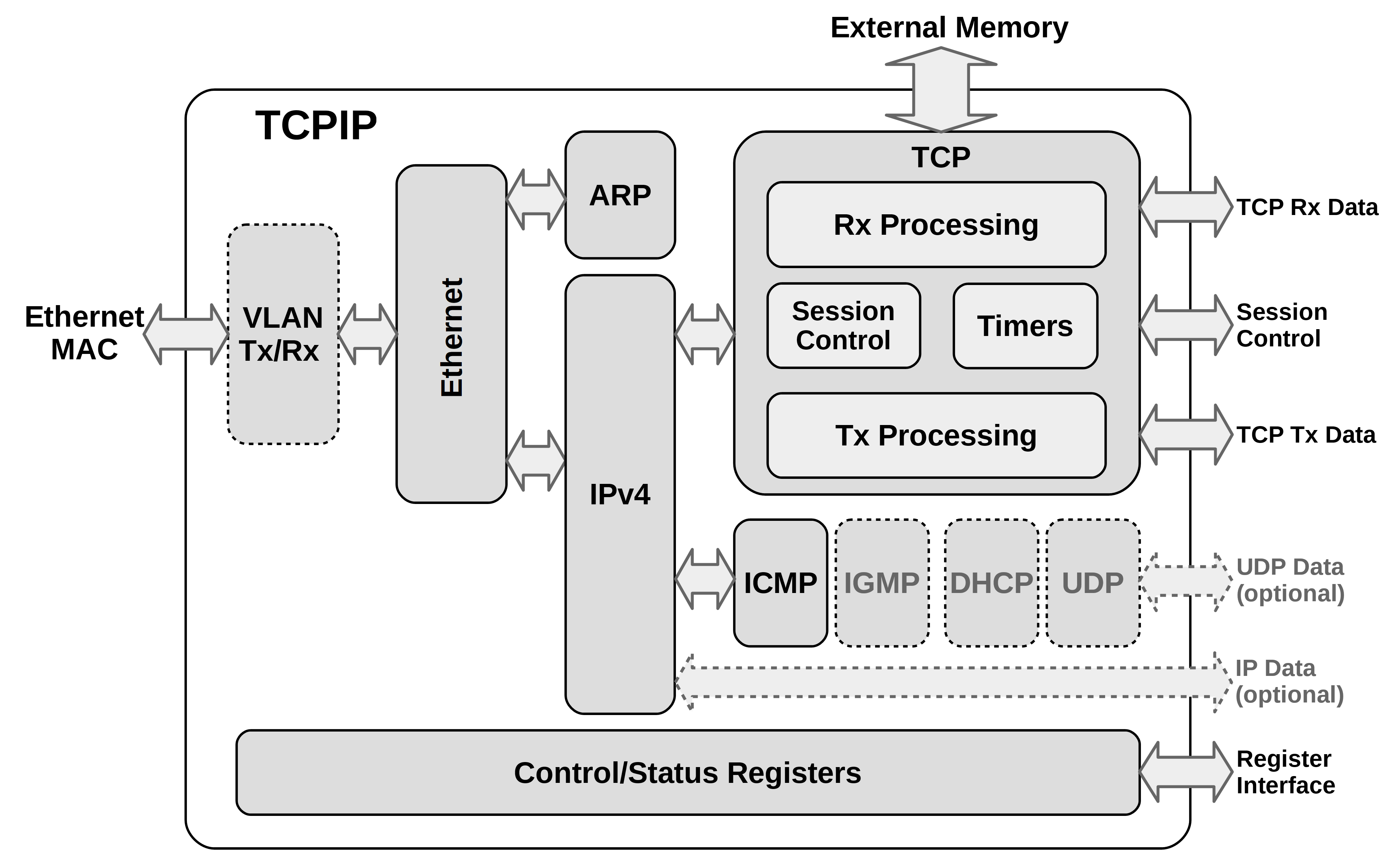

The TCPIP-1G/10G core is a complete TCP/IP hardware protocol stack, enabling systems to connect to IP networks and exchange TCP data without a host processor. Acting as server or client, it autonomously opens, maintains, and closes TCP connections. Network parameters are configured via control registers, while data is exchanged over streaming interfaces. The core is highly configurable: up to 32,768 simultaneous TCP sessions can be supported, or just one for minimal area designs. Options include a DHCP client, reassembly of out-of-order packets, and integration of a UDP hardware stack with IGMPv3 multicast. Users may select cut-through mode for ultra-low latency and minimal buffering, or store-and-forward mode for verified, in-order delivery. Available in RTL or FPGA netlist form, the core is rigorously verified and provided with testbench, synthesis/simulation scripts, and full documentation, making it ideal for applications ranging from servers to edge devices.
