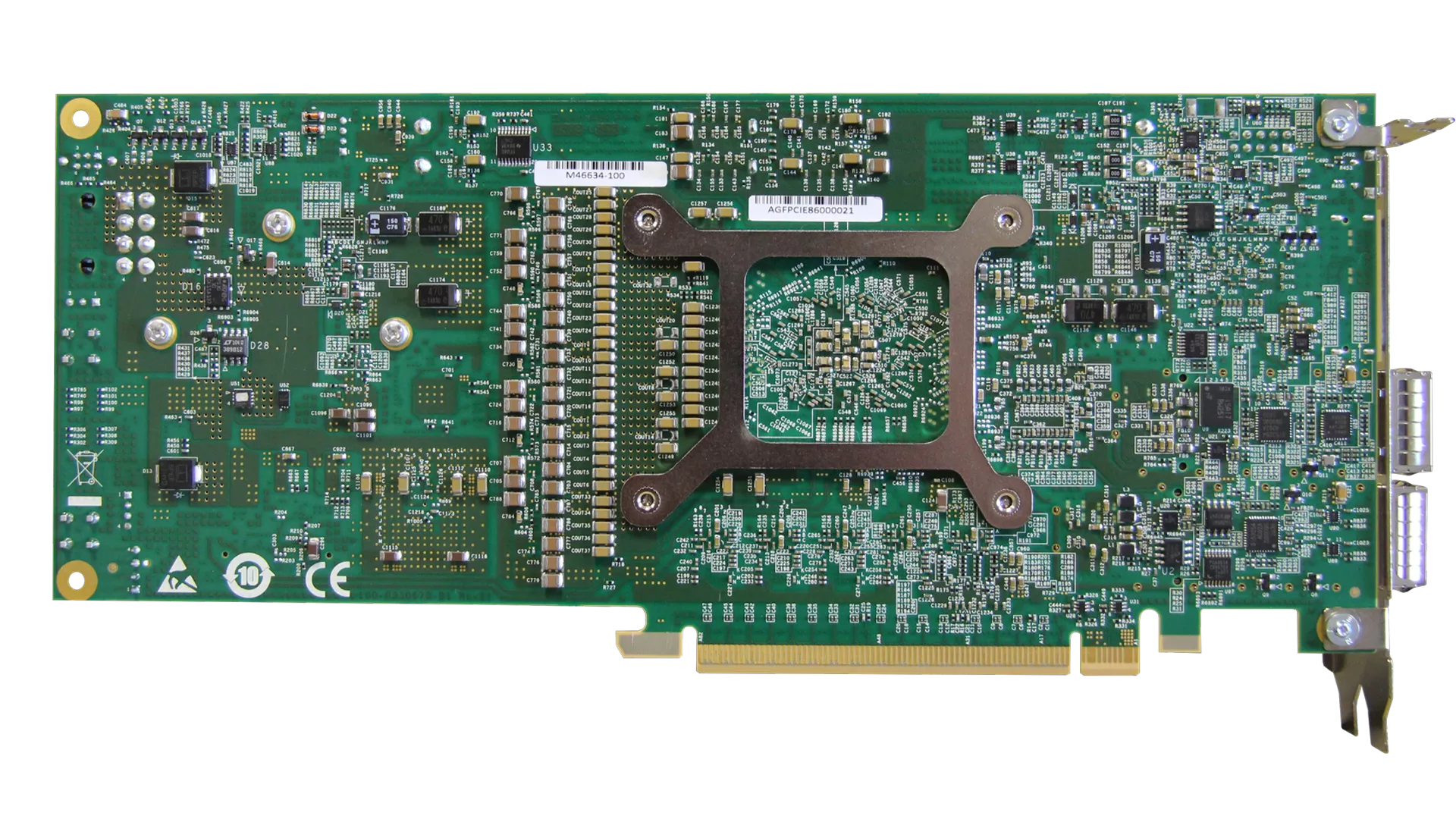

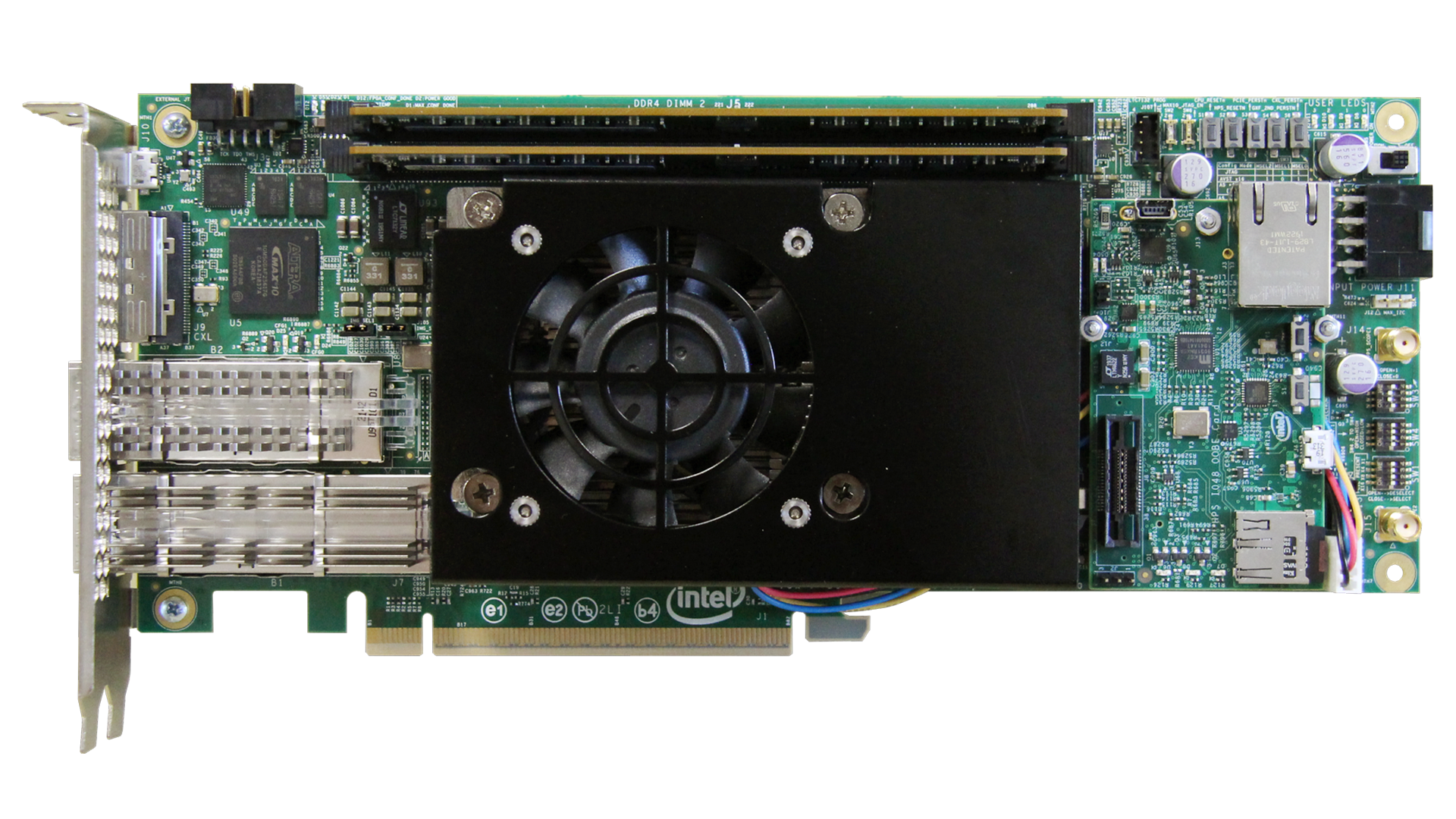

Agilex™ 7 FPGA F-Series Development Kit (2x F-Tile) (AGF023)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

The Agilex 7 FPGA F-Series (2 × F-Tiles) Development Kit is a robust platform for evaluating and prototyping high-performance FPGA designs with advanced transceiver capabilities. Designed to support PCIe Gen4, QSFP-DD, QSFP, and CXL interfaces, the kit enables developers to explore a wide range of high-speed connectivity applications. It includes up to two DDR4 DIMM slots and a dedicated DDR4 component interface for HPS, making it ideal for memory-intensive workloads.

The kit is equipped with a comprehensive Board Test System (BTS) GUI, allowing users to validate transceiver performance, memory throughput, and GPIO functionality. It also includes Clock Controller and Power Monitor tools for fine-tuning and monitoring system behavior. With flexible configuration options, built-in programming tools, and support for both benchtop and PCIe system integration, this kit is a powerful tool for accelerating development in data center, networking, and embedded applications.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features dual F-Tile Agilex 7 FPGA (AGFD023R24C2E1VC) supporting up to 56 Gbps PAM4 and 32 Gbps NRZ transceivers
Includes PCIe Gen4 x16, QSFP-DD, QSFP, and CXL interfaces for high-speed connectivity
Supports multiple configuration modes: AS x4, Avalon Streaming x16, and JTAG
Offers up to two DDR4 x72 DIMM sockets and a DDR4 x40 component interface for HPS
Integrated Board Test System (BTS) GUI for testing transceivers, memory, GPIO, and more
On-board Clock Controller and Power Monitor GUIs for real-time diagnostics and control
Built-in FPGA Download Cable II and external JTAG header for flexible programming
Includes HPS IO48 daughter card for USB, Ethernet, UART, SD, and I²C access
Designed for PCIe add-in card or standalone benchtop operation with 240W power supply
Supports up to 150W FPGA power with active cooling and thermal protection circuitry

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status	Production
Demo	No
Form Factor	PCIe
Power	12V DC input via 2x4 PCIe power connector or included 240W power supply
Interfaces	PCIe Gen4 x16 PCIe x4 over CXL QSFP QSFPDD Micro USB JTAG UART Ethernet SD Card I2C SPI GPIO
Memory	DDR4 DIMM x72 (1 or 2 modules, up to 2666 MT/s); DDR4 component x40 for HPS (1600 MT/s); 2x 2Gb QSPI flash for FPGA config; 64Mb serial NOR flash for MAX 10; 128Kb EEPROM for MAC; 128Kb EEPROM for security
Connectors	PCIe edge connector; QSFP cage; QSFPDD cage; CXL connector; DDR4 DIMM sockets; Micro USB port; JTAG header; I2C header; Fan header; Power input connector
Switches & LEDs	Power slide switch; PCIe lane width DIP switches; Configuration mode DIP switches; JTAG selection DIP switches; Clock control DIP switches; MAX 10 JTAG enable switch; CPU reset button; HPS reset button; PCIe reset buttons; CXL reset button; User LEDs; Status LEDs
