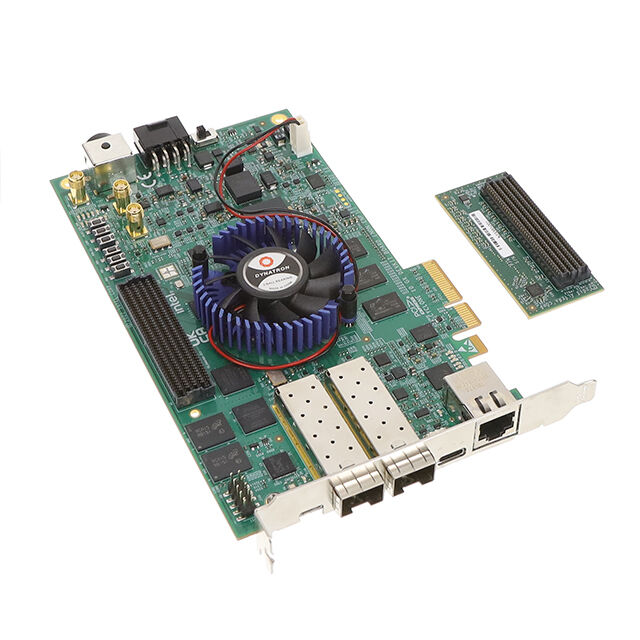

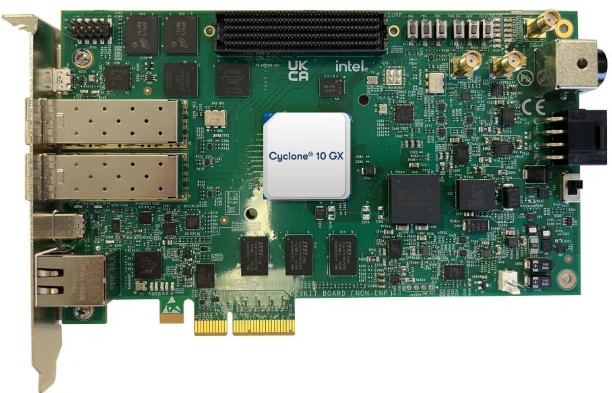

The Cyclone 10 GX FPGA Development Kit is a PCIe form factor platform designed for evaluating and prototyping high-speed transceiver and memory interfaces. It integrates a wide range of connectivity options including PCIe Gen2 x4, dual SFP+ ports for 10G Ethernet, USB 3.1 Type-C, and a full-featured FMC connector compatible with SDI, DisplayPort, and HDMI daughter cards. The kit also includes a DDR3 x40 memory interface running at 933 MHz, making it suitable for bandwidth-intensive applications.
The kit features onboard programmable oscillators, power monitoring, and a comprehensive Board Test System (BTS) GUI for real-time diagnostics and performance analysis. It supports multiple configuration modes including ASx4, FPP, JTAG, and PCIe CvP, and includes both EPCQ and QSPI flash for flexible storage. Whether used as a PCIe add-in card or a standalone evaluation board, the Cyclone 10 GX FPGA Development Kit provides a complete environment for developing a...
The Cyclone 10 GX FPGA Development Kit is a PCIe form factor platform designed for evaluating and prototyping high-speed transceiver and memory interfaces. It integrates a wide range of connectivity options including PCIe Gen2 x4, dual SFP+ ports for 10G Ethernet, USB 3.1 Type-C, and a full-featured FMC connector compatible with SDI, DisplayPort, and HDMI daughter cards. The kit also includes a DDR3 x40 memory interface running at 933 MHz, making it suitable for bandwidth-intensive applications.
The kit features onboard programmable oscillators, power monitoring, and a comprehensive Board Test System (BTS) GUI for real-time diagnostics and performance analysis. It supports multiple configuration modes including ASx4, FPP, JTAG, and PCIe CvP, and includes both EPCQ and QSPI flash for flexible storage. Whether used as a PCIe add-in card or a standalone evaluation board, the Cyclone 10 GX FPGA Development Kit provides a complete environment for developing and validating FPGA-based systems.
