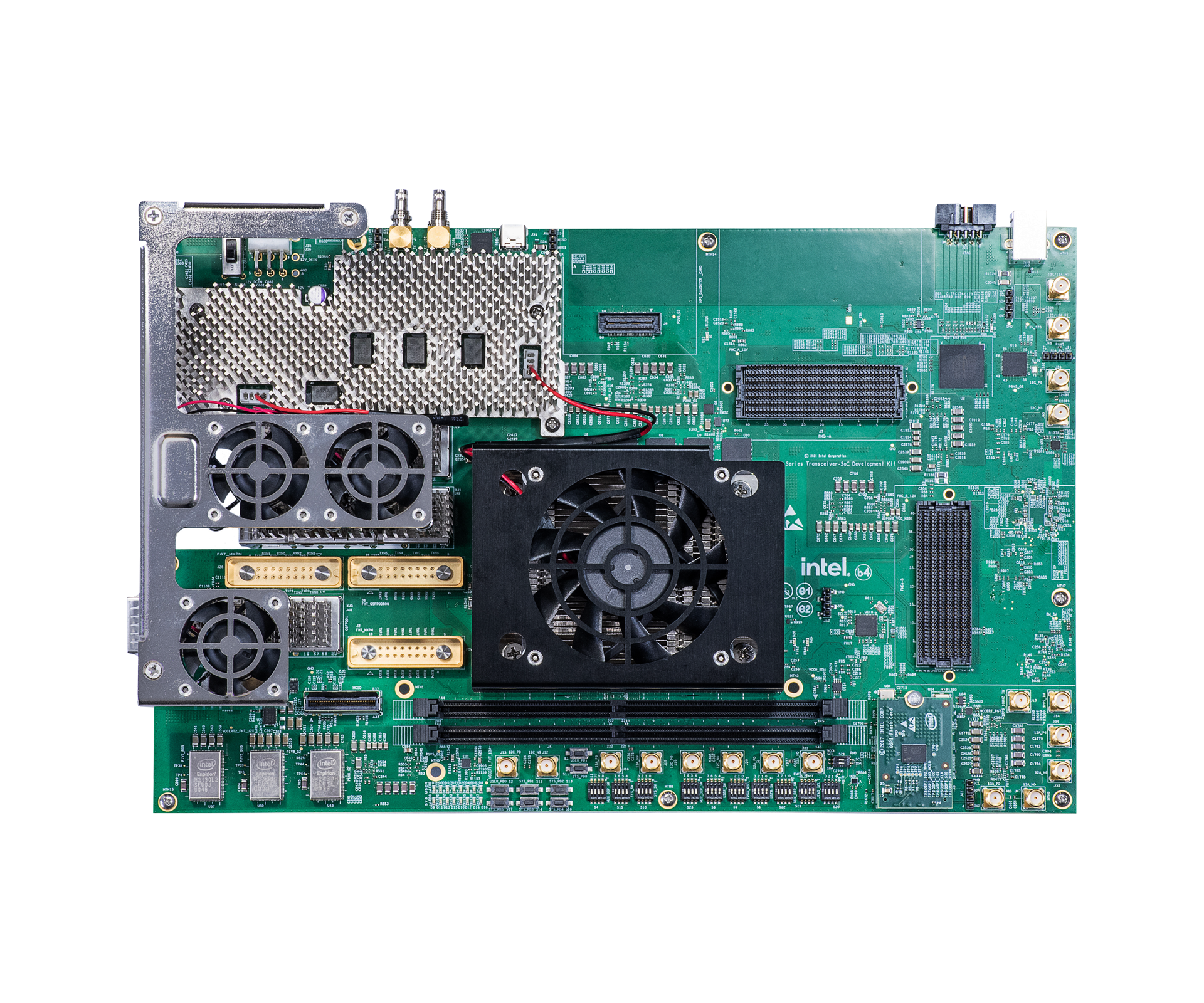

The Agilex 7 FPGA I-Series Transceiver-SoC Development Kit is a comprehensive platform designed for evaluating high-speed transceiver interfaces and SoC integration. With support for up to four F-Tiles, the kit enables testing of a wide range of connectivity standards including QSFPDD800, QSFPDD, MXPM, FMC+, SDI, and USB3.2. It includes both DIMM-based and component-down DDR4 memory, making it suitable for memory-intensive applications and HPS development.
The kit supports PCIe 4.0 via MCIO, dual QSFPDD ports, and a QSFPDD800 port with MXPM breakout, enabling up to 116G PAM4 signaling. The kit also includes a rich set of programmable clocks, onboard and external JTAG options, and a full suite of GUI tools for board testing, clock control, and power monitoring. This kit provides a robust environment for prototyping and validating next-generation FPGA designs.
