Agilex™ 7 FPGA I-Series Transceiver Development Kit (6x F-Tile) (ES)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

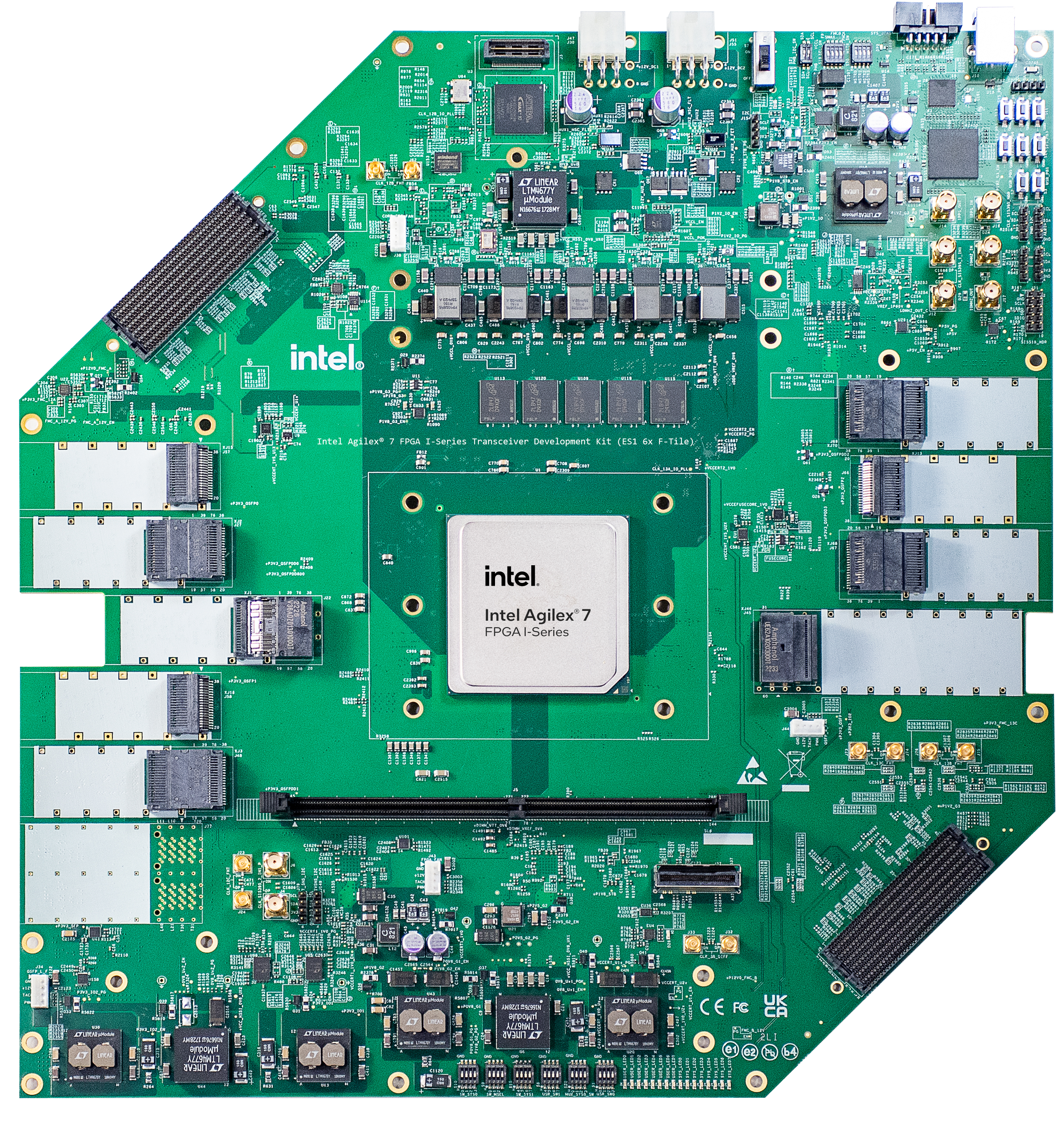

The Agilex 7 FPGA I-Series Transceiver (6 × F-Tile) Development Kit (ES) is a high-performance platform tailored for evaluating and prototyping advanced transceiver applications. With six F-Tiles, it supports a wide range of high-speed connectivity standards including QSFPDD800, OSFP, and PCIe 4.0. The kit includes both soldered-down and DIMM-based DDR4 memory, enabling robust memory bandwidth for data-intensive workloads.

Connectivity is a central strength of this kit. It features 4 QSFPDD ports, 3 QSFP ports, 1 SFP ports, 1 OSFP port, and 2 FMC+ connectors, all routed through dedicated F-Tiles. The board also supports MCIO for PCIe 4.0 x4 and includes programmable clocking and power monitoring systems. With its integrated GUI tools, flexible configuration modes, and extensive I/O, this kit provides a comprehensive environment for developing and validating next-generation FPGA-based systems.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features Agilex 7 FPGA I-Series FPGA with 4047 KLE, 3948A package
Supports up to 6 F-Tiles with transceivers for QSFPDD800, QSFPDD, QSFP, OSFP, SFP, MCIO, and FMC+ connectivity
Includes 16 GB DDR4 component memory and 16 GB DDR4 via 1DPC DIMM slot
Provides multiple configuration modes including AS (default), Avalon-ST x8 and onboard FPGA Download Cable II with external JTAG header
Integrated MAX 10 system controller for power sequencing, monitoring, and fan control
Comes with BTS GUI, Clock Controller, and Power Monitor for board validation and diagnostics
Offers extensive clocking options with programmable Si5391, Si5395, Si5518, and Si52204
Supports PCIe 4.0 x4 via MCIO and multiple high-speed serial interfaces
Includes pre-programmed QSPI flash card and USB, power, and loopback accessories
Designed for up to 300 W FPGA power with dual 240 W power input support

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs I-Series
Offering Status	Production
Demo	No
Form Factor	Tabletop
Power	Powered via 240W adapter through AUX connectors; supports up to 300W FPGA power
Interfaces	USB 2.0 Type-B PCIe Gen4 x4 via MCIO 4x QSFPDD 1x QSFPDD800 3x QSFP 1x OSFP 1x SFP 2x FMC+ GPIO UART I2C SPI
Memory	16GB DDR4 DIMM (1DPC, x72, ECC, 2666 MT/s); 16GB DDR4 component (x72, ECC, 2666 MT/s)
Connectors	QSFPDD connectors; QSFPDD800 connector; QSFP connectors; OSFP connector; SFP connectors; FMC+ connectors; MCIO connector; DIMM connector; JTAG header; USB connector; Clock I2C headers; SPI header
Switches & LEDs	User DIP switches; Mode selection switch; JTAG selection switch; System switches; Power on/off switch; User push buttons; User LEDs; Status LEDs; Fan PWM and tach signals
