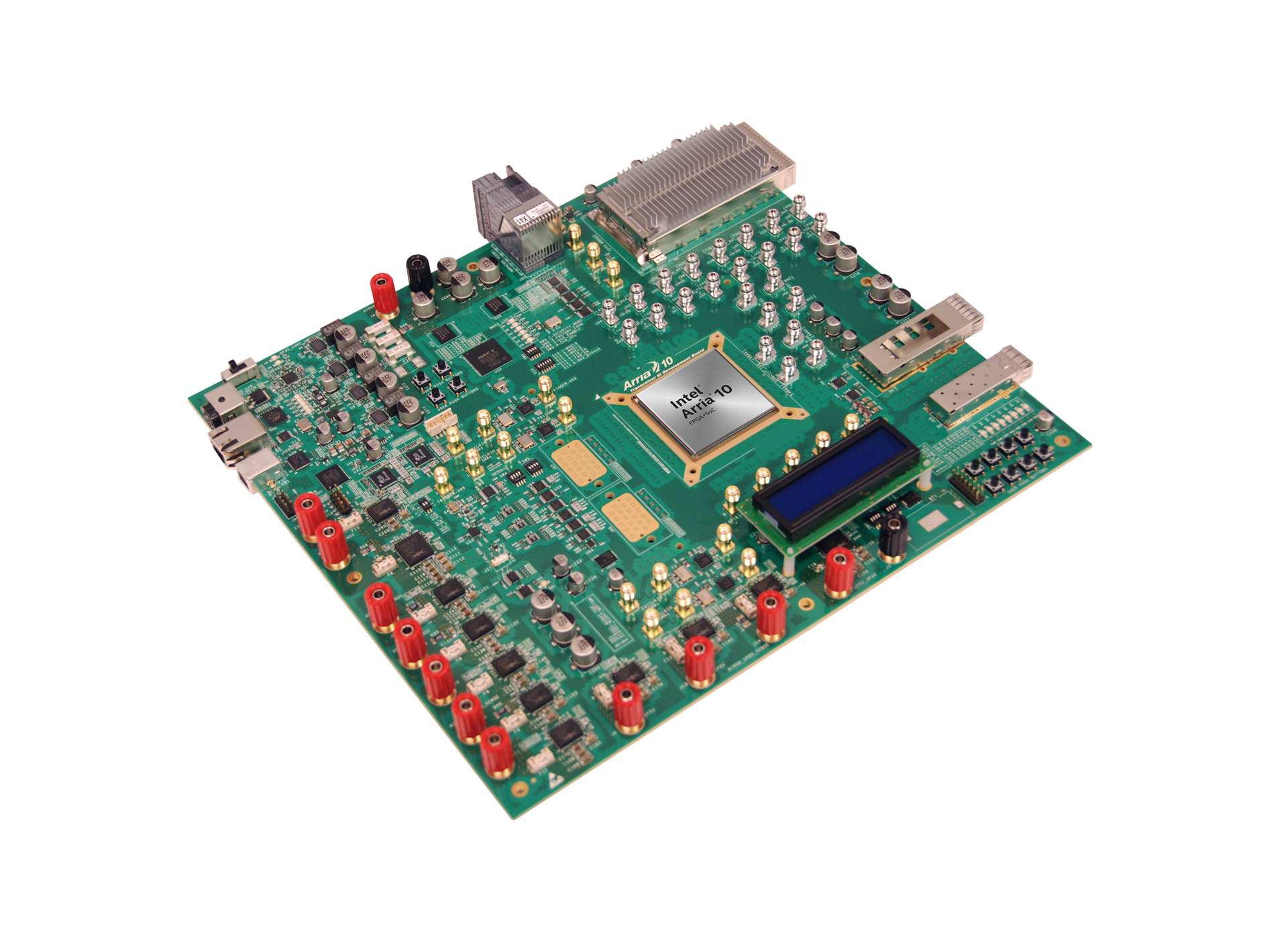

The Arria 10 GX Transceiver Signal Integrity Development Kit is a comprehensive platform for evaluating and optimizing high-speed serial transceiver performance. Designed for engineers working on advanced communication systems, this kit provides access to 29 transceiver channels and supports a wide range of industry-standard interfaces including CFP2, QSFP+, SFP+, and SMA. With programmable reference clocks and a robust Board Test System GUI, users can fine-tune PMA settings, analyze jitter, and validate compliance with protocols like PCIe, Ethernet, XAUI, and Serial RapidIO.
Connectivity is a central strength of this kit. It includes high-density BullsEye connectors, 2.4 mm SMA ports, and optical transceiver cages, enabling flexible testing across multiple physical media. The integrated USB-Blaster II and dual flash memory devices simplify configuration and recovery, while the onboard power monitoring and temperature sensing ensure reliable operation. W...
The Arria 10 GX Transceiver Signal Integrity Development Kit is a comprehensive platform for evaluating and optimizing high-speed serial transceiver performance. Designed for engineers working on advanced communication systems, this kit provides access to 29 transceiver channels and supports a wide range of industry-standard interfaces including CFP2, QSFP+, SFP+, and SMA. With programmable reference clocks and a robust Board Test System GUI, users can fine-tune PMA settings, analyze jitter, and validate compliance with protocols like PCIe, Ethernet, XAUI, and Serial RapidIO.
Connectivity is a central strength of this kit. It includes high-density BullsEye connectors, 2.4 mm SMA ports, and optical transceiver cages, enabling flexible testing across multiple physical media. The integrated USB-Blaster II and dual flash memory devices simplify configuration and recovery, while the onboard power monitoring and temperature sensing ensure reliable operation. Whether you're validating signal integrity or developing custom transceiver IP, this kit delivers the tools and performance needed for success.
