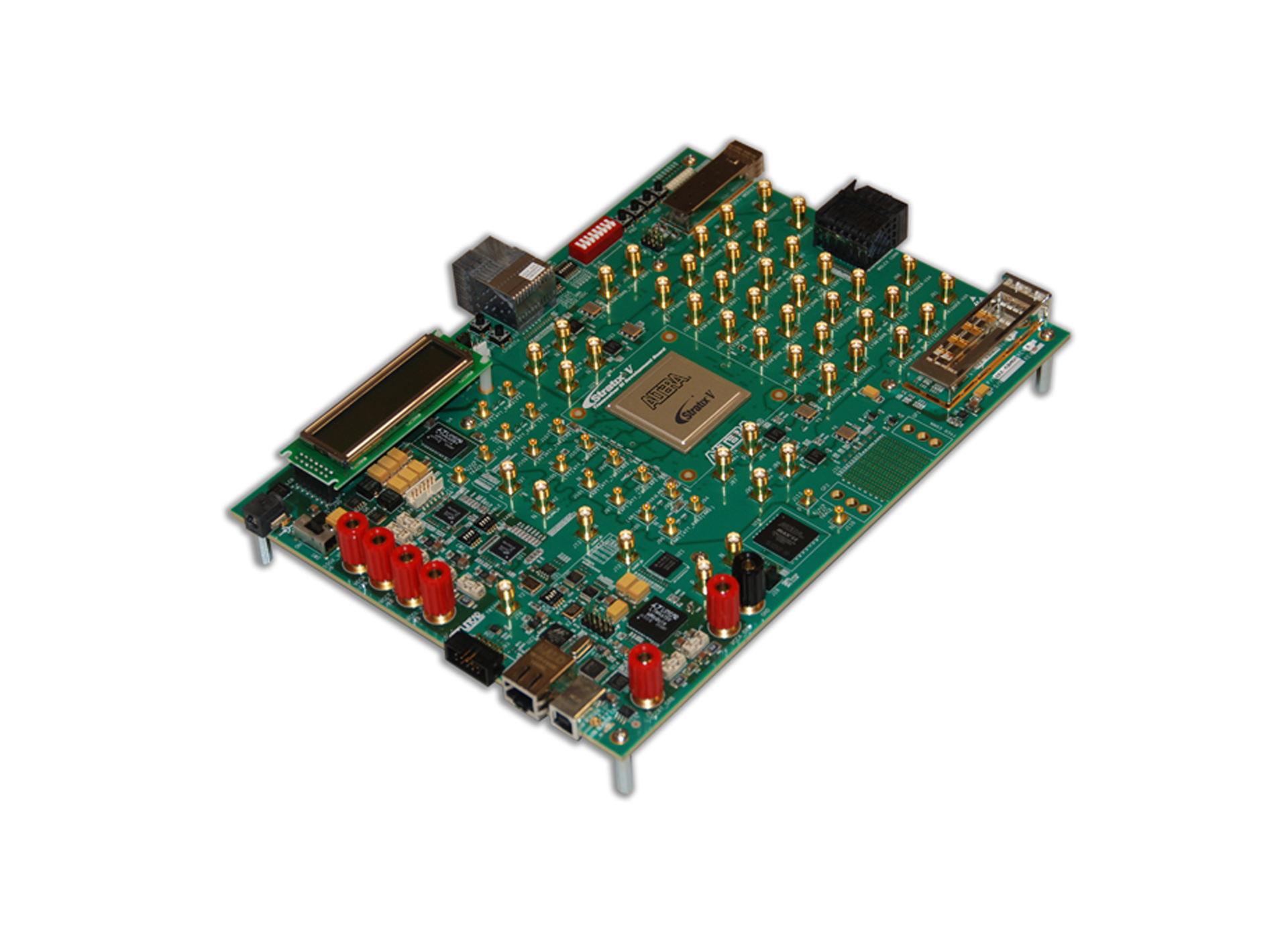

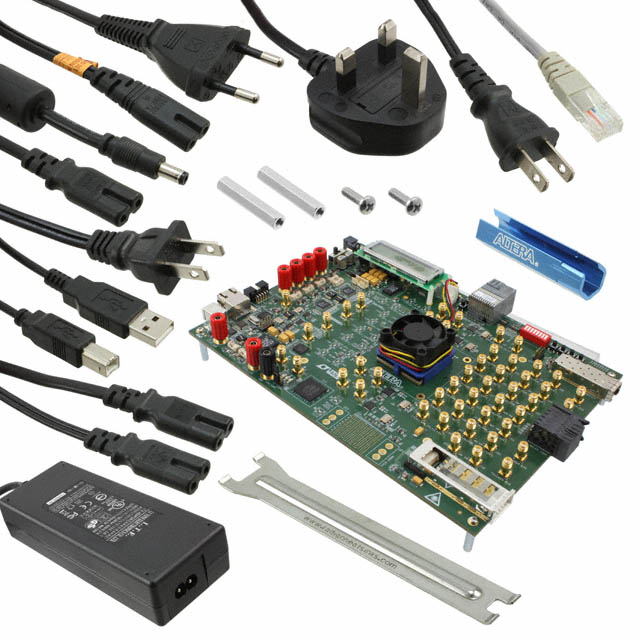

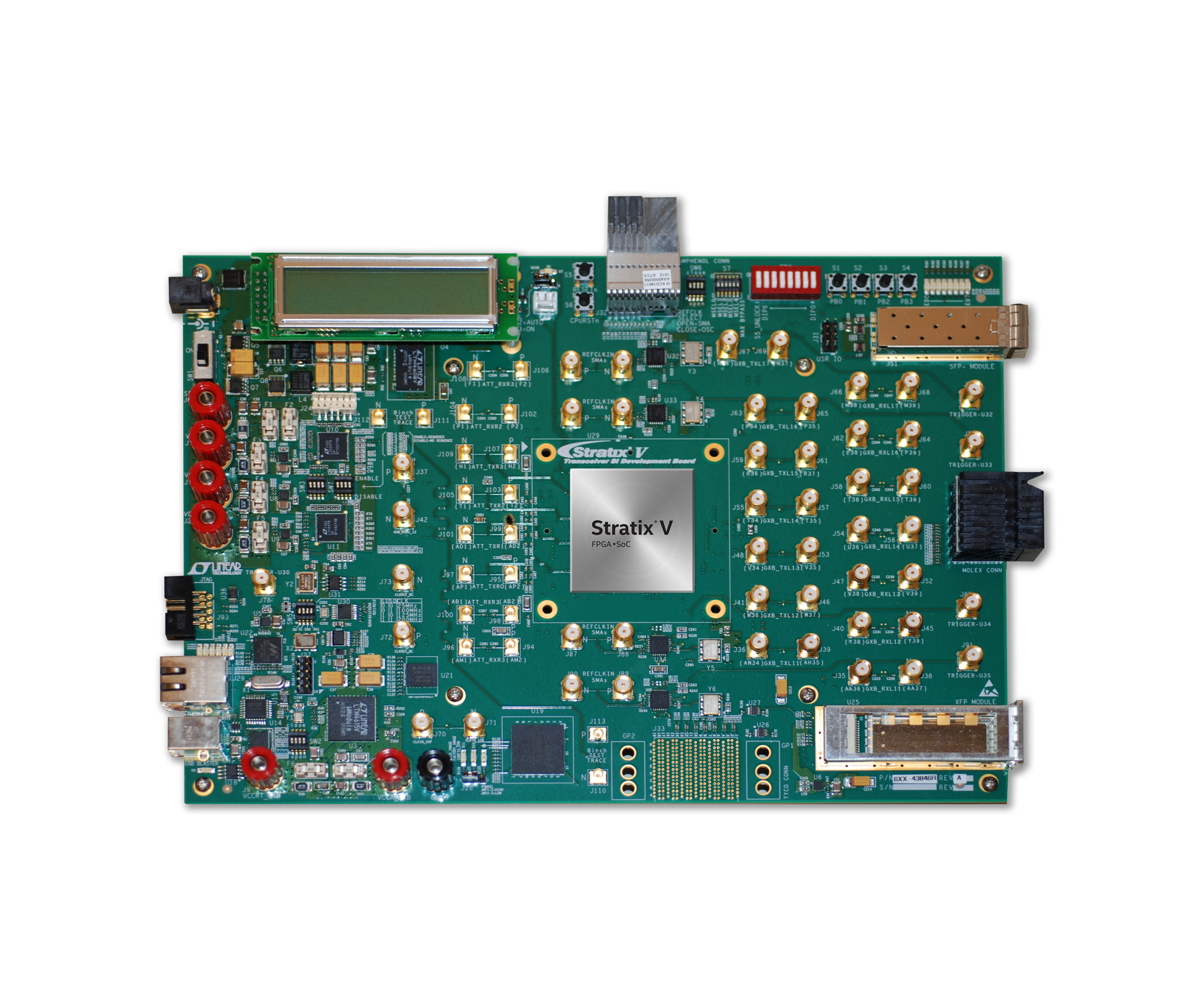

The Stratix V GX Transceiver Signal Integrity Development Kit is a comprehensive platform designed for high-speed serial link evaluation and optimization. It provides a robust environment for testing transceiver signal integrity, enabling engineers to fine-tune performance parameters such as voltage output differential, pre-emphasis, and equalization. The kit supports a wide range of industry standards including PCIe, GbE, XAUI, CEI-6G, Serial RapidIO, and HD-SDI, making it ideal for validating compliance and conducting jitter analysis.
Connectivity is a central strength of this kit. It includes multiple high-speed interfaces such as SMA, SFP+, XFP, allowing users to perform loopback and backplane tests across various physical media. The Board Test System software provides an intuitive GUI for configuring tests and monitoring results, while the Board Update Portal enables remote design updates over Ethernet. With integrated power monitoring and programma...
The Stratix V GX Transceiver Signal Integrity Development Kit is a comprehensive platform designed for high-speed serial link evaluation and optimization. It provides a robust environment for testing transceiver signal integrity, enabling engineers to fine-tune performance parameters such as voltage output differential, pre-emphasis, and equalization. The kit supports a wide range of industry standards including PCIe, GbE, XAUI, CEI-6G, Serial RapidIO, and HD-SDI, making it ideal for validating compliance and conducting jitter analysis.
Connectivity is a central strength of this kit. It includes multiple high-speed interfaces such as SMA, SFP+, XFP, allowing users to perform loopback and backplane tests across various physical media. The Board Test System software provides an intuitive GUI for configuring tests and monitoring results, while the Board Update Portal enables remote design updates over Ethernet. With integrated power monitoring and programmable clock control, this kit delivers a complete solution for transceiver evaluation and system prototyping.
