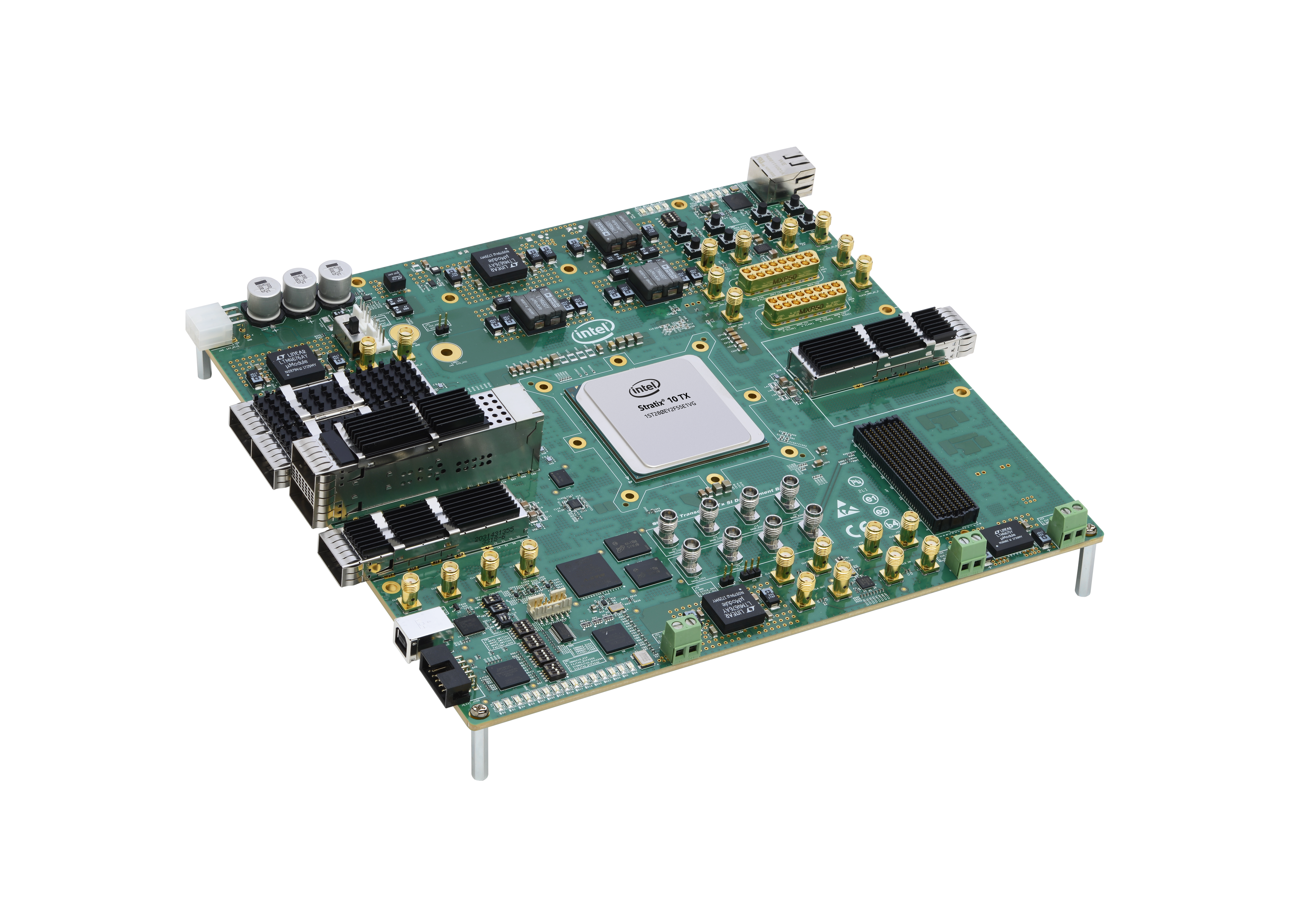

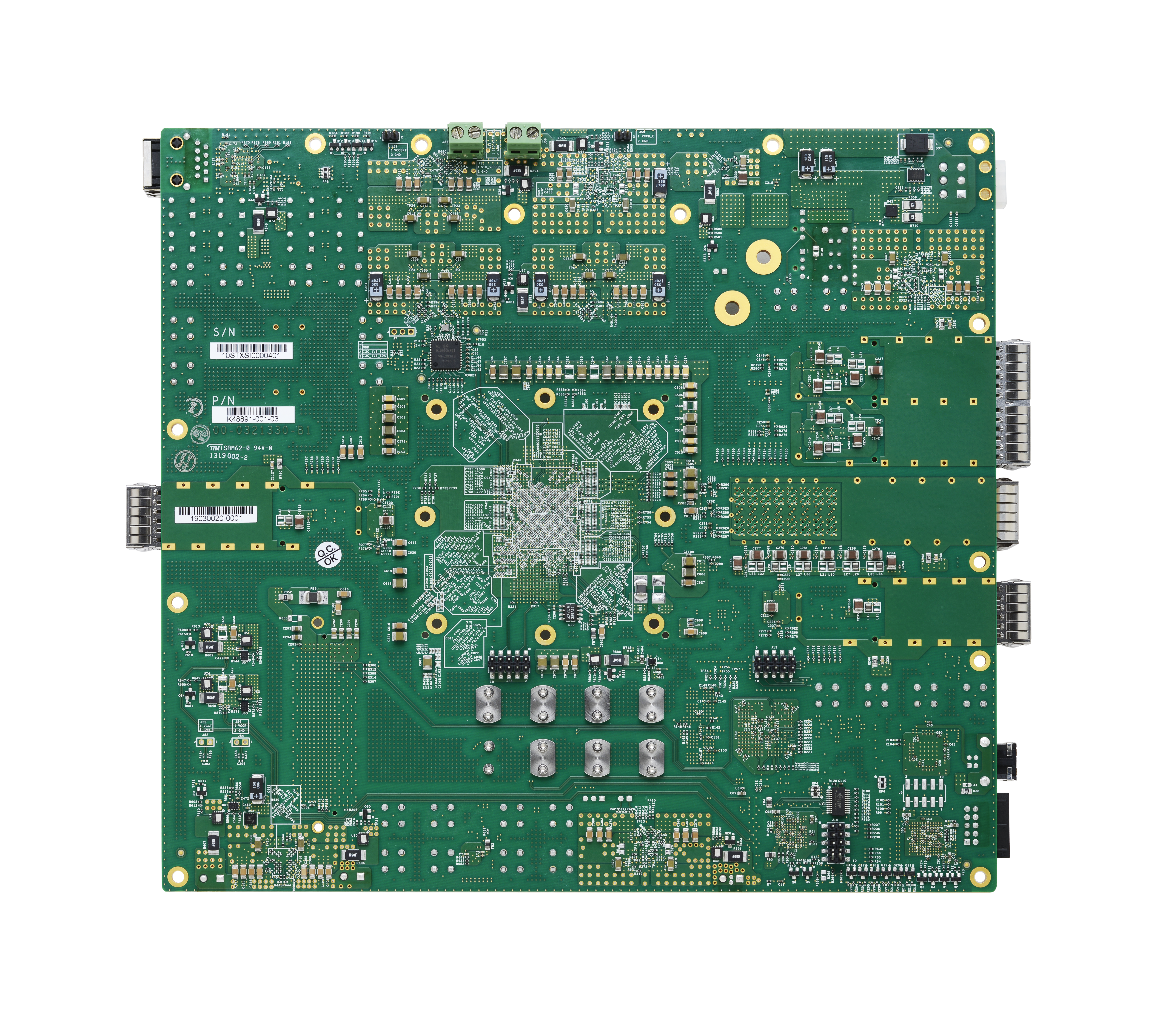

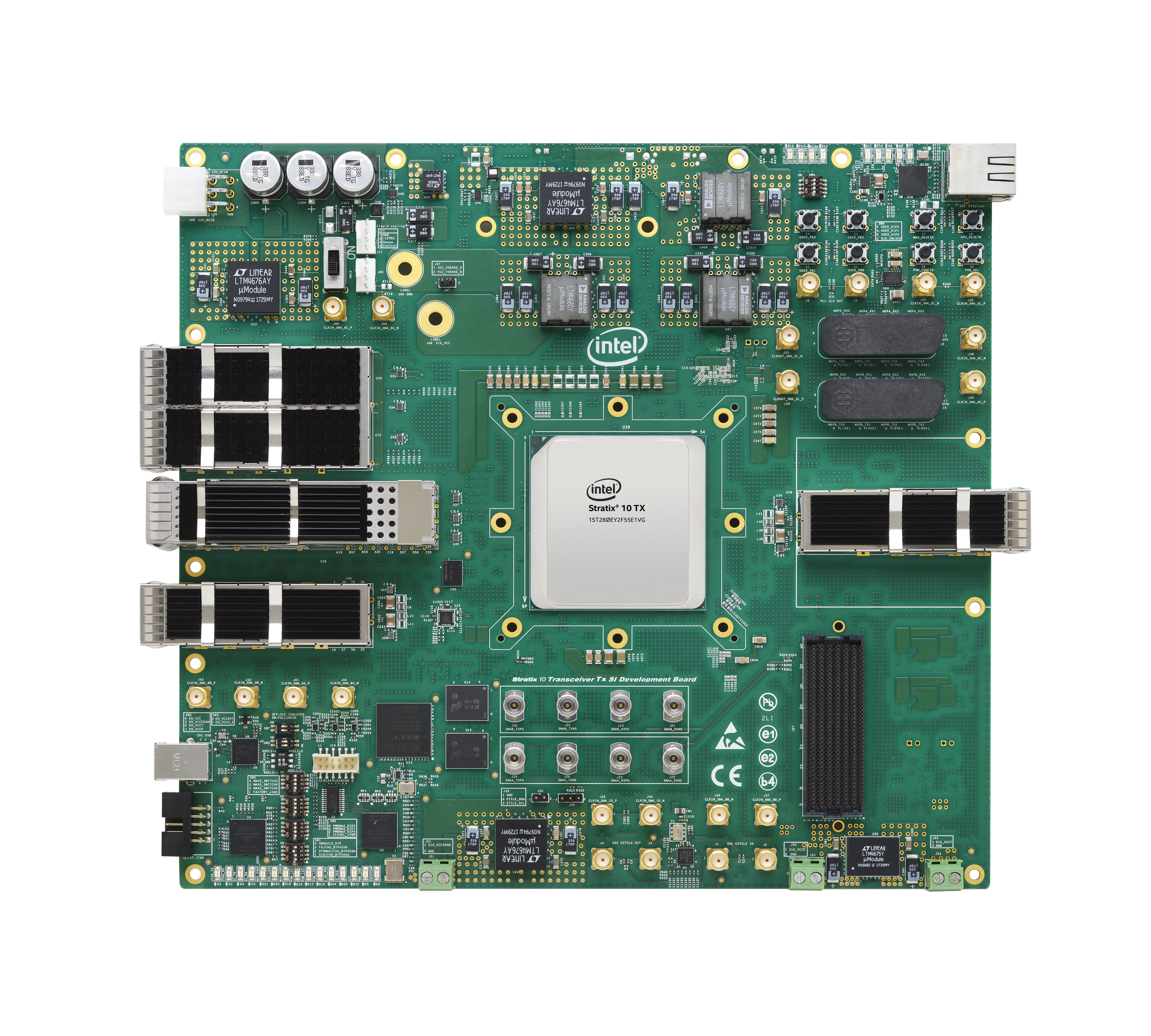

The Stratix® 10 TX Transceiver Signal Integrity Development Kit is a comprehensive platform designed to accelerate the development and validation of high-speed transceiver interfaces. It provides a robust environment for evaluating signal integrity, tuning PMA parameters, and verifying compliance with industry standards. The kit includes all necessary hardware and software tools to support rapid prototyping and testing of Stratix 10 TX FPGA designs.

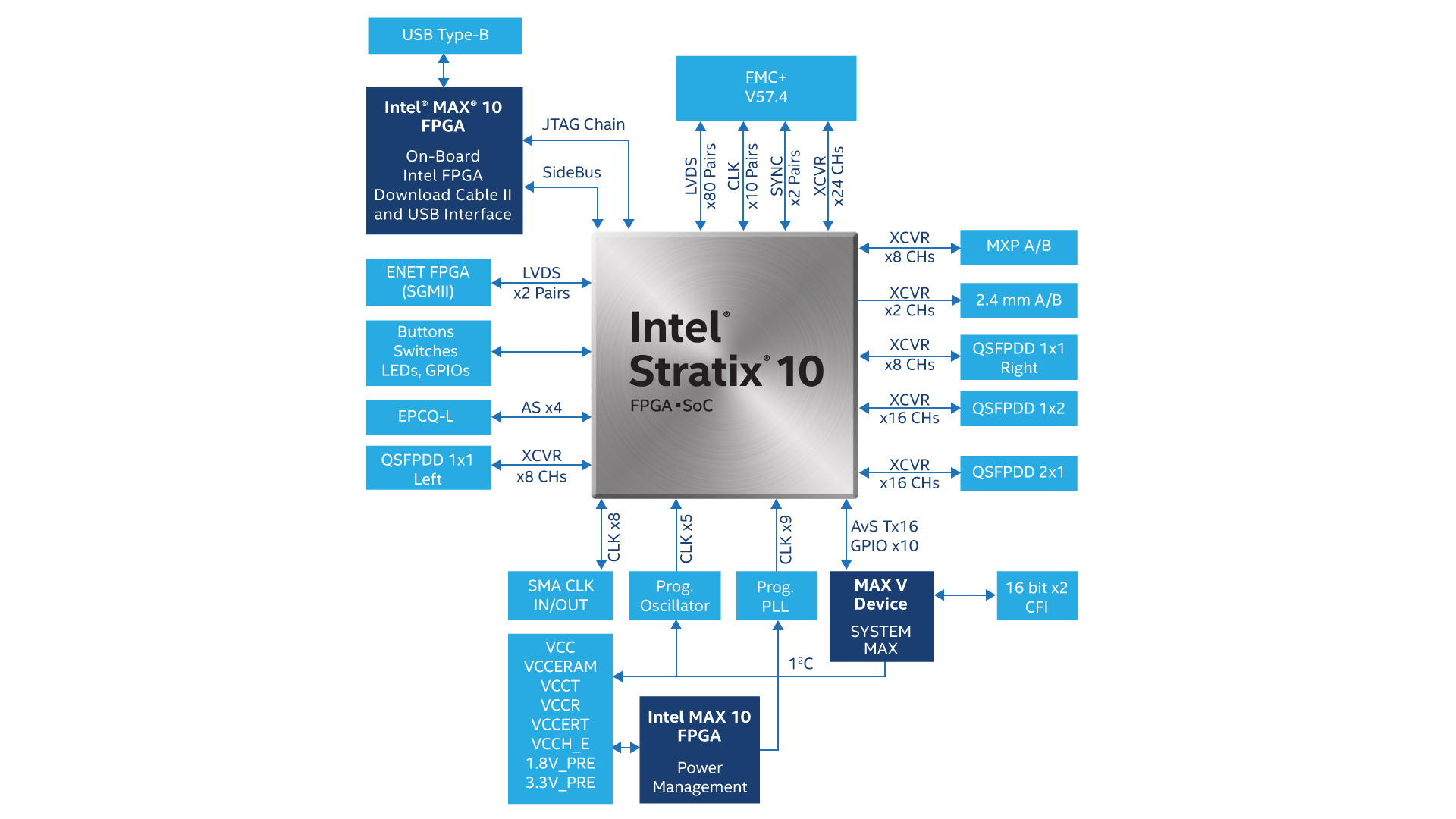

This kit features a wide array of high-speed interfaces including QSFPDD (1x1, 1x2, 2x1), MXP, FMC+, and 2.4 mm RF connectors, enabling flexible testing scenarios across multiple protocols. The inclusion of a Gigabit Ethernet port, USB interface, and programmable clocking resources further enhances its versatility. With built-in tools like the Board Test System GUI and support for PRBS testing, loopback modes, and real-time error monitoring, this kit is ideal for engineers focused on transceiver performance a...
The Stratix® 10 TX Transceiver Signal Integrity Development Kit is a comprehensive platform designed to accelerate the development and validation of high-speed transceiver interfaces. It provides a robust environment for evaluating signal integrity, tuning PMA parameters, and verifying compliance with industry standards. The kit includes all necessary hardware and software tools to support rapid prototyping and testing of Stratix 10 TX FPGA designs.
This kit features a wide array of high-speed interfaces including QSFPDD (1x1, 1x2, 2x1), MXP, FMC+, and 2.4 mm RF connectors, enabling flexible testing scenarios across multiple protocols. The inclusion of a Gigabit Ethernet port, USB interface, and programmable clocking resources further enhances its versatility. With built-in tools like the Board Test System GUI and support for PRBS testing, loopback modes, and real-time error monitoring, this kit is ideal for engineers focused on transceiver performance and signal integrity optimization.
