Agilex™ 7 FPGA F-Series Development Kit (P-Tile and E-Tile)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

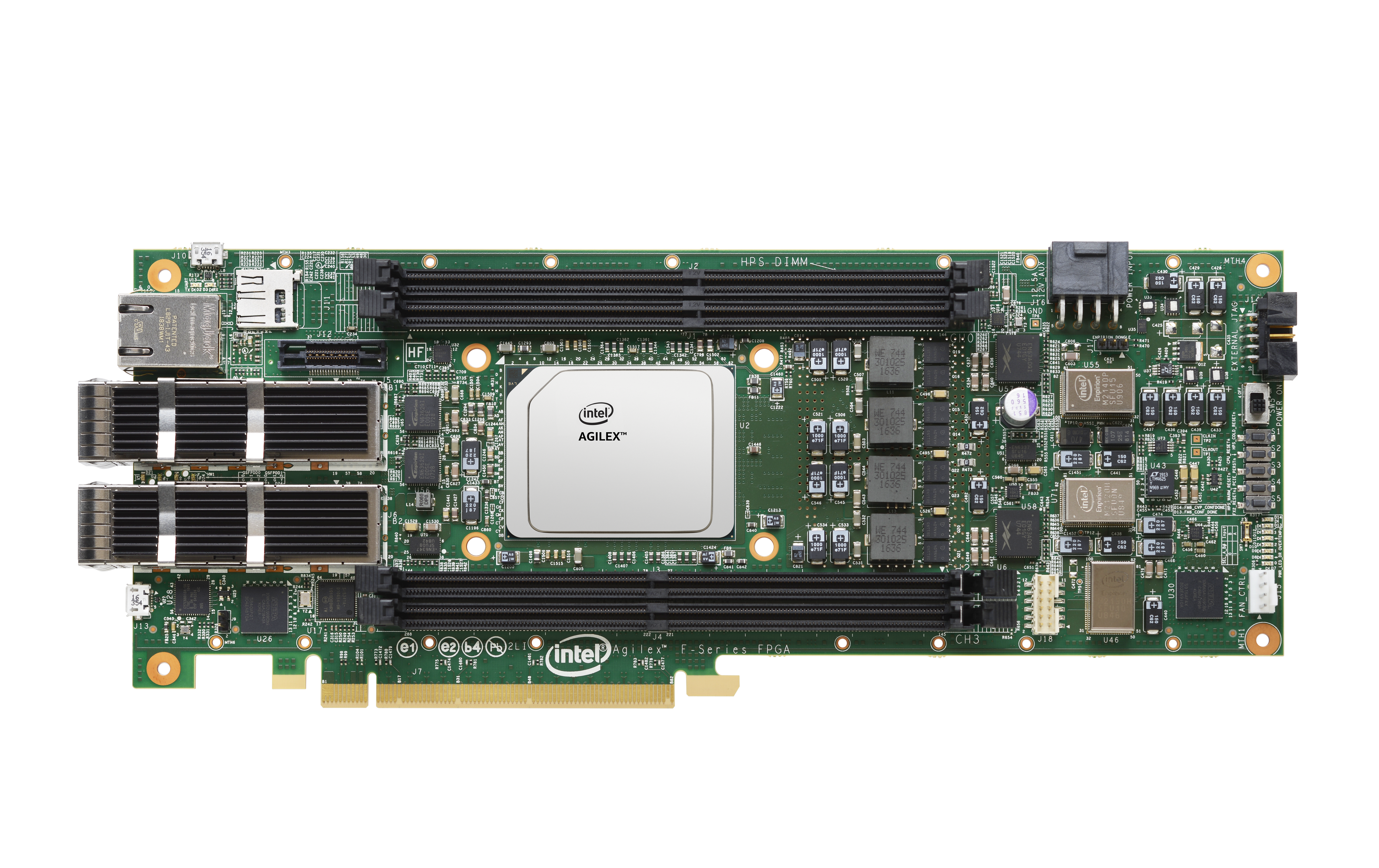

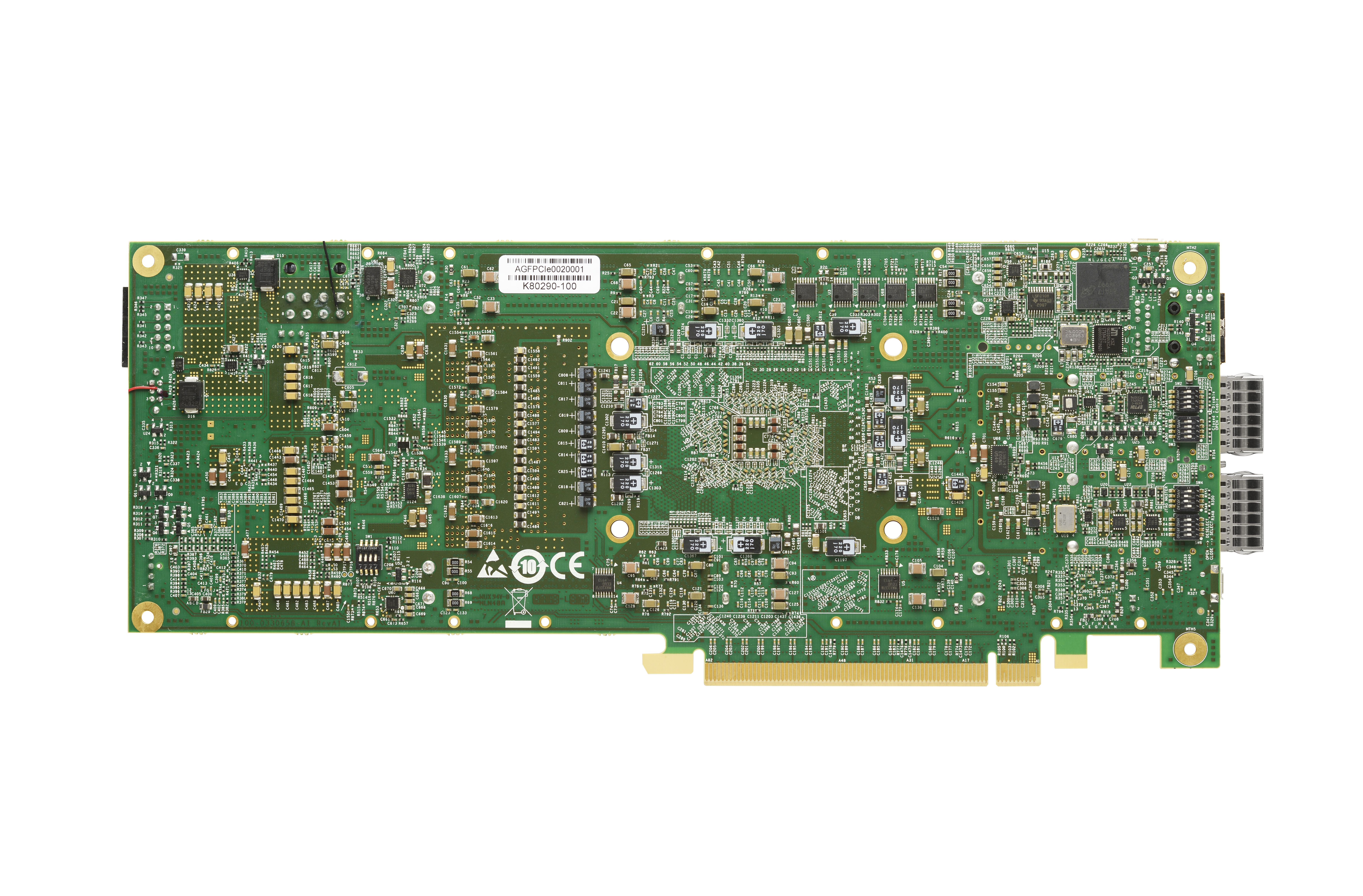

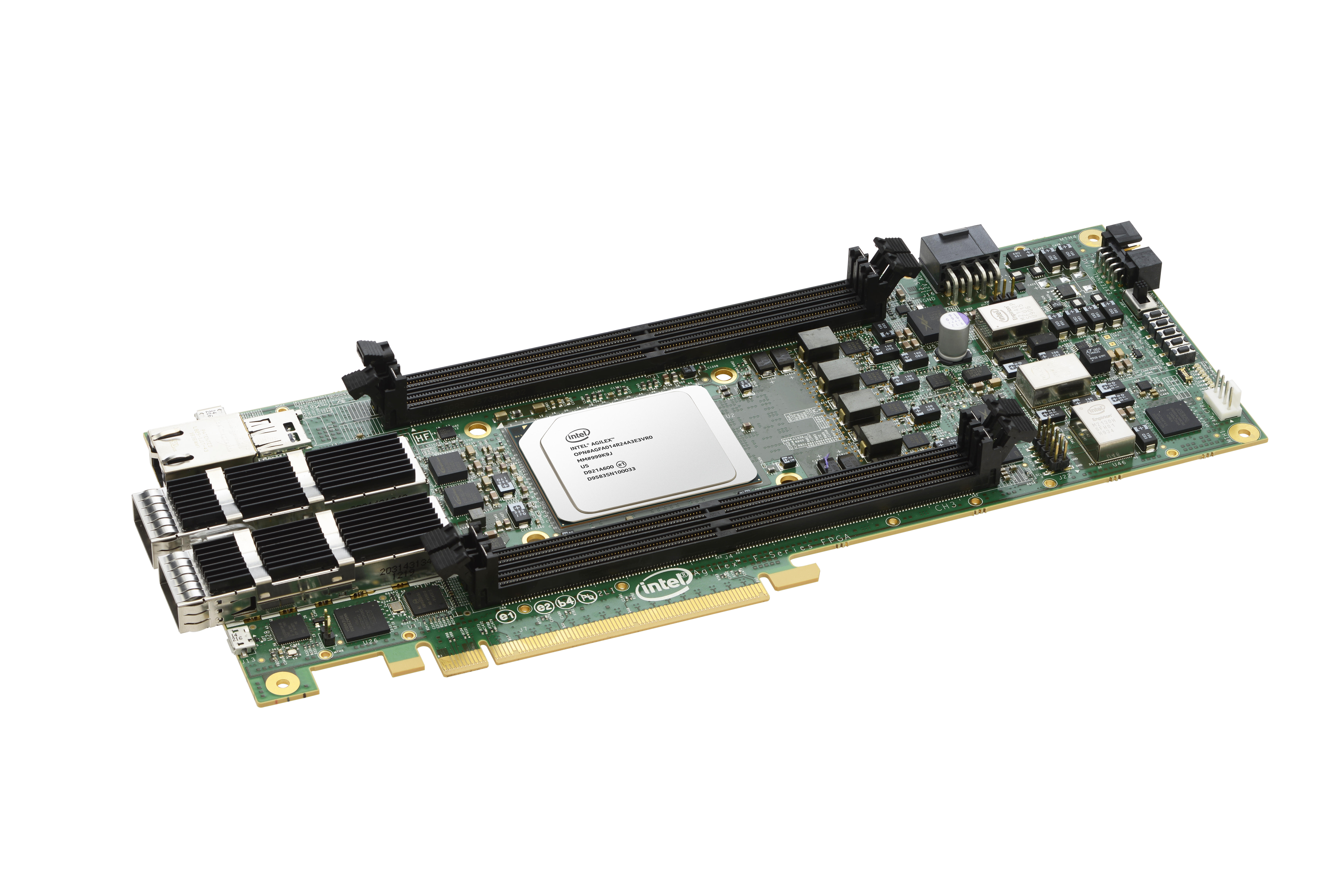

The Agilex 7 FPGA F-Series Development Kit is a comprehensive platform for developing and validating high-performance FPGA designs with robust connectivity and memory capabilities. It features dual QSFPDD ports for up to 200 Gbps transceiver testing and a PCIe 4.0 x16 interface for system-level integration. With four DDR4 DIMM slots—three for FPGA fabric and one for HPS—this kit supports both DDR4 and DDR-T modules, enabling memory-intensive applications.

The kit includes a full suite of development tools, including the Board Test System (BTS) GUI, Clock Controller, and Power Monitor, all accessible via USB or JTAG. It supports both standalone and PCIe-based operation, making it ideal for lab development or deployment in server environments. With built-in configuration options, SmartVID support, and extensive I/O, the Agilex 7 FPGA F-Series Development Kit accelerates prototyping and validation for data center, networking, and embedded applications.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features Agilex 7 FPGA F-Series device with 2 P-Tile and E-Tile transceivers
Supports PCIe 4.0 x16 via golden fingers and dual QSFPDD interfaces for high-speed connectivity
Includes four DDR4 DIMM sockets: three for FPGA fabric and one for HPS memory
Offers flexible configuration via AS x4 (default) and JTAG modes
Integrated Board Test System (BTS) GUI for testing transceivers, memory, GPIO, and more
Built-in FPGA Download Cable II and external JTAG header for programming and debugging
On-board Clock Controller and Power Monitor GUIs for real-time diagnostics and control
HPS interface includes Ethernet, UART, SD card, eMMC, and Mictor connector
Designed for PCIe add-in card or standalone benchtop operation with 240W power supply
Active cooling supports up to 150W FPGA power with temperature monitoring and alerts

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status	Production
Demo	No
Form Factor	PCIe
Power	Powered via 240W external adapter or PCIe slot + auxiliary 2x4 connector; supports up to 150W FPGA power
Interfaces	USB 2.0 Micro-B PCIe 4.0 x16 QSFPDD x2 RJ-45 Ethernet UART GPIO I2C JTAG SD card eMMC
Memory	3X DDR4 DIMM: 72-bit, 2400 MT/s;1X DDR4 DIMM for HPS: 72-bit, 2400 MT/s; DDR-T support
Connectors	QSFPDD connectors; PCIe edge connector; DDR4 DIMM sockets; SD card socket; Micro USB connector; Mictor connector; JTAG header; USB Type-B connector
Switches & LEDs	Configuration switches; Power ON/OFF slide switch; Reset buttons for HPS, CPU, PCIe, System MAX 10; User LEDs; FPGA configuration LEDs; QSFPDD status LEDs; Overtemperature warning LED
