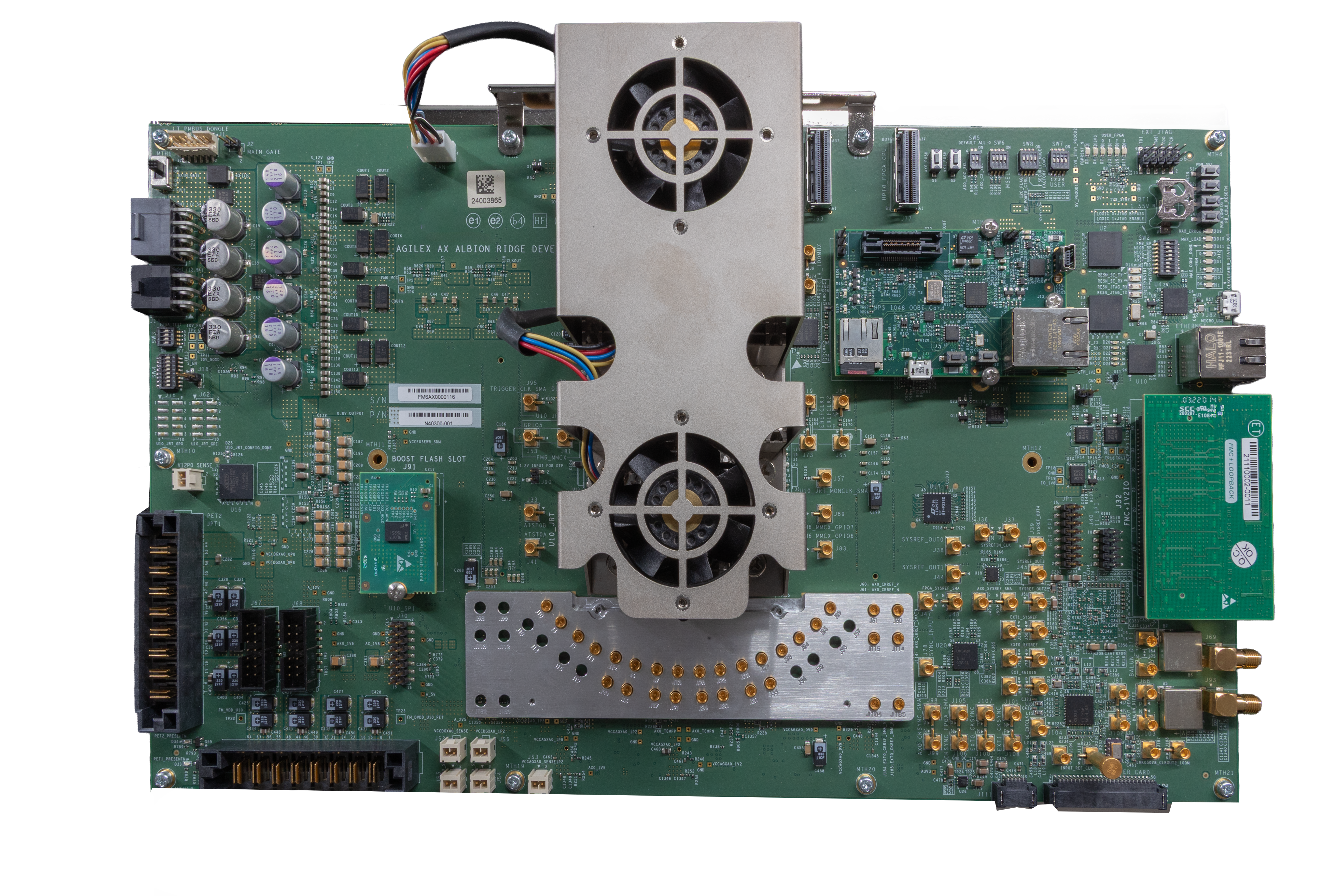

The Agilex™ 9 Direct RF-Series AGRW014 Development Kit is a comprehensive platform designed for high-performance FPGA development, specifically targeting applications with wideband RF requirements supporting a range of 0.1 to 36GHz. This kit integrates the AGRW014 SoC FPGA and showcases the high-performance wideband data converters and high-speed memory and I/O. It supports four 10-bit ADC/DAC channels with sample rates up to 64GSPS, making it ideal for advanced signal processing, radar, EW, and high-bandwidth secure communication systems.
The development kit also incorporates a robust power management system with MAX 10 CPLDs for sequencing and control, and supports various configuration modes including QSPI, Avalon streaming, and JTAG. It offers extensive high performance connectivity options including a PCIe Gen4 x8 slot, 2x QSFP28 ports for 200GE applications, and 1Gbps Ethernet. The kit is equipped with DDR4 SODIMM memory, HPS interfaces, and a comp...
The Agilex™ 9 Direct RF-Series AGRW014 Development Kit is a comprehensive platform designed for high-performance FPGA development, specifically targeting applications with wideband RF requirements supporting a range of 0.1 to 36GHz. This kit integrates the AGRW014 SoC FPGA and showcases the high-performance wideband data converters and high-speed memory and I/O. It supports four 10-bit ADC/DAC channels with sample rates up to 64GSPS, making it ideal for advanced signal processing, radar, EW, and high-bandwidth secure communication systems.
The development kit also incorporates a robust power management system with MAX 10 CPLDs for sequencing and control, and supports various configuration modes including QSPI, Avalon streaming, and JTAG. It offers extensive high performance connectivity options including a PCIe Gen4 x8 slot, 2x QSFP28 ports for 200GE applications, and 1Gbps Ethernet. The kit is equipped with DDR4 SODIMM memory, HPS interfaces, and a comprehensive board test system (BTS) GUI for functional validation and performance monitoring, empowering engineers to rapidly prototype and validate RF-centric designs.
