Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-Tile and E-Tile)

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

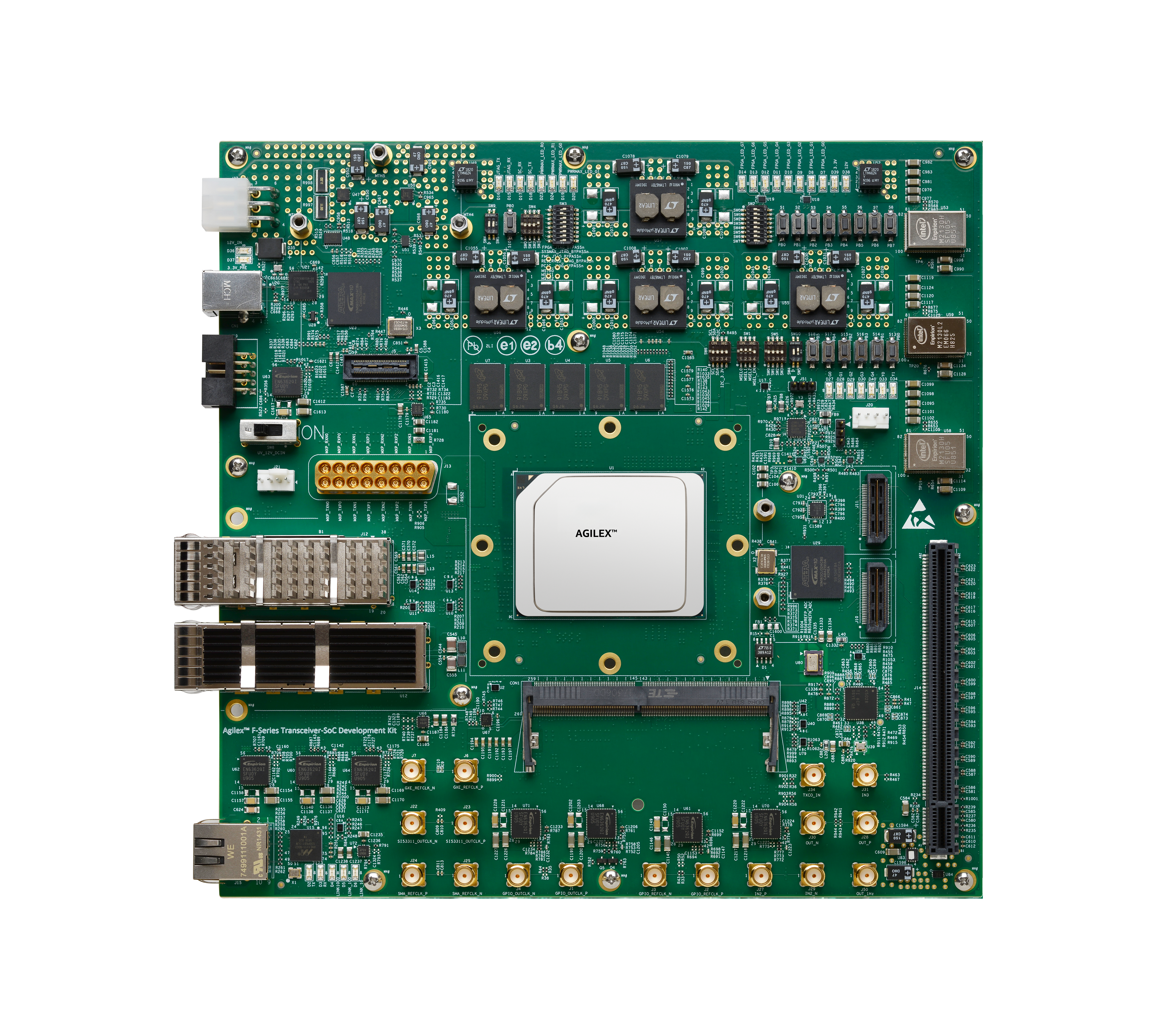

The Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit is a powerful platform for developing and validating high-speed, high-bandwidth FPGA and SoC designs. It integrates a wide range of connectivity options including QSFPDD, QSFP28, MXP, and PCIe Gen4 x16, making it ideal for networking, data center, and telecom applications. The kit supports multiple memory configurations with onboard DDR4 and SODIMM interfaces, and includes a robust power and clock management system.

Designed for flexibility and ease of use, the kit features a comprehensive Board Test System (BTS) GUI for diagnostics and performance testing, along with Clock Controller and Power Monitor tools. It supports multiple configuration modes and includes pre-programmed flash and system controllers for quick setup. With its included HPS daughter cards and extensive I/O, the Agilex 7 kit is well-suited for embedded, edge, and high-performance computing applications.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Features Agilex 7 FPGA F-Series with 1400 KLE in a 2486A package
Includes 16 E-tile and 16 P-tile transceiver channels supporting up to 58G PAM4 and PCIe Gen4
Provides 8 GB DDR4 component memory and SODIMM slot for DDR4 or QDRIV/RLDRAM3 modules
Offers QSFPDD, QSFP28, MXP, and PCIe Gen4 x16 connectivity for high-speed data applications
Supports multiple configuration modes including AS, AvSTx8/x16/x32, and JTAG
Integrated Board Test System (BTS) GUI for testing GPIO, transceivers, DDR4, and more
On-board Clock Controller and Power Monitor GUIs for real-time control and diagnostics
Ships with pre-programmed QSPI flash and system MAX 10 for factory restore
Includes HPS OOBE and NAND daughter cards for embedded system development
Designed for high-performance applications with up to 120W FPGA power and robust thermal management
Includes one-year license for Quartus Prime Pro and Altera FPGA Embedded Development Suite (EDS)

Offering Brief

Device Family	Agilex® 7 FPGAs and SoC FPGAs F-Series
Offering Status	Production
Device OPN(s) on Board	AGF014R24B2E2V
Demo	No
Form Factor	Tabletop
Power	240W power adapter via J37 or ATX 24-pin to 6-pin cable; onboard hot-plug circuit shuts down at 360W
Interfaces	PCIe Gen4 x16 QSFP28 QSFPDD Multi-Speed port (MXP) SGMII Ethernet; UART GPIO I2C SPI JTAG USB 2.0 (daughter card)
Memory	8 GB DDR4 x72 2400 MT/s shared between FPGA and HPS; DDR4 SODIMM slot for FPGA; 256 MB QSPI flash card; 8 Gb NAND flash; 8 GB eMMC flash
Connectors	PCIe slot; QSFP28 cage; QSFPDD cage; MXP connector; RJ45 Ethernet; USB Mini-B; USB Micro-AB; MicroSD socket; SODIMM socket; JTAG header; I2C debug headers
Switches & LEDs	User DIP switches; User push buttons; User LEDs; Power slide switch; Configuration mode switches; JTAG chain switches; MAX 10 pin strap switches; Over-temp LED; Power good LEDs; Reset buttons
