The GTS Ethernet Hard IP supports 10GE on Agilex 3 and Agilex 5 devices in addition to 25GE on Agilex 5. These devices serve a broad range of applications that require high performance, lower power, and smaller form factors. They are ideal for midrange FPGA applications across the edge and core including wireless and wireline communications, video and broadcast equipment, industrial applications, test and measurement products, medical electronics, data center, and defense.

Altera
Key Features
- PMA Type: ETH MAC and OTN support on certain channels. All channels support PCS Direct and FlexE mode

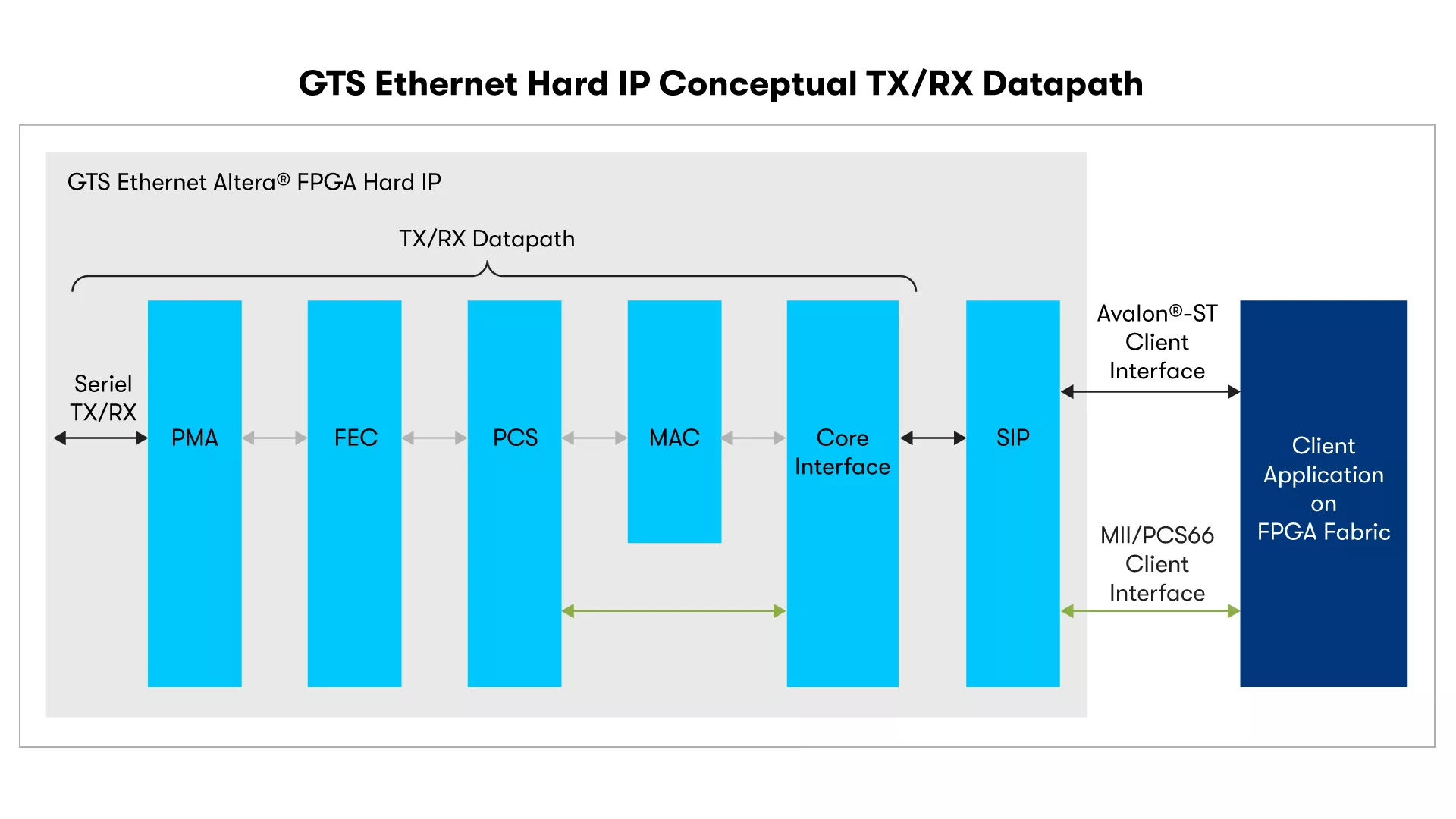

- Flexible Configuration: 1) Media Access Control (MAC), Physical Coding Sublayer (PCS), and Physical Medium Attachment (PMA). 2) PCS and PMA with optional FEC supports
- Client Interface: 1) MAC Avalon streaming interface. 2) PCS direct mode. 3) Supports Optical Transport Network (OTN) and Flexible Ethernet (FlexE) mode
- Forward Error Correction (FEC)
- Support for Auto-Negotiation (AN) and Link Training (LT)
- Support for the 1588v2 Precision Time Protocol (PTP)

Offering Brief
Offering Brief
Device Family | Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series |
---|---|
Offering Status | Production |
Integrated Testbench | Yes |
Evaluation License | Yes |
Design Examples Available | Yes |
Demo | Yes |
Compliance | No |
Development Language | Encrypted Verilog, Other |
Encrypted Verilog Source Code
Design Example
Simulation Models
IP Evaluation Mode
Documentation: IP User Guide, Design Example User Guide, IP Release Notes
Ordering Information
None
from Direct
