DDR5 and DDR4, LPDDR5 and LPDDR4 External Memory Interfaces FPGA IP

Altera

DDR4 and DDR5 offer higher bandwidth and improved performance over previous generations, with DDR5 providing further enhancements in speed and power efficiency. LPDDR4 and LPDDR5 are optimized for low power consumption, making them ideal for embedded applications, with LPDDR5 offering even faster data rates and improved energy management. When integrated with Altera FPGAs these memory technologies enable faster data processing and more efficient power usage for a wide range of applications including networking, cloud and edge.

Key Features

  • Shorter development cycles and faster time to market due to pre-closed timing with a hardened controller and PHY.
  • More FPGA fabric logic resources available for user application.
  • Improved fmax, efficiency and latency.
  • Low power solution.
  • View calibration margin, status, pin delay and VREF settings Re-run calibration, traffic generator, and driver margining, update delay settings and termination settings and configure traffic generator to send test traffic patterns using the EMIF Debug toolkit.
Expand Close

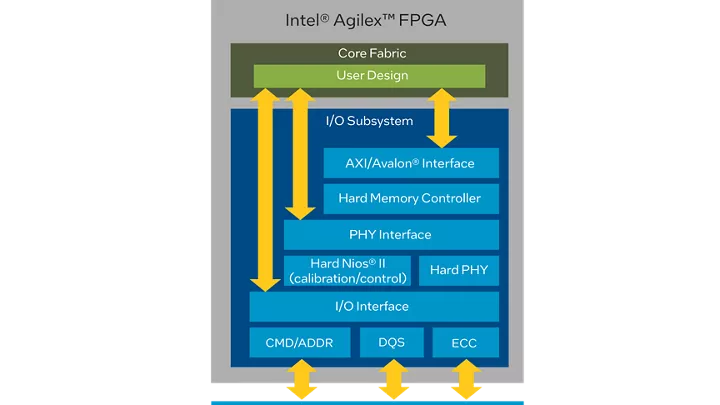

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA
Offering Status Production
Integrated Testbench No
Evaluation License No
Design Examples Available Yes
Demo Yes
Compliance No
Development Language Encrypted Verilog

Encrypted Verilog source code

Design Example

Simulation Models

Documentation: IP User Guide, Design Example User Guide, IP Release Notes
