IA-440i PCIe Agilex 7 I-Series FPGA Card

BittWare

Select

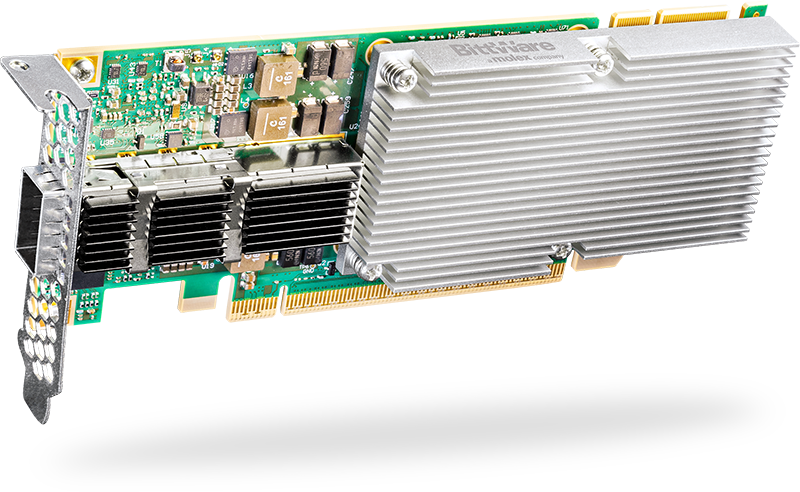

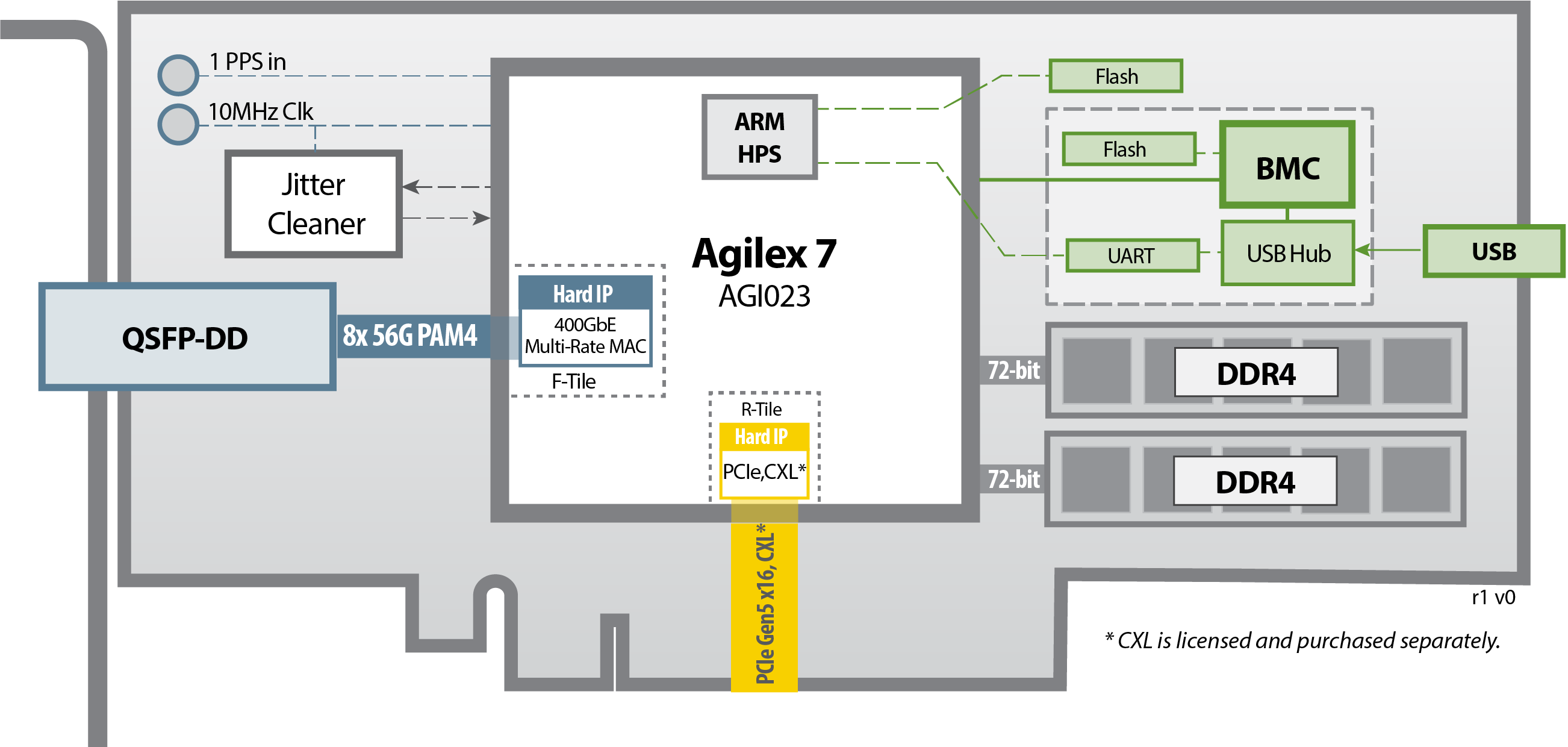

BittWare’s IA-440i is an Agilex™ 7 I-series FPGA card designed for building SmartNICs or other accelerators requiring a powerful FPGA in a single-slot form factor. The NIC-sized card provides a balance of I/O and memory using the Agilex™ chip’s unique tiling architecture. It has a QSFP-DD (1 x 400G), DDR4 SDRAM, and PCIe Gen5 x16 with CXL support for a variety of applications.

Key Features

  • Agilex™ 7 I-Series FPGA (AGI023)
  • Quad-core Arm Cortex-A53
  • PCIe Form Factor: HHHL, single slot
  • Network Interface: QSFP-DD (1 x 400G)
  • Host Interface: PCIe 5.0 x 16, CXL
  • 2 x 8GB DDR4
Expand Close
Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 7 FPGAs and SoC FPGAs I-Series
Offering Status Production
Device OPN(s) on Board AGIB023R18A1E1V
Demo No
Form Factor HHHL PCIe
Power PCIe slot
Interfaces PCIe Gen5 x16
Memory DDR4
Connectors 1x QSFP-DD
Switches & LEDs User and status LEDs
Latest Quartus Version Supported 24.3.0

PCIe FPGA card

Documentation (Getting started, hardware, FPGA developer, and BMC guides)

BittWare SDK including PCIe driver, libraries, and board monitoring utilities

Reference design and examples
