DCAN FDF - Configurable CAN Bus Controller with Flexible Data-Rate

DCD-SEMI

Select

DCAN FD FULL IP Core is a missing gap between CAN FD and CAN XL. It is called “CPU friendly” because it efficiently relieves it through configurable registers and few additional innovations.

DCD’s DCAN FD FULL IP Core is a versatile and adaptable solution for incorporating Controller Area Network (CAN) functionality into various systems. This IP module can be implemented independently, as part of an ASIC, or on an FPGA. It adheres to the ISO11898-1:2015 standard, enabling seamless communication in accordance with popular industry protocols.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • developed as ISO26262-10 Safety Element out of Context
  • Designed in accordance with ISO 11898‐1:2015 specification
  • Supports CAN and CAN FD frames
  • Supports up to 64 bytes of data frame
  • Flexible data rates supported
  • AUTOSAR support
  • SAE J1939 support
  • Simple 8/16/32‐bit CPU slave interface
  • Data rate up to 8Mbps
  • Up to 128 Base ID filters
  • Up to 64 Extended ID filters
  • 2 Configurable receive FIFO
Expand Close

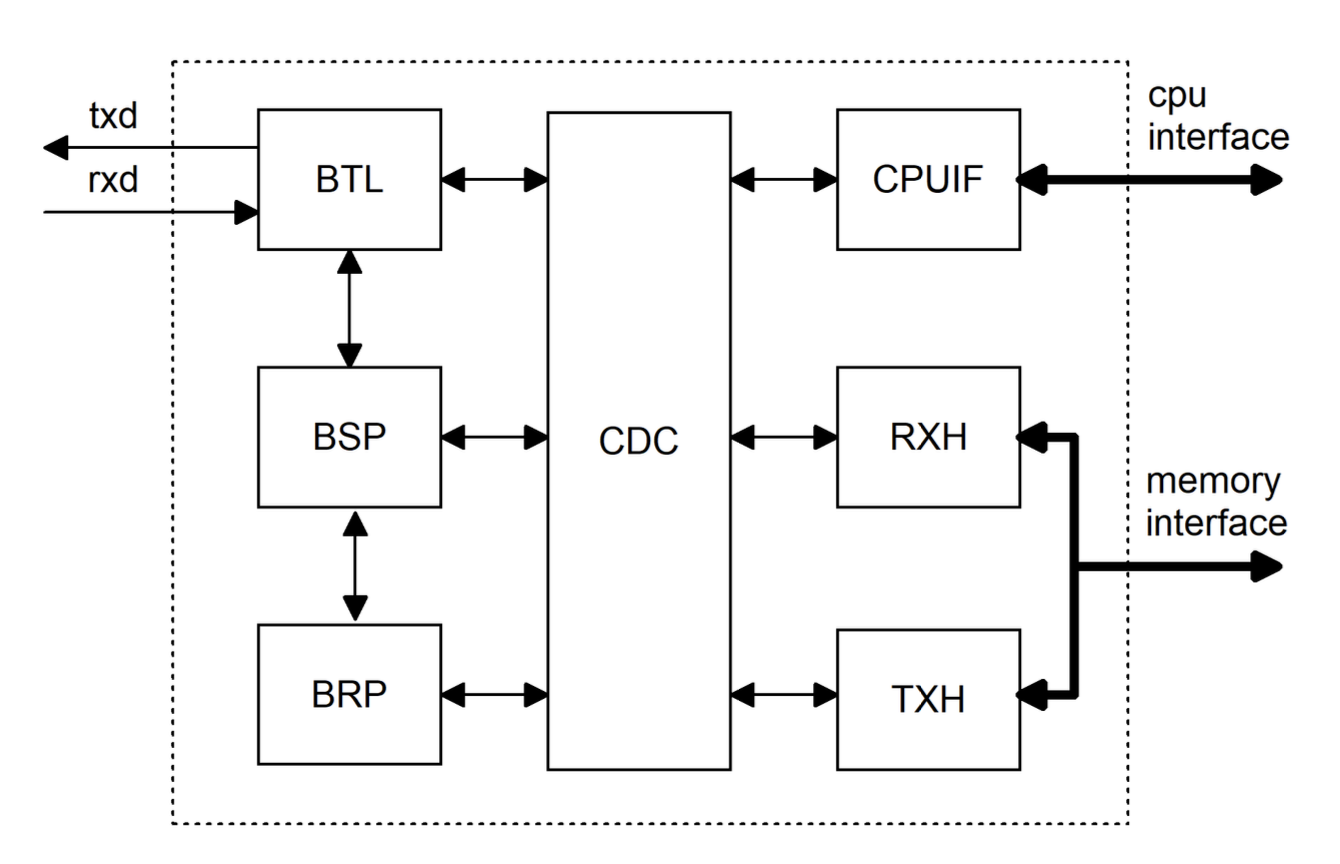

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Arria® 10 SX SoC FPGA, Cyclone® III FPGA, Cyclone® IV GX FPGA, Agilex® 5 FPGAs and SoC FPGAs E-Series, MAX® 10 FPGA, Cyclone® V SX SoC FPGA, Arria® V GZ FPGA, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, MAX® V CPLD, Agilex® 7 FPGAs and SoC FPGAs I-Series, Arria® V SX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 SX SoC FPGA, Agilex® 7 FPGAs and SoC FPGAs M-Series, Cyclone® V GT FPGA, Arria® 10 GT FPGA, Arria® V ST SoC FPGA, Arria® 10 GX FPGA, Stratix® 10 TX FPGA, Cyclone® V SE SoC FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Arria® V GX FPGA, Cyclone® V E FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Cyclone® V GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA, Cyclone® V ST SoC FPGA, Agilex® 5 FPGAs and SoC FPGAs D-Series, Stratix® 10 GX FPGA, Arria® V GT FPGA, Cyclone® 10 LP FPGA, Agilex® 7 FPGAs and SoC FPGAs F-Series, Cyclone® 10 GX FPGA, Stratix® 10 AX SoC FPGA, Cyclone® IV E FPGA, Stratix® III FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Demo No
Compliance No
Latest Quartus Version Supported 25.1.1
Development Language Encrypted Verilog, Verilog

HDL Source Code

Testbench environment - automatic simulation macros, tests with reference responses

Synthesis scripts

Technical documentation

12 months of technical support

Ordering Information

DCAN FDF

from Direct

Order Now

Documentation & Resources

design hub icon Datasheet
