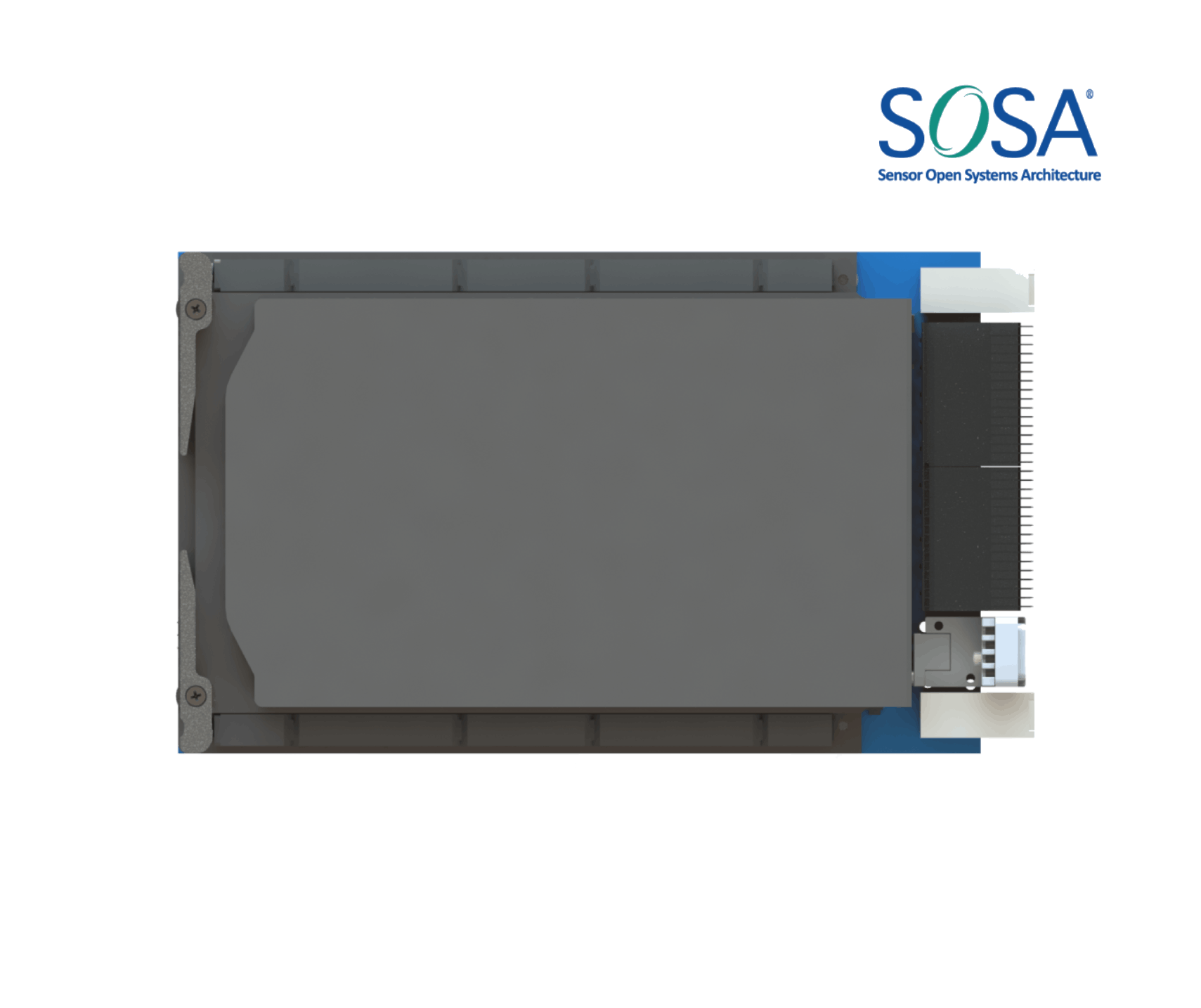

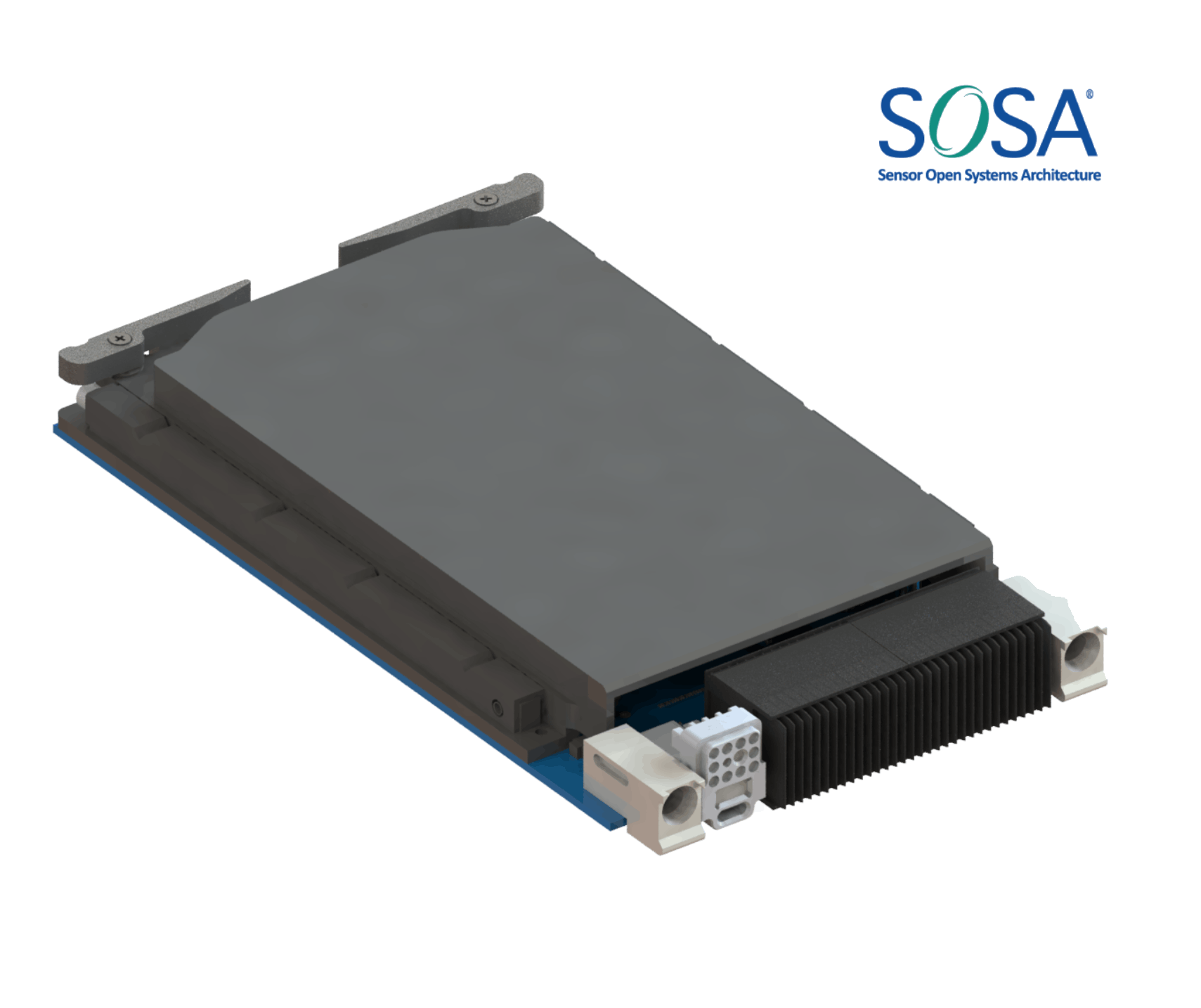

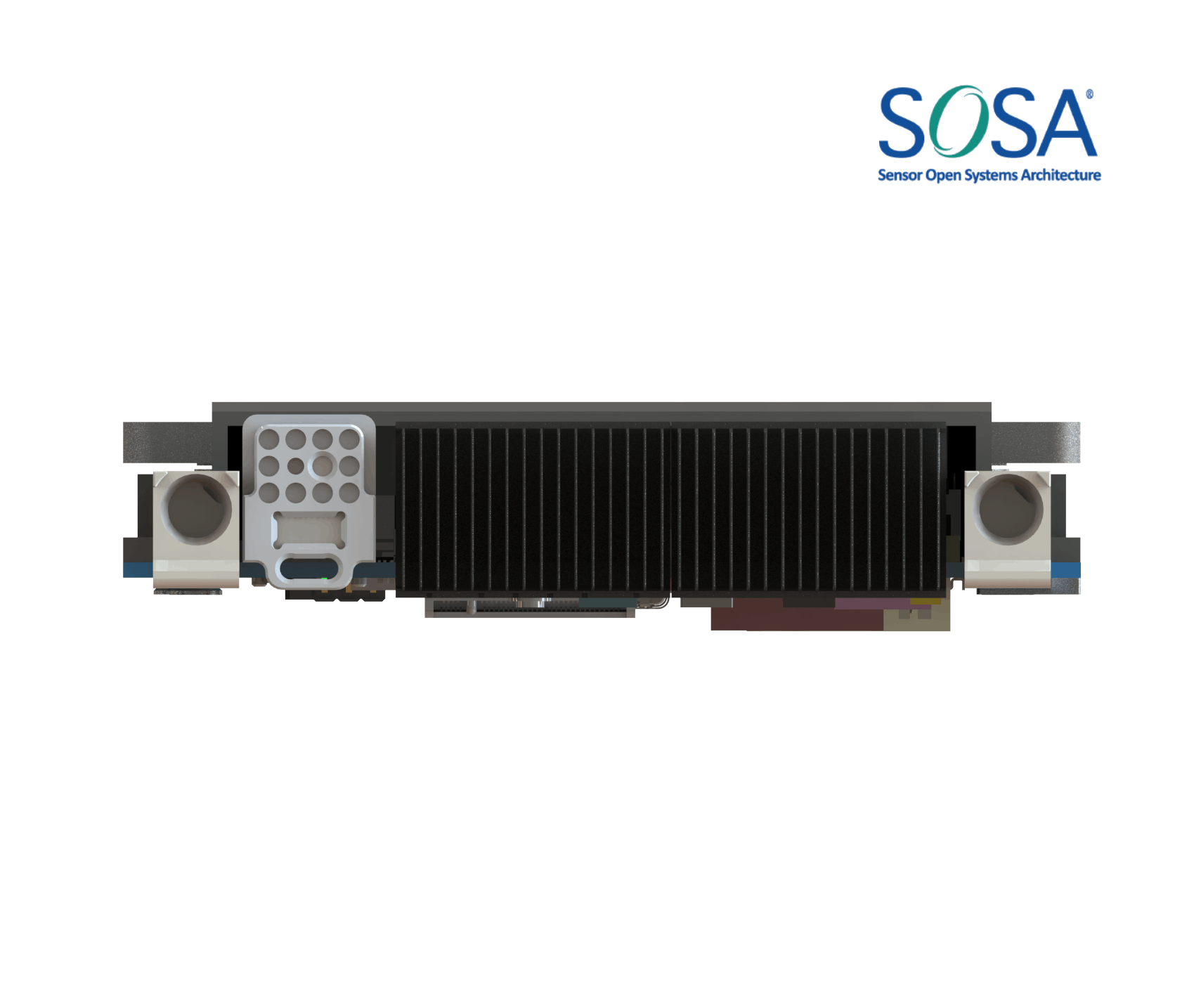

"The Agilex™ 7 SOSA-aligned 3U-VPX Plug-in Module is a rugged, high-performance compute solution engineered for aerospace and defense applications such as radar, sensor processing, and electronic warfare. Powered by the Altera Agilex™ 7 R24C SoC FPGA, the module integrates a quad-core 64-bit ARM Cortex-A53 processor running up to 1.50 GHz and up to 2.7 M logic elements, enabling real-time processing for mission-critical workloads.
Designed to meet SOSA standards, this 3U-VPX module offers 8GB DDR4 ECC for both HPS and FPGA, dual 144Mb QDR-IV for high-speed buffering, along with expandable 32GB eMMC, 1Gb QSPI flash, and onboard EEPROM.
Front panel connectivity includes USB2.0 via USB Type-C, Debug UART, and 1G Ethernet. The backplane supports 40G/10G Ethernet and PCIe Gen3 x8 for high-bandwidth data transfer. Additional interfaces include multiple SDI IN/OUT paths and up to eight fiber optic links delivering up to 28.125 Gbps via Firefly connectors.
Built in the 3U-VPX form factor (160mm × 100mm), the module incorporates advanced system management with temperature sensing, clock synthesizers, and voltage monitoring for rugged embedded deployment."
