GTS PCIe Hard IP

Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets

Altera

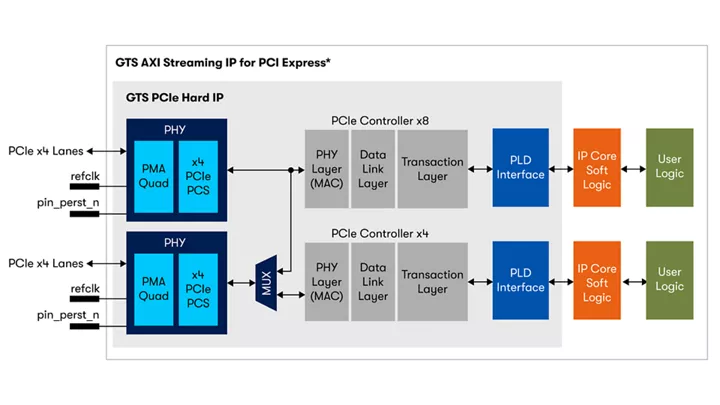

Agilex™ 5 FPGAs and SoC FPGAs are monolithic designs with integrated high-speed transceivers (GTS) and hardened PCIe controller IP supporting up to PCIe 4.0 x4 (E-Series) and PCIe 4.0 x8 (D-Series) configurations for Root Port (RP), Endpoint (EP), and Transaction Layer (TL) bypass modes.

Agilex™ 3 FPGAs and SoC FPGAs are monolithic designs with integrated high-speed transceivers (GTS) and hardened PCIe controller IP supporting up to PCIe 3.0 x4 configurations for Root Port and Endpoint modes.

Contact Now

Contact Altera

LeadSource

ASAP Account ID

Record Type Name

Key Features

Complete PCIe Protocol Stack in Hard IP – Full implementation of Transaction, Data Link, and Physical Layers.
Broad PCIe Version Support – Agilex 5: PCIe 4.0/3.0 (x8/x4/x2/x1) and Agilex 3: PCIe 3.0 (x4/x2/x1), with seamless down-training to PCIe 2.0/1.0.
Flexible Port & Mode Options – Root Port, Endpoint, and Transaction Layer (TL) Bypass modes for optional 3rd-party switch IP integration.
Versatile Application Interfaces – AXI4-Stream for data: AXI4-Stream Source/Sink, and AXI-Lite for control and status.
High Performance Data Handling – Up to 512B Maximum Payload Size (MPS), 4KB Maximum Read Request Size (MRRS), and support for Atomic operations (Fetch/Add/Swap/CAS).
Scalable Tag & Transaction Support – Up to 512 outstanding tags on x8 controller (Agilex 5 FPGA) and up to 256 outstanding tags on x4 controller (Agilex 5 and Agilex 3 FPGAs).
Advanced Virtualization – SR-IOV (4 PFs, 256 VFs), Function Level Reset (FLR), and VirtIO for software-based virtualization.
Comprehensive Clocking and Efficiency Controls – Supports multiple clocking modes (Spread Spectrum: SRIS, SRNS supported), Precision Time Management (PTM), and power states (D0/D3).
Enhanced Reliability & Debug – Advanced Error Reporting, Design Tool Kit (DTK), and SpyGlass CDC analysis tool.
Comprehensive Software Support – Ready-to-use Linux device drivers for faster deployment.

Offering Brief

Device Family	Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series
Offering Status	Production
Integrated Testbench	Yes
Evaluation License	Yes
Design Examples Available	Yes
Demo	No
Compliance	Yes
Compliance Link	Compliance Link
Development Language	Encrypted Verilog
