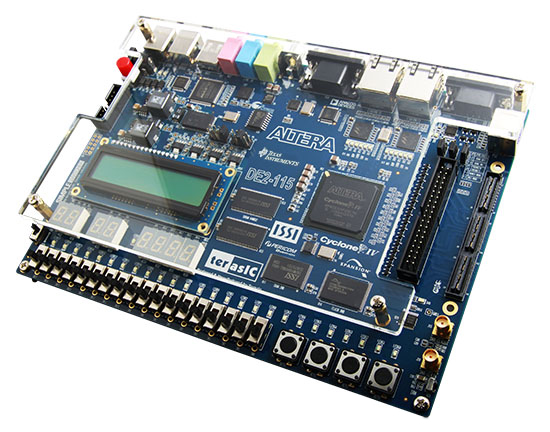

DE2-115 FPGA Development and Education Kit

Terasic Inc.

Select

The DE2-115 adopts similar features from the earlier DE2 series primarily the DE2-70, as well as additional interfaces to support mainstream protocols including Gigabit Ethernet (GbE). A High-Speed Mezzanine Card (HSMC) connector is provided to support additional functionality and connectivity via HSMC daughter cards and cables.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

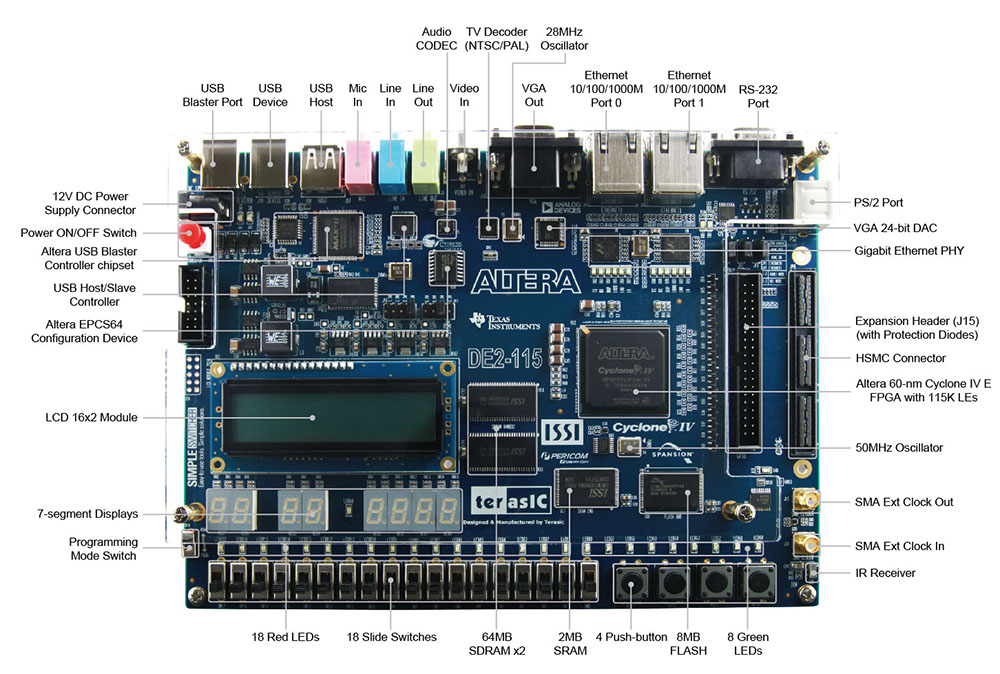

Key Features

  • Altera Cyclone IV E FPGA (EP4CE115) with 114,480 logic elements
  • 8 MB SDRAM, 2 MB SRAM, 64 MB Flash memory
  • High-Speed Mezzanine Card (HSMC) connector for expansion
  • Rich multimedia I/O: VGA output, TV decoder, audio codec
  • Two 40-pin GPIO expansion headers
Expand Close
Keyfeatures main image

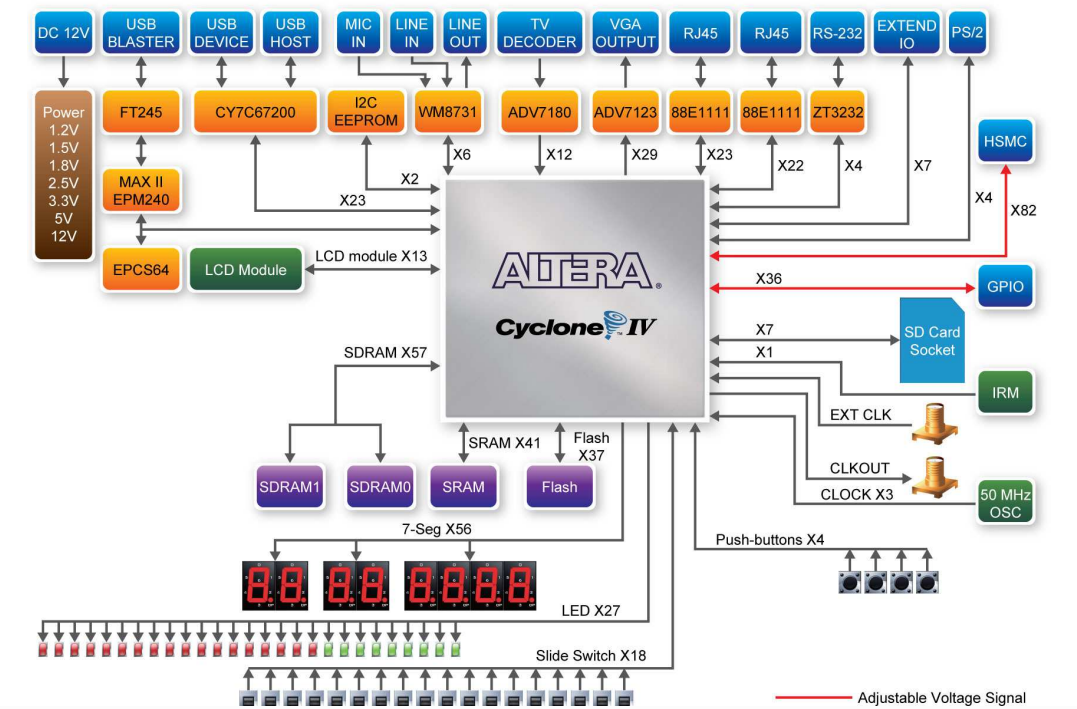

Offering Brief

Offering Brief

Device Family Cyclone® IV E FPGA
Offering Status Production
Device OPN(s) on Board EP4CE115F29C7N
Form Factor 69x100mm
Power 9V
Interfaces 24-bit CODEC, VGA, UART, 16x2 LCD module, Gigabit Ethernet x2, USB Type A and B, PS/2, TV-in
Memory 128MB SDRAM, 8MB Flash, 2MB SRAM, 32Kbit EEPROM, SD Card Socket
Connectors HSMC, 40-pin GPIO
Switches & LEDs Reset Button, Power Button, Power LED, User-Programmable LEDs, Switch and Button
Latest Quartus Version Supported 12.1.0

Document

System CD

Ordering Information

P0059

from Direct

$748.00

Order Now

Documentation & Resources

design hub icon DE2-115 User Manual
