H264-E-BPF - Ultra-fast, AVC/H.264 Baseline Profile Encoder

Computer Aided Software Technologies, Inc (dba CAST)

Member

Despite being small, the H264-E-BPF produces high-quality video, especially at low bit rates, and is suitable for systems with low latency requirements. It uses constant quantization to output video streams of Variable Bit-Rate (VBR), or automatically regulates quantization multiple times within a frame to output Constant Bit-Rate (CBR) streams. In CBR mode it responds rapidly to temporal or spatial changes in the video content. This can be combined with an artifacts-free Intra-Refresh coding implementation to effectively eliminate bit rate peaks, while preserving the periodic intra-coded references. As a result, the stream buffers can be smaller than those typically required, and the end-to-end latency can be brought down to frame or sub-frame levels. Video quality at low bit rates is preserved, as the encoder intelligently uses block-skipping and quantization coefficient thresholding to reduce bit rate with minimal quality loss and uses the in-loop deblockin...

Despite being small, the H264-E-BPF produces high-quality video, especially at low bit rates, and is suitable for systems with low latency requirements. It uses constant quantization to output video streams of Variable Bit-Rate (VBR), or automatically regulates quantization multiple times within a frame to output Constant Bit-Rate (CBR) streams. In CBR mode it responds rapidly to temporal or spatial changes in the video content. This can be combined with an artifacts-free Intra-Refresh coding implementation to effectively eliminate bit rate peaks, while preserving the periodic intra-coded references. As a result, the stream buffers can be smaller than those typically required, and the end-to-end latency can be brought down to frame or sub-frame levels. Video quality at low bit rates is preserved, as the encoder intelligently uses block-skipping and quantization coefficient thresholding to reduce bit rate with minimal quality loss and uses the in-loop deblocking filter to eliminate the blocking artifact.

Key Features

  • Supports H.264 Constrained Baseline Profile, Interlaced, Output Annex B NAL
  • Constant Bit-Rate output
  • Advanced rate control
  • Intra-Refresh, artifacts-free
  • Block skipping and deblocking filter
  • No CPU overhead, stand-alone operation
Expand Close

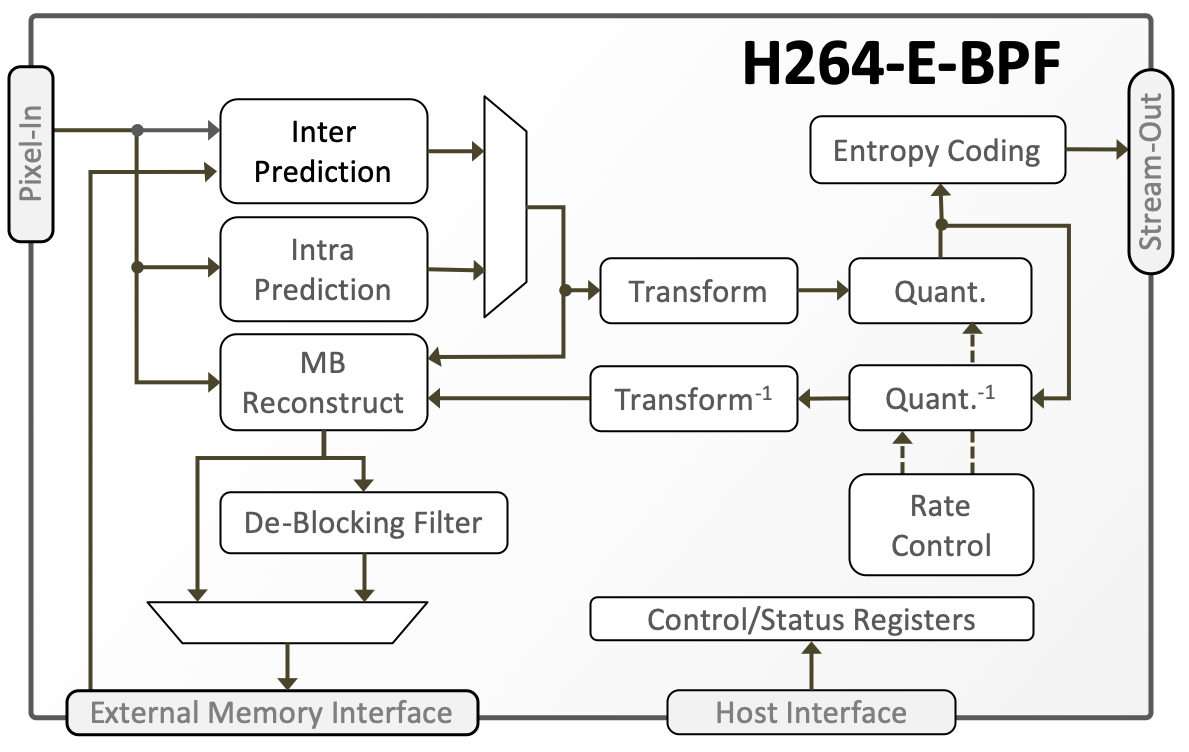

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Compliance Yes
Latest Quartus Version Supported 24.3.1
Development Language Encrypted Verilog, Encrypted VHDL, Verilog, VHDL

Self-checking testbench

Synthesis scripts

Simulation script, vectors and expected results

Software (C++) Bit-Accurate model and test vector generator

Comprehensive user documentation
