AES-GCM: Authenticated Encrypt/Decrypt Engine

Computer Aided Software Technologies, Inc (dba CAST)

Member

The AES-GCM encryption IP core implements Rijndael encoding and decoding in compliance with the NIST Advanced Encryption Standard. It processes 128-bit blocks, and is programmable for 128-, 192-, and 256-bit key lengths.

Four architectural versions are available to suit system requirements. The Standard version (AES-GCM-S) is more compact, using a 32-bit datapath and requiring 44/52/60 clock cycles for each data block (128/192/256-bit cipher key, respectively). The Fast version (AES-GCM-F) achieves higher throughput using a 128-bit datapath and requiring 11/13/15 clock cycles for each data block depending on key size.

For applications where throughput is critical there are two additional versions. The High Throughput AES-GCM-X can process 128 bits/cycle and the Higher Throughput AES-GCM-X2 can process 256 bits/cycle respectively independent of the key size.

GCM stands for Galois Counter. GCM is a generic authenticate-and-encrypt block cipher ...

The AES-GCM encryption IP core implements Rijndael encoding and decoding in compliance with the NIST Advanced Encryption Standard. It processes 128-bit blocks, and is programmable for 128-, 192-, and 256-bit key lengths.

Four architectural versions are available to suit system requirements. The Standard version (AES-GCM-S) is more compact, using a 32-bit datapath and requiring 44/52/60 clock cycles for each data block (128/192/256-bit cipher key, respectively). The Fast version (AES-GCM-F) achieves higher throughput using a 128-bit datapath and requiring 11/13/15 clock cycles for each data block depending on key size.

For applications where throughput is critical there are two additional versions. The High Throughput AES-GCM-X can process 128 bits/cycle and the Higher Throughput AES-GCM-X2 can process 256 bits/cycle respectively independent of the key size.

GCM stands for Galois Counter. GCM is a generic authenticate-and-encrypt block cipher mode. A Galois Field (GF) multiplier/accumulator is utilized to generate an authentication tag while CTR (Counter) mode is used to encrypt.

View Partner Website Right arrow Right arrow Partner Product Page Right arrow Right arrow Contact Now

Key Features

  • The NIST-validated core operates using the AES Rijndael Block Cipher Algorithm, being implemented according to the NIST Special Publication 800-38D.
  • It processes 128-bit data in 32-bit blocks, employing user-programmable key size of 128, 192, or 256 bits and supporting any size IV length.
  • Easily integrated, supporting pre- or on-the-fly expanded keys, fully synchronous & single-clock, can be bridged to AMBA buses or integrated with DMA.
  • Available in VHDL or Verilog source code format, or as a targeted FPGA.
Expand Close

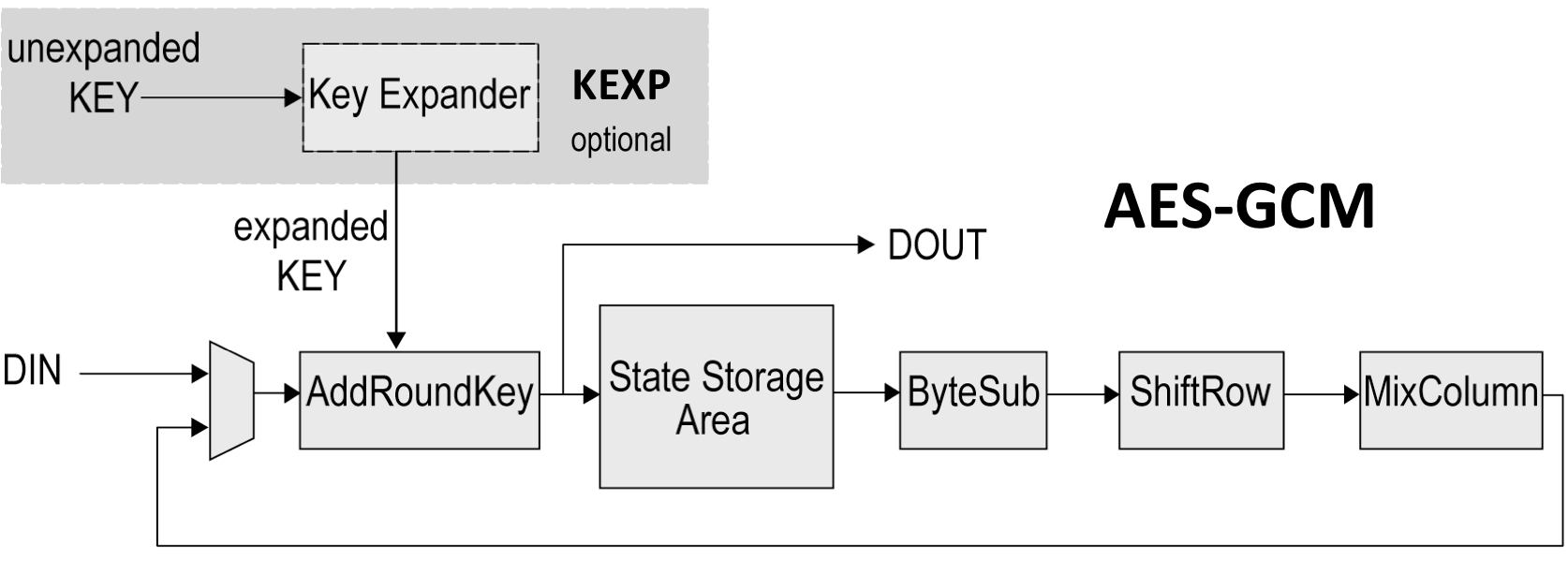

Keyfeatures main image

Offering Brief

Offering Brief

Device Family Agilex® 3 FPGA C-Series, Agilex® 5 FPGA D-Series, Agilex® 5 FPGA E-Series, Agilex® 7 FPGA F-Series, Agilex® 7 FPGA I-Series, Agilex® 7 FPGA M-Series, Agilex® 9 FPGA Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX FPGA, Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST FPGA, Arria® V SX FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE FPGA, Cyclone® V ST FPGA, Cyclone® V SX FPGA, MAX® 10 FPGA, Stratix® 10 AX FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA
Offering Status Production
Integrated Testbench Yes
Evaluation License Yes
Design Examples Available Yes
Compliance Yes
Latest Quartus Version Supported 24.3.1
Development Language Encrypted Verilog, Encrypted VHDL, Verilog, VHDL

Verilog/System Verilog, Encrypted Verilog/System Verilog, VHDL, Encrypted VHDL, or FPGA netlist

System Verilog testbench

Comprehensive documentation

Sample synthesis and simulation scripts

Software model

Ordering Information

AES-GCM

from Direct

Get Pricing and Availability
