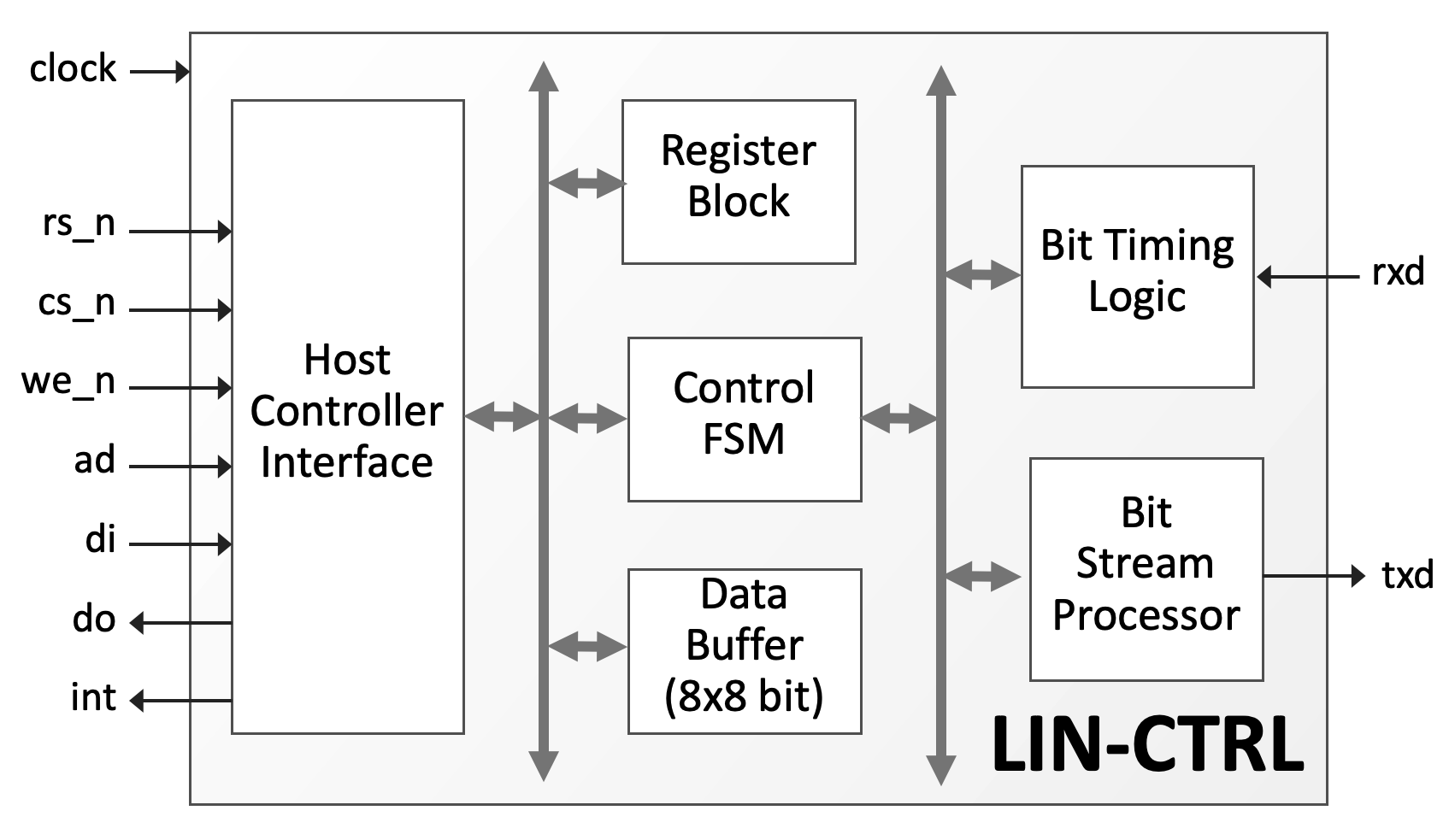

LIN: LIN Bus Master/Slave Controller Overview Key Features Offering Brief What's Included Ordering Information Documentation & Resources Markets Computer Aided Software Technologies, Inc (dba CAST) Member The LIN-CTRL core is a communication controller that transmits and receives complete LIN frames to perform serial communication according to the LIN Protocol Specification. It can be configured before the synthesis to operate as a master, slave or include both profiles. When configured with both – master and slave, then at run-time, the LIN-CTRL can operate either as a master or as a slave and supports versions 1.3, 2.0, 2.1, and 2.2 of the LIN protocol. The message transfers can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus. The LIN-CTRL core is a microcode-free design developed for reuse in ASIC and FPGA implementations. The scan-ready design is strictly synchronous with positive-edge clocking and no internal tri-states. The robustly verified core has been production-proven multiple times. The LIN controller core is available in two versions: Standard, and Safety-Enhanced. The Safety-Enhanced ... The LIN-CTRL core is a communication controller that transmits and receives complete LIN frames to perform serial communication according to the LIN Protocol Specification. It can be configured before the synthesis to operate as a master, slave or include both profiles. When configured with both – master and slave, then at run-time, the LIN-CTRL can operate either as a master or as a slave and supports versions 1.3, 2.0, 2.1, and 2.2 of the LIN protocol. The message transfers can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus. The LIN-CTRL core is a microcode-free design developed for reuse in ASIC and FPGA implementations. The scan-ready design is strictly synchronous with positive-edge clocking and no internal tri-states. The robustly verified core has been production-proven multiple times. The LIN controller core is available in two versions: Standard, and Safety-Enhanced. The Safety-Enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The Safety-Enhanced versions are certified as ISO-26262 ASIL-D Ready. + Read More - Read Less View Partner Website Partner Product Page Contact Now Contact Computer Aided Software Technologies, Inc (dba CAST) X You must have JavaScript enabled to use this form. ProfessionCIO (Chief Information Officer)CISO (Chief Information Security Officer)COO (Chief Operating Officer)CTO (Chief Technology Officer)ConsultantData SciencesEducatorFPGA EngineeringFacilities/Audio VideoFinance/ProcurementHardware Development/EngineeringHobbyist/MakerIT Generalist/Other ITIT Information SecurityIT ManagementIT StorageIT User Devices - PCs tablets etcInfrastructure/Datacenter ArchitectureLine of Business or Service HeadMarketingNetwork Architecture/EngineeringOperations EngineerOtherOwner/Executive ManagementPress AnalystSalesScientist/ResearcherSoftware/Application Development/EngineeringSolution/System ArchitectureStudent Country/Region CodeAfghanistanAland IslandsAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua/BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBonaireBosnia-Herz.BotswanaBouvet IslandsBrazilBrit.Ind.Oc.TerBrit.Virgin Is.BruneiBulgariaBurkina FasoBurundiC Africa RpblicCambodiaCameroonCanadaCape VerdeCayman IslandsChadChileChinaChristmas IslndCocos IslandsColombiaComorosCongoCooks IslandsCosta RicaCote d'IvoireCroatiaCubaCuracaoCyprusCzechiaDem. Rep. CongoDenmarkDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslndsFaroe IslandsFijiFinlandFranceFrench GuianaFrench Poly.French S. Terr.GabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard/McDon.IslHondurasHong KongHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKuwaitKyrgyzstanLaosLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacao SAR ChinaMacedoniaMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslndsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMinor Outl.Isl.MoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmarN.Mariana IslndNamibiaNauruNepalNetherlandsNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandsNorth KoreaNorwayOmanPakistanPalauPalestine, StatePanamaPap. New GuineaParaguayPeruPhilippinesPitcairnPolandPortugalPuerto RicoQatarReunionRomaniaRussian FedRwandaS. Sandwich InsS.TomePrincipeSaint HelenaSaint LuciaSaint MartinSaint PierreSamoaSan MarinoSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth KoreaSouth SudanSpainSri LankaSt Kitts&NevisSt. BarthelemySt. VincentSudanSurinameSvalbard & JMSwedenSwitzerlandSyriaTaiwanTajikistanTanzaniaThailandTimor-LesteTogoTokelauTongaTrinidadTobagoTunisiaTurkeyTurkmenistanTurksh CaicosinTuvaluUgandaUkraineUnited KingdomUnited StatesUruguayUtd.Arab Emir.UzbekistanVanuatuVatican CityVenezuelaVietnamVirgin IslandsWallis & FutunaWestern SaharaYemenZambiaZimbabwe By submitting this inquiry form, you acknowledge that your contact information will be sent to Altera or the Altera Solutions Acceleration for follow-up. Opt-in to Marketing Communications from Altera. LeadSource - None -Market Place ASAP Account ID Record Type Name Leave this field blank Key Features LIN Ctrl 1.3, 2.0, 2.1, and 2.2A LIN standards Operates as master, slave or both (defined at run-time) Data rate: 1 Kbit/s and 20 Kbit/s (for master) Integration 8-bit interface with APB and AHB wrappers Fully synchronous design Production-proven IP Core Synthesizes to approximate 4,400 to 5,900 gates Safety Enhanced Version (optional) ISO-26262 ASIL-D Ready Implements ECC for SRAM and redundancy – DMR or TMR, including optional lockstep operation Offering Brief Offering Brief Device Family Arria® V GT FPGA, Arria® V GX FPGA, Arria® V GZ FPGA, Arria® V ST SoC FPGA, Arria® V SX SoC FPGA, Cyclone® IV E FPGA, Cyclone® IV GX FPGA, Cyclone® V E FPGA, Cyclone® V GT FPGA, Cyclone® V GX FPGA, Cyclone® V SE SoC FPGA, Cyclone® V ST SoC FPGA, Cyclone® V SX SoC FPGA, Agilex® 3 FPGAs and SoC FPGAs C-Series, Agilex® 5 FPGAs and SoC FPGAs D-Series, Agilex® 5 FPGAs and SoC FPGAs E-Series, Agilex® 7 FPGAs and SoC FPGAs F-Series, Agilex® 7 FPGAs and SoC FPGAs I-Series, Agilex® 7 FPGAs and SoC FPGAs M-Series, Agilex® 9 FPGAs and SoC FPGAs Direct RF-Series, Arria® 10 GT FPGA, Arria® 10 GX FPGA, Arria® 10 SX SoC FPGA, Cyclone® 10 GX FPGA, Cyclone® 10 LP FPGA, MAX® 10 FPGA, Stratix® 10 AX SoC FPGA, Stratix® 10 DX FPGA, Stratix® 10 GX FPGA, Stratix® 10 SX SoC FPGA, Stratix® 10 TX FPGA, Stratix® III FPGA, Stratix® IV E FPGA, Stratix® IV GX FPGA, Stratix® V GS FPGA, Stratix® V GX FPGA Offering Status Production Integrated Testbench Yes Evaluation License Yes Design Examples Available Yes Demo No Compliance Yes Latest Quartus Version Supported 24.3.1 Development Language Encrypted Verilog, Verilog What’s Included? Verilog/System Verilog, Encrypted Verilog/System Verilog, or FPGA netlist Sample integration testbench System Verilog testbench Comprehensive documentation Sample synthesis and simulation scripts Bare Metal Driver (on request and extra cost) IPxact register models Ordering Information LIN-CTRL from Direct Documentation & Resources LIN Datasheet Market Segment and Sub-Segments Industrial View Sub-Segments Industrial Energy Industrial / Manufacturing Robotics Vision Back to Market Image Test View Sub-Segments Test ATE Communication Tester Other Test RF Instrumentation Back to Market Transportation View Sub-Segments Transportation Automotive (Passenger Vehicles) Non-Automotive Transportation Transportation Infrastructure (non-charging) Back to Market Offering Types and Sub-Types Intellectual Property (IP) Interfaces Communication
